Disassembling The Teac DC-D2831

Geschrieben von: Jake Hamilton
  • Kommentare: 2
Disassembling The Teac DC-D2831

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

This will walk you through the steps necessary to access crucial parts inside the player, to make adjustments or repairs. Electronics are delicate, so be sure to take caution when making modifications and during reassembly. Needlenose pliers are a must for removing the snap ring!

  1. vUAuHjjVrJLf1Eky

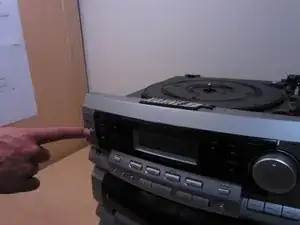

    • Make sure the device is turned off and unplugged. This will eliminate the danger of getting electrocuted while repairing the device.

  2. CcBISmOvJfdMyYkP
    CcBISmOvJfdMyYkP
    MTeiGZ625LF4GUYd

    • Lift the lid to get to the turntable.

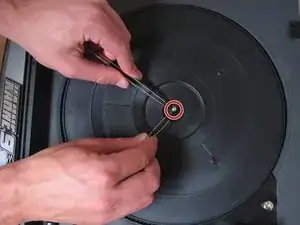

    • Using the appropriate tools (needle-nose pliers, tweezers, screwdriver, etc.), remove the snap ring from the center of the turntable. The snap-ring is the small metal ring around the axel of the turntable.

    • The snap-ring is hard to remove so be patient and don't be afraid to use some force.

    • Feel free to use whatever tool(s) that will remove the snap-ring. The above list of tools are just a suggestions.

  3. KEBQho2yqbN63Fwa
    KEBQho2yqbN63Fwa
    UbTaLPLCkiDoxIO2

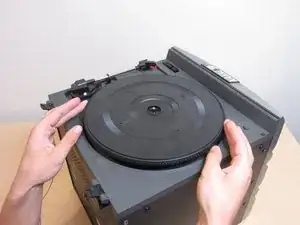

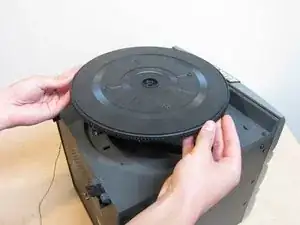

    • Once the snap ring is removed, gently lift the turntable from the rest of the device.

    • If the device has a faulty belt, see the belt repair guide here: Belt Repair Guide

    • If it does not, continue with the disassembly.

  4. WqrY5DdBxtsOZUlb

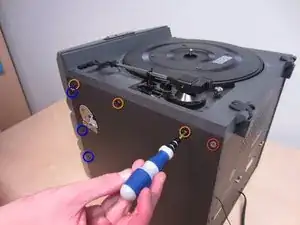

    • Remove the screws on the side of the device using a Phillips 2 screwdriver.

    • When removing the screws, take note of which screws go where.

    • 27.0mm

    • 19.8mm

    • 12.0mm

  5. f5PB4d16RsKJwhbX
    f5PB4d16RsKJwhbX
    G3AZAcLMgndxYyOy

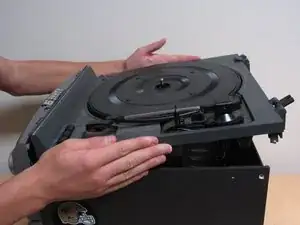

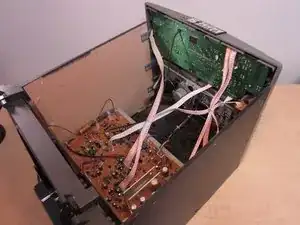

    • Lift the base that the turntable was resting on from the rest of the device.

    • Remove the base slowly so to not sever the connection with the wire attached from the base to the circuit board.

  6. l4u6em6Ms2P21GSq
Abschluss

To reassemble your device, follow these instructions in reverse order.
