Dreamax DMX-ST7A Speaker Replacement

Geschrieben von: Stacey Mattila
  • Kommentare: 0
Dreamax DMX-ST7A Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Replace the speaker via soldering.

  1. NwYg3HqNUH6YYjpD

    • Position the tablet so the ports and screws are facing you.

  2. pLclvkPQYe3r46cj

    • Remove the two 2.5mm screws using the Phillips #00 precision screwdriver.

  3. FWIxYSuwhMBhYA3J
    FWIxYSuwhMBhYA3J
    bTRwjTUnAVCJiNHZ

    • Use the plastic opening tool to assist in removing the back cover.

  4. kmntaWu6ixwyEQZM

    • Upon removing the back cover position the tablet as seen in the picture.

  5. JWFY1NYo6fRWrkMP
    JWFY1NYo6fRWrkMP
    b65QUfcrCqFsuBW5

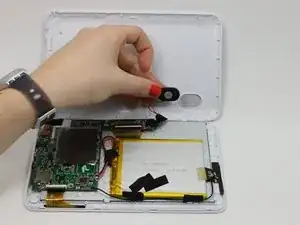

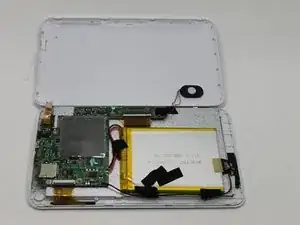

    • Remove the speaker from the back cover.

  6. GrZYlEquFAMDenLJ

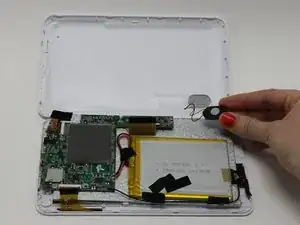

    • Remove the black and red wire from the Motherboard.

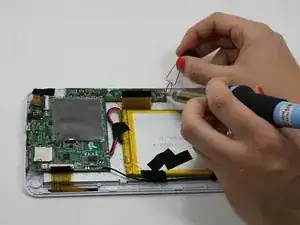

  7. ePp2RqMy2QPnRIqh
Abschluss

To reassemble your device, follow these instructions in reverse order.
