Drill Master Heat Gun Power Switch Replacement

Geschrieben von: Mikayla Kim
  • Kommentare: 0
Drill Master Heat Gun Power Switch Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

35 - 45 Minuten

Einleitung

This requires soldering, so for a quick lesson or just a refresher, check out How to Solder and Desolder Connections.

  1. 43OTbyboK5dhKyAF

    • Be sure the heat gun is unplugged before starting this process.

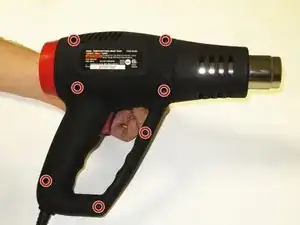

    • Remove the seven 14mm screws from the side of the drill using the PH#0 screwdriver.

    • You will need a screwdriver extension.

  2. Sng3JUgmTFYFvFrA

    • Remove the 8mm screw from underside of barrel using the PH#0 screwdriver.

    • Don't try to open the casing just yet.

  3. GNuNjsdUNorPJZTF
    GNuNjsdUNorPJZTF
    6HJe1SKNjTfNnVOU
    41EUVxaXjGEq4vVb

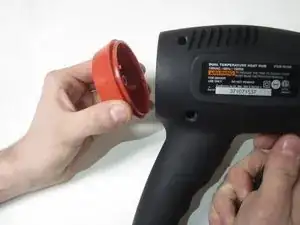

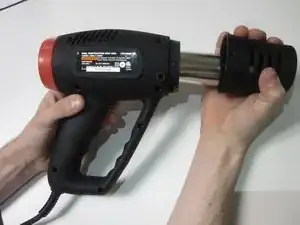

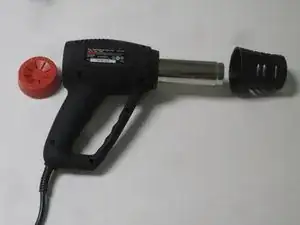

    • Remove the barrel casing on either end by twisting and pulling each side off.

  4. hYtP1lMEkdEpKkTh

    • Remove the top casing to reveal inside of drill. You might have to tug a little harder for this one.

  5. YgCh1GBWtCxi3u2K

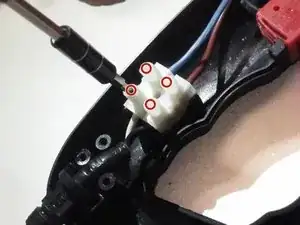

    • Loosen four screws on the wire connector using the flathead 2.5 screwdriver.

    • Screws do not come out of connector.

  6. pSZj1kvcbLgLjHL2

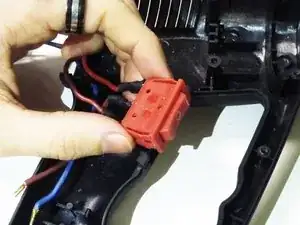

    • Squeeze the tabs on either side of the power switch to remove from the casing.

  7. T1vvqT5CNZH5csjQ
    T1vvqT5CNZH5csjQ
    wyJC5bF3kd33NodD

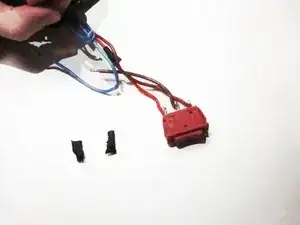

    • Remove the black, plastic wire protectors from the end of the power switch.

  8. ZJhJ1WlyYuTPwqKa

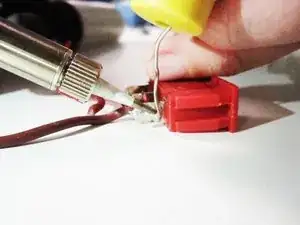

    • Use soldering iron to remove the electrical wiring from the power switch. To replace the power switch, solder the new switch onto the wires.

    • Heating the soldering metal will allow you to pull off the electrical wiring.

    • For a brush-up on proper soldering, check out How to Solder and Desolder Connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
