DualShock 3 Battery Replacement

Geschrieben von: Marcus Aiken
  • Kommentare: 0
DualShock 3 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. XSlREQ2PdoAPVwEt
    XSlREQ2PdoAPVwEt
    1lUYulPSWXZFROre
    LorAY1bRPhXFCqPa

    • This is the Dualshock 3 controller

    • On the back of the controller, there will be five 7.2mm Phillips screws securing the body of the controller. (The five screws are circled in black.)

    • Remove each of the five screws from the back of the DualShock controller.

  2. kYxkfvorgtIljd2H

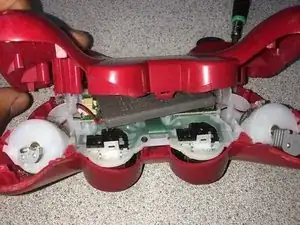

    • Push the center of the rear cover (between the two analog sticks) and carefully lift the lower edge away from the rest of the controller.

  3. 1MMNBf6AZmJl3qlY

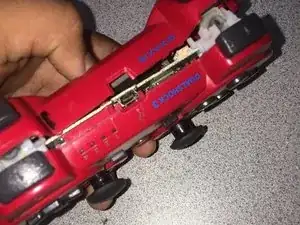

    • Push the rear cover slightly toward the top edge of the controller to clear the front edge of the #2 triggers.

    • Pull the rear cover away from the rest of the controller, but be careful so that you won't pop off the #2 triggers.

    • Here is a DualShock trigger guide on the IFIXIT website in case you need to reattach the #2 triggers.

  4. YhrNV3EsOMBdULUs

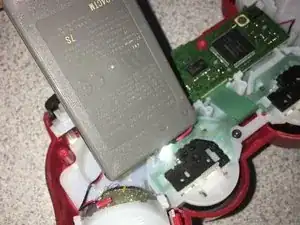

    • Move the battery off the motherboard so you have enough clearance to access the battery connector.

  5. A2aNeOIKiDicDkGJ
    A2aNeOIKiDicDkGJ
    GE6H554MJ4JaUyMe

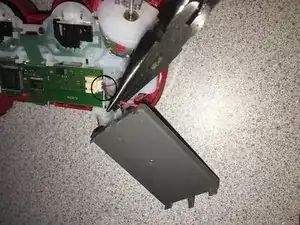

    • Carefully pull the battery connector away from the socket that is attached to the motherboard. ( Battery connector is circled in black.)

    • It may be safer to use a tool like tweezers or pliers to pull the battery connector out of the socket.

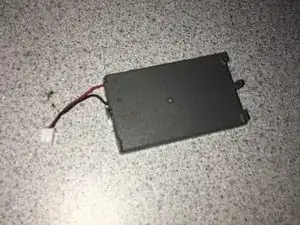

    • Now you can dispose of the old battery safely. For example taking old used batteries to a household hazardous waste facility.

Abschluss

To reassemble your device, follow these instructions in reverse order.
