DualShock 4 Controller Rumble Motors Replacement

Geschrieben von: Pedro Rodriguez
  • Kommentare: 2
DualShock 4 Controller Rumble Motors Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

This guide will show the reader how to remove and replace the rumble motors for a Dualshock 4 controller.

  1. qtRbSepCL3uC1JvE

    • Remove the four 2mm screws on the rear plate using the #000 Phillips screwdriver.

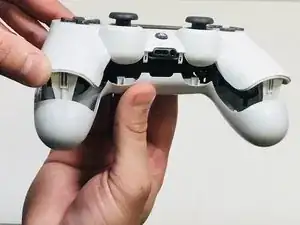

  2. ovdB6ECUjAsC3rdI

    • Remove the rear plate.

    • We recommend using a metal spudger for this step.

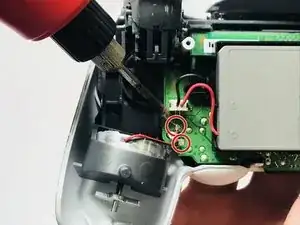

  3. KStS2tMqxxcwHX3A
    KStS2tMqxxcwHX3A

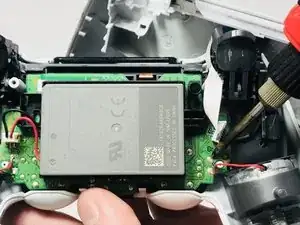

    1FFSZm6NRDuXGAY1

    • Desolder the joints that attach the rumble motors to the motherboard.

    • For more information on soldering, click here.

  4. dFVdpZQgkp3t25Gu
    dFVdpZQgkp3t25Gu

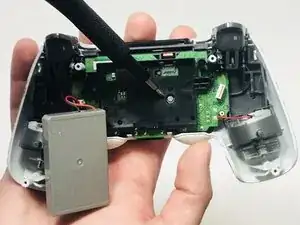

    EYRVVsAyc2a2UqQL

    • There is a hidden screw underneath the battery pack that attaches the faceplate to the motherboard.

    • Lift the pack and remove the 10mm screw using the #000 Phillips screwdriver.

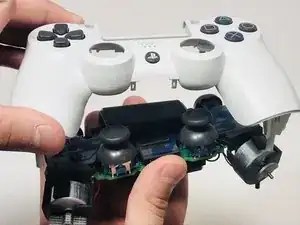

  5. 4GS6hlBVSXyttPxp

    • Remove the faceplate from the motherboard.

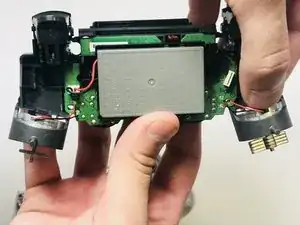

  6. enEl2T1F1ngZgTqq
    enEl2T1F1ngZgTqq

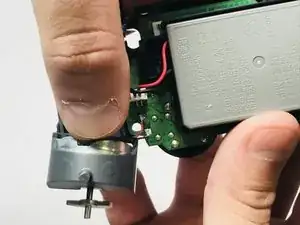

    ynZfnYB3dTCUIxyD

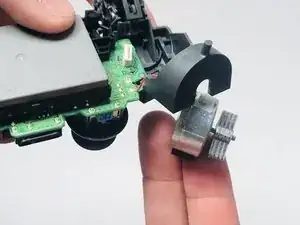

    gKv6OIiTvPv1KSw6

    • With some added pressure, push down and outward in order to free and remove the rumble motors from their socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Pedro Rodriguez

Mitglied seit: 22/02/18

491 Reputation

2 Kommentare

I’d recommend adding removal instructions for the touchpad also

AlexMorse -

the rumble packs are stuck with an adhesive on my controller. The best way to remove the rumble pack in this case? thanks

Ka Erd -
