DualShock 4 Touch Pad, Start, and Options Button Pads Replacement

Check the model number on the back of your controller. This guide was written using model CUH-ZCT1U. If you have another model, the guide procedure and replacement parts may differ slightly.

Use a Phillips screwdriver to remove the four 6.4 mm-long screws securing the rear case.

Use an opening pick to pry each corner of the L1 button from the front case.

Remove the button.

Use your opening pick to pry and remove the R1 button, just as you did for the L1 button.

Insert your opening pick at a downward angle between the front case and rear case, halfway between the handle and the action buttons.

Slide your pick toward the handle and pry up to release the first clip.

Repeat this procedure on the other side of the controller to release the second clip.

Two more clips secure the rear case near the extension port and the headphone jack.

Insert your opening pick between the front case and rear case at either side of the ports.

Twist your pick to unclip this section of the rear case from the front case.

Locate the clips by looking through the gap above the R2 or L2 buttons.

Insert the point of a spudger through the gap above the R2 button and push the retaining clip outward.

While pushing the clip outward, slowly pull the rear case away from the front case until you feel them separate.

Repeat this procedure for the clip near the L2 button.

Press the R2 button and slide the rear case over it.

Press the L2 button and slide the rear case over it.

Flip the rear case over the top of the controller and lay it down, being careful not to strain the interconnect cable.

Use tweezers or your fingers to remove the interconnect cable by pulling its blue pull tab straight out of the socket.

Use tweezers or your fingers to grab and disconnect the head of the battery cable from the motherboard.

Remove the battery.

Grab and remove the reset button extension from its recess in the battery bracket.

Locate the two clips securing the battery bracket to the motherboard.

Insert the point of your spudger into the opening behind the right bracket clip.

Depress the clip to disengage it from the motherboard.

Lift up the right edge of the battery bracket.

Insert the point of your spudger in the opening behind the left bracket clip.

Depress the clip to disengage it from the motherboard.

Remove the battery bracket.

Use the point of your spudger to flip up the locking flap securing the touch pad cable ZIF connector.

Use tweezers or your fingers to disconnect the cable using its blue pull tab.

Use your Phillips screwdriver to remove the 6.4 mm screw securing the motherboard.

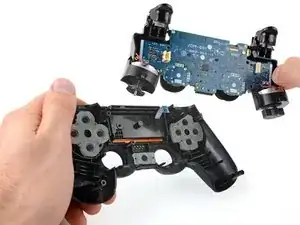

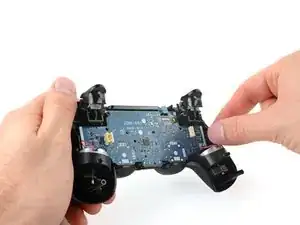

Grab the midframe by its plastic protrusions or the vibration motors and remove it.

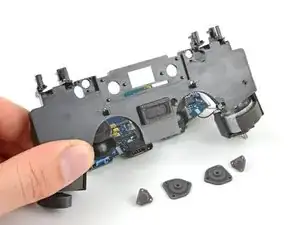

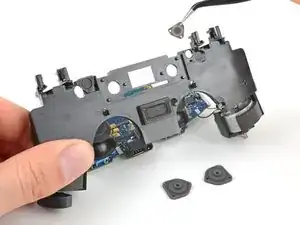

Remove the four button pads from the midframe:

Two pads for the touch pad

Two pads for the Start and Options buttons
