Can't watch your favorite movie? Replacing the optical disc drive may help.

  1. AOhTWncYnf6QNXoL

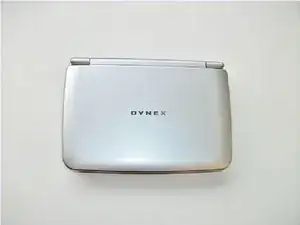

    • Before removing the screen, be sure to turn off and unplug your device.

    • Flip your device over, so the bottom is facing up.

  2. MSJehWILZaoouASy

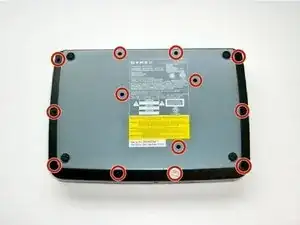

    • Remove the back cover held by thirteen 3.175 mm head, 9.525 mm length pan-head Phillips screws.

    • One of the screws is covered by a seal. Breaking this seal will void your warranty.

  3. BuGfM4F4FEaVphKG
    BuGfM4F4FEaVphKG
    HpCQZQZRYcrplbPu
    G2fkWPjy1AXB3ssA

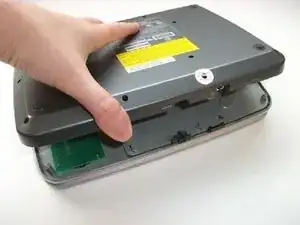

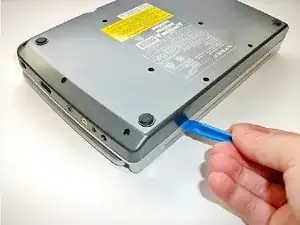

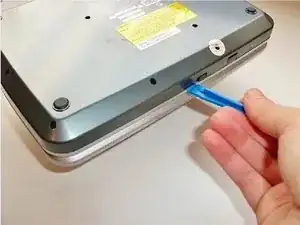

    • Use a plastic opening tool to pop open the back case.

    • Do not separate the back cover completely, wires are still connected to both sides.

  4. KvLkPAwLe2srwOKr
    KvLkPAwLe2srwOKr
    ibixTsQq1dQbAwES

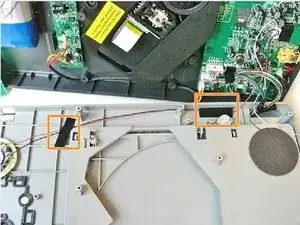

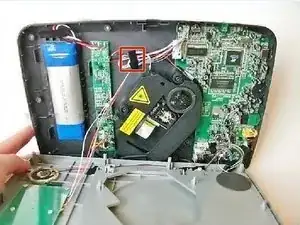

    • Hold the back cover upright and remove the black tape connecting the wire group to the cover.

    • Remove the bottom two pieces of tape connecting wires to the CD tray.

  5. ySyTZhJJkIRpmWvN
    ySyTZhJJkIRpmWvN
    FrMdb6FvYRuvdDyG

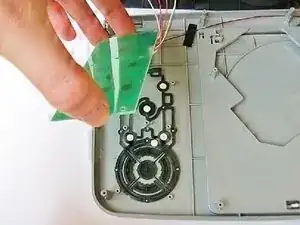

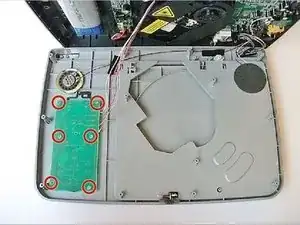

    • Locate the small circuit board on the underside of the buttons.

    • Remove the circuit board for the buttons, held by six 3.175 mm head, 4.762 mm length flat-head Phillips screws.

  6. QsBVwZePOsFPnGcx
    QsBVwZePOsFPnGcx
    QO3cNSXpYAJroLcn
    TIy1eGg16VSLbFYD

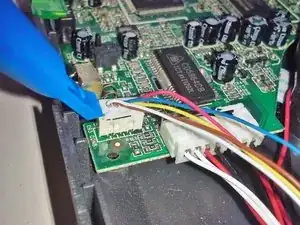

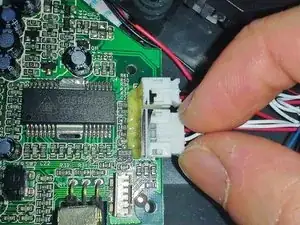

    • Remove the three wire connections that are located on the main (largest) circuit board.

    • The connection can be gently removed with a plastic opening tool or with your fingers by pinching the ends and pulling.

  7. 5oVNYqSgMFV6PuW6
    5oVNYqSgMFV6PuW6
    FdXOtdsfFbJ4o3ZW

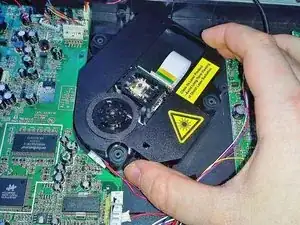

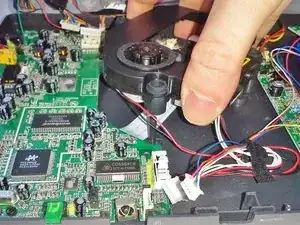

    • Remove the optical disc drive by lifting it off the three pegs on the bottom case.

  8. C4lNC2T35EMXFE1u
    C4lNC2T35EMXFE1u
    RtRHpGco3qsZdty4
    r2jTvrOSgaPDtT2I

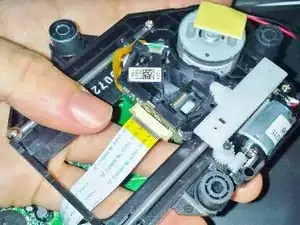

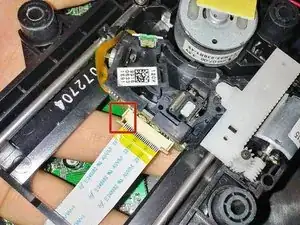

    • Now that the optical drive is removed from the case, flip it over and locate the ribbon cable.

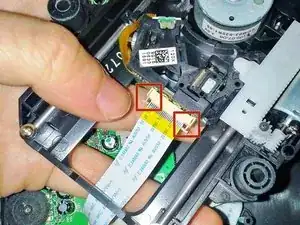

    • Gently pull out the two sides of the brown tab underneath the ribbon cable, see images for detail.

    • Once both sides of the tab are out, it should require no force to pull the ribbon cable out of the connection on the optical drive.

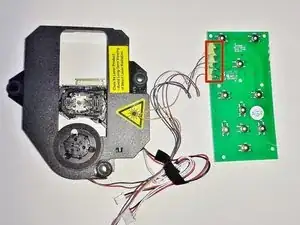

  9. YK1bLuvDRdpZLy6L
    • Now the optical drive should be removed and still connected to the circuit board which was underneath the buttons.

    • Desolder the optical drive wires from the circuit board.

    • If the wires need to be removed from the circuit board, you may need to use an adhesive solvent to fully dissolve the glue.

    • For proper soldering and desoldering techniques reference How To Solder and Desolder Connections.

    • Soldering requires the iron to be at hot temperatures and can cause burns. Wear safety glasses as needed. Be extremely careful with the wires and board in this step as they could melt, burn, or break.

Abschluss

To reassemble your device, follow these instructions in reverse order.
