Echo Chain Saw CS4910 2020 Guide Bar Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Echo Chain Saw CS4910 2020 Guide Bar Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

This is a prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.

Use this guide to replace the guide bar and saw chain in your Echo Chain Saw CS-4910 (2020).

  1. sHrTNbQcpSRFLfSY
    sHrTNbQcpSRFLfSY
    uZjRu4Sj1yeY2rY1

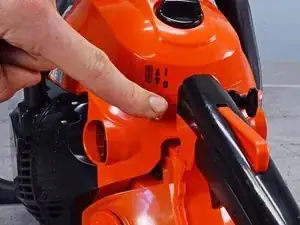

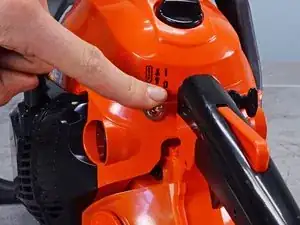

    • Make sure you have the ignition switch turned off before starting your repair.

    • The chainsaw should be cool to the touch before continuing.

  2. W5Wkp4wFAYC5cWNl
    W5Wkp4wFAYC5cWNl
    6VQqdDTDnGraLTUH

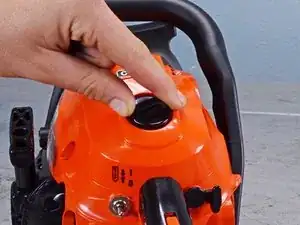

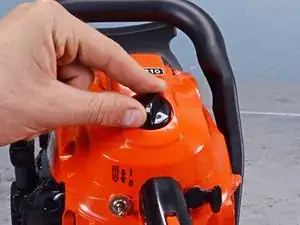

    • Use your fingers to loosen the air filter cover knob.

  3. 1QWdgTPYQf1Dqdto
    1QWdgTPYQf1Dqdto
    tvb5HNaby6XQSnAs
    aTnSOSqCAWlTisu5

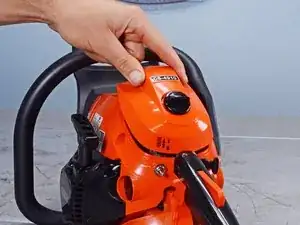

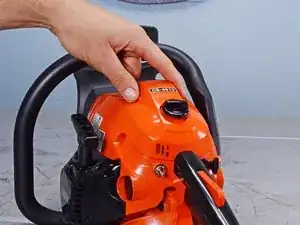

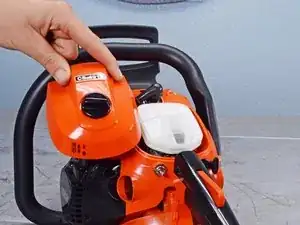

    • Remove the air filter cover.

  4. qiRsRmSGbLEkBBlt
    qiRsRmSGbLEkBBlt
    UrSIYg4em2EKpDbQ
    SDhPn23j1jB35Wha

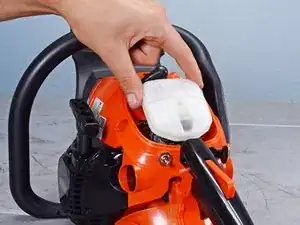

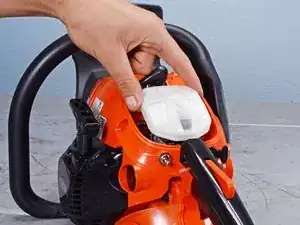

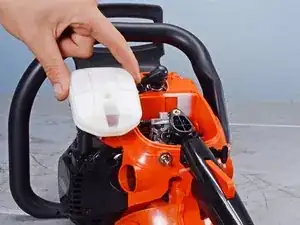

    • Remove the air filter

    • During reassembly, clean the air filter with compressed air or with light brushing before reinstalling it.

  5. wBPItTnqpEgEcL4X
    wBPItTnqpEgEcL4X
    Jn2ZWUZVtGApIKuu
    uL4rdnXXnhLUK2Vs

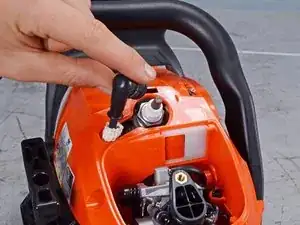

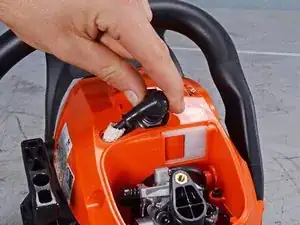

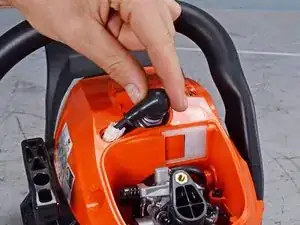

    • Use your fingers to pull up and disconnect the spark plug boot.

  6. QnuISmrubYR4m1mR
    QnuISmrubYR4m1mR
    lrHkCeqeqop5JGGO

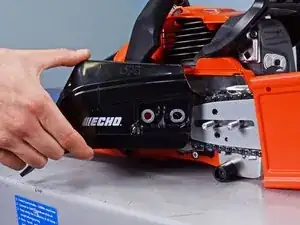

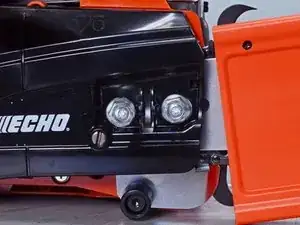

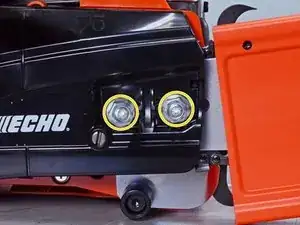

    • Use a 13 mm wrench to loosen and remove the two nuts securing the sprocket guard.

  7. ofKjjlWMZdfiaCUJ
    ofKjjlWMZdfiaCUJ
    hvfHGc5v5yHnG2uv
    HcPNMn25MH426fAY

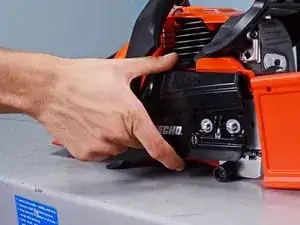

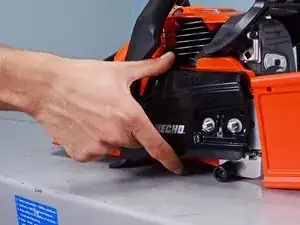

    • Pull the sprocket guard straight off its two pegs and remove it.

  8. GJ5qOcycbKc3SCDA
    GJ5qOcycbKc3SCDA
    e2SgdbKePMgUHilY

    • Put on gloves before performing the next two steps.

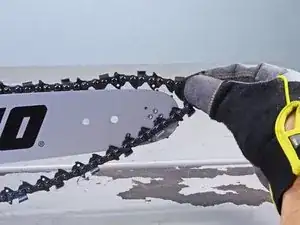

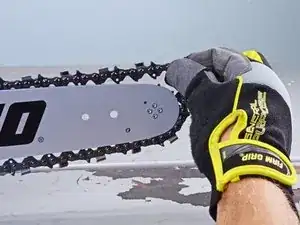

    • Pull the saw chain away from the tip of the guide bar to unclip it.

  9. CMWYZF2WPOAcwiSV
    CMWYZF2WPOAcwiSV
    daRjHFrah2ASak3Z
    r2MgHMXaK5uVMYho

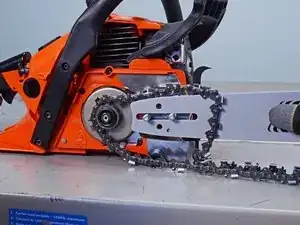

    • Push the guide bar towards the back of the device to unclip the rest of the saw chain.

    • Pull the guide bar away from the device to separate the saw chain from the clutch drum.

    • Remove the guide bar and the saw chain.

Abschluss

To reassemble your device, follow these instructions in reverse order.
