Echo Chain Saw CS590 2019 Starter Assembly Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Echo Chain Saw CS590 2019 Starter Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

30 - 45 Minuten

Einleitung

Use this guide to replace the starter assembly in your Echo Chain Saw CS-590 (2019).

Although it's not necessary to remove the guide bar, it's highly recommended you do so to minimize any damage to the chain and to yourself.

  1. EXqrpoIiVuTlWQpj
    EXqrpoIiVuTlWQpj
    HdgxWTa3PoaumQwV

    • Make sure you have the ignition switch turned off before starting your repair.

    • The chainsaw should be cool to the touch before continuing.

  2. VlDpTlKOKZAQGHeb
    VlDpTlKOKZAQGHeb
    lHMfIELUULyDD2XT

    • Use your fingers to loosen the air filter cover knob.

  3. hM5CJiHDnD4G2taS
    hM5CJiHDnD4G2taS
    pOHJ11GAZ5EvoCvZ
    YMmTvYbwPcaXOWxb

    • Remove the air filter cover.

  4. MjMcC4LWGGjshQhJ
    MjMcC4LWGGjshQhJ
    XcEo1FphwtCChEHW
    pqvhItih2LOKvZkk

    • Use your fingers to pull up and disconnect the spark plug boot.

  5. uIeULaEtZwacg5vq
    uIeULaEtZwacg5vq
    OnvVeeJSK6X1Ku5A
    HRTNwxHDJfPRhkwd

    • To minimize debris entering the intake, pull the choke shut before continuing.

    • Remove the air filter

    • During reassembly, clean the air filter with compressed air or with light brushing before reinstalling it.

  6. fprWV6JLP2CWaXvu
    fprWV6JLP2CWaXvu
    fnYwu2PlJm1UPPPU

    • Use a T25 Torx screwdriver to remove the five screws securing the front handle to the bottom and right side of the device:

    • Four 24 mm-long screws

    • One 25 mm-long screw

  7. GFJMPFFC6UrZtvFN
    GFJMPFFC6UrZtvFN
    STkUQDHYn5oWvtJd
    ksfCfYQdLRNxy3oB

    • Pull the handle toward the rear of the device to remove it.

  8. ZRPLAVeHjFMaSONl
    ZRPLAVeHjFMaSONl
    qlhmPLC2WBLXOhXk

    • Use a 13 mm wrench to remove the two nuts securing the sprocket guard.

  9. SlcKdx1dtwlotJtM
    SlcKdx1dtwlotJtM
    rivpeHXNpLLJYHpF
    temJNuTUTyqpyGlG

    • Remove the sprocket guard.

  10. C4EWcYOQwvLJitjw
    C4EWcYOQwvLJitjw
    MNXVHVVXHUounYit
    LUZrk2qmpW1FHLGE

    • Push the guide bar towards the back of the device to create slack in the saw chain.

    • Pull the guide bar away from the device to separate the saw chain from the clutch drum.

    • Remove the guide bar.

  11. JFMCcfuYLvUA624B
    JFMCcfuYLvUA624B
    sCEQTtNqlMHSDivY

    • Make sure the front hand guard is in the unlocked position before continuing.

    • Use a T25 Torx screwdriver to remove the two 20 mm screws securing the front hand guard.

  12. yqeipxYZgcrRlLKe
    yqeipxYZgcrRlLKe
    p63V56LxB4weIiRI

    • Pull the front hand guard toward the rear of the device to remove it.

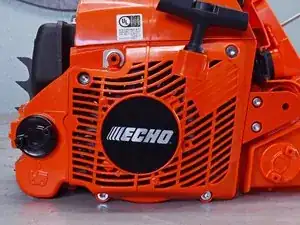

  13. aC3AFsqHgDLbgwDX
    aC3AFsqHgDLbgwDX
    fJRPE4UsMPCpJCLX

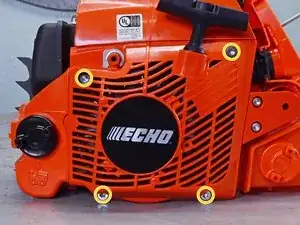

    • Use a T25 Torx screwdriver to remove the four 24 mm screws securing the starter case.

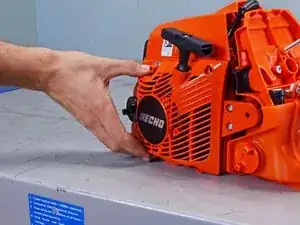

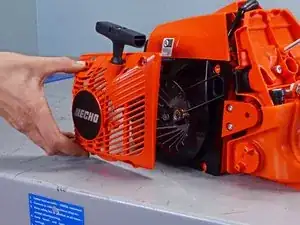

  14. HOaN4WJh2BPaudDd
    HOaN4WJh2BPaudDd
    VBNWqVi5BbUURsyO
    dvVMnvWqbY4KaVUa

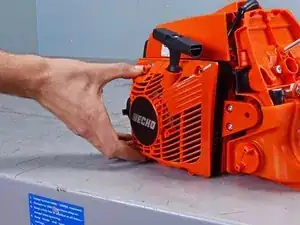

    • Pull the starter cover straight off its housing to remove it.

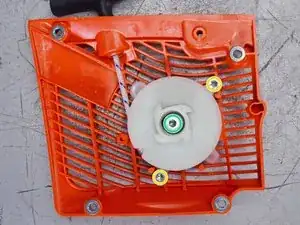

  15. eRCKckTmRqB5WBwu
    eRCKckTmRqB5WBwu
    dPOZjZTFibwrMIkH

    • Use a T25 Torx screwdriver to remove the three screws securing the starter plate:

    • Two 15 mm-long screws

    • One 14 mm-long screw

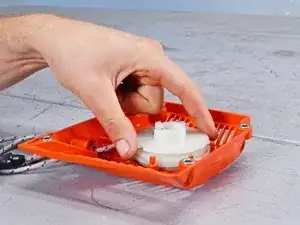

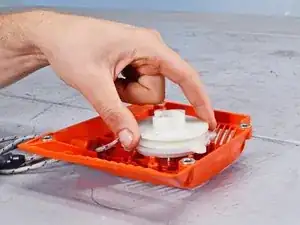

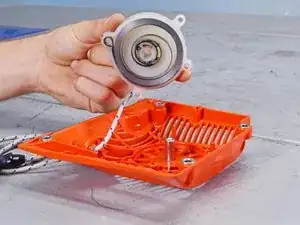

  16. UMAOuHl1QPwJOdfG
    UMAOuHl1QPwJOdfG
    QhSrsZxPZaCGwUqR
    pAJBvHUls1RKi1HJ

    • Be very careful with this step, as there's a lot of tension in the recoil spring. If you remove the starter plate too quickly, you may unravel the coil.

    • Carefully lift the starter plate straight out of its recess and remove it.

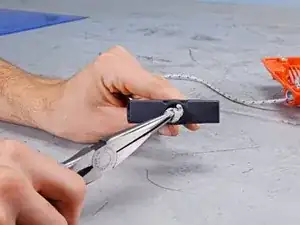

  17. mJQ4OKXi2iqBLWTD
    mJQ4OKXi2iqBLWTD
    RXXqeOZBB1MQjVe2
    pfdtvTv2NCXsAciZ

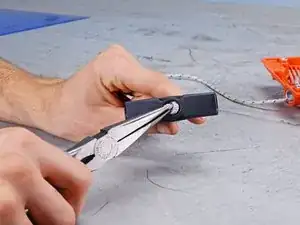

    • Use pliers, or your fingers, to pull the rope knot out of the top of the starter grip.

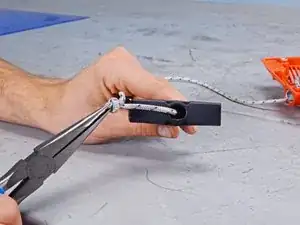

    • Undo the knot and remove the grip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
