Elegoo Mars 3 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 Minuten

Einleitung

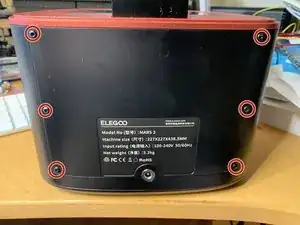

  1. SWnBqdli3xEWvfuF

    • Remove 6 screws.

    • 12.5mm self tapping screws with 2.0mm hex socket head

  2. fvyJ6xmDjlnRm55o
    fvyJ6xmDjlnRm55o
    YcYIQZwHSDx5XJMF

    • Use a small flat-headed screwdriver, spudger, or similar to pry open the lid enough to be able to get a grip of it and pull straight back and then fold down.

    • The back of the lid has a PCB with cables connecting it to the motherboard inside the unit. While not particularly fragile, do take care so you do not damage the connectors.

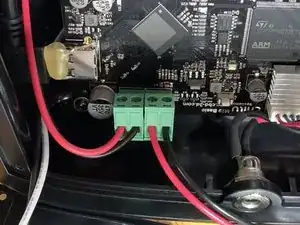

  3. XcqnxDEGj2CFIZUP
    XcqnxDEGj2CFIZUP
    WFXAsjwfkFuIDj4V

    • Remove the connectors by pulling them straight out.

    • Make sure you connect the connectors in the correct sockets during reassembly!

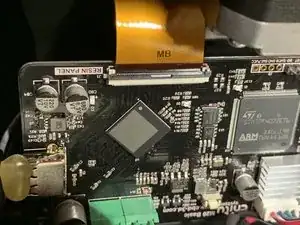

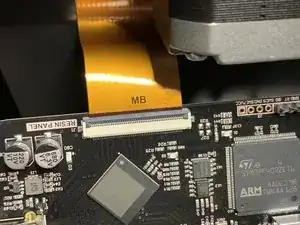

  4. OcwqPIUwFgGUA5VR
    OcwqPIUwFgGUA5VR
    sCXEFRNwB5hXPXYn
    Vch3AJf6jyV21Rra

    • Use a spudger or similar tool (your finger nail works if you can get it there) to loosen the resin panel connector by flipping the dark gray part 90° down.

    • Pull the cable straight up.

    • Be careful not to bend the cable!

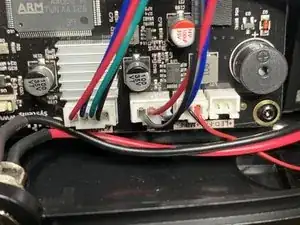

  5. CUyGSb4LvPZFjtKI

    • Remove the three cable connectors in the bottom right corner by pulling them straight out.

    • Be sure to pull the connectors, and not the cables!

    • If you are also replacing the limit switch, now is a good time to do so.

  6. 2bXG4NdXkQPPCvnR

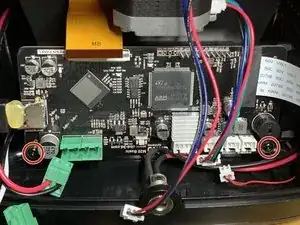

    • Remove the two screws fastening the motherboard to the unit.

    • 7.5mm self tapping screws with 2.0mm hex socket head

    • The touch screen cable on the right and the USB cable on the left are still connected to the motherboard.

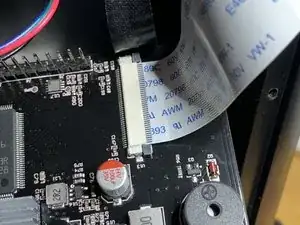

  7. lHs3LVKy6HnBBkyT
    lHs3LVKy6HnBBkyT
    WjVZ5LCiAZ2T4pDs

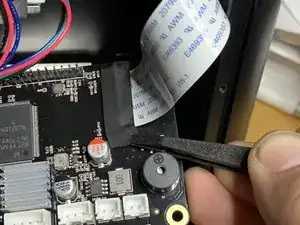

    • Use a pair of tweezers to get a grip on and remove the tape covering the touch screen connector.

    • You can transfer this tape and reuse it on the new motherboard.

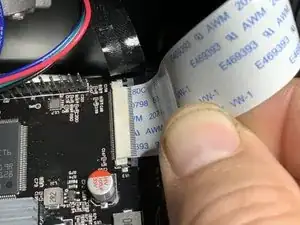

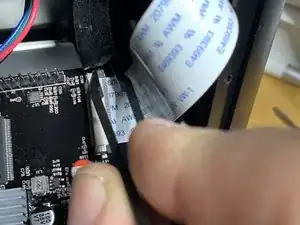

  8. AqTqVQ5VEAWPhddT
    AqTqVQ5VEAWPhddT
    Jv1fhIxPmEllBrsW
    MMIrwuGgcVmIH6oe

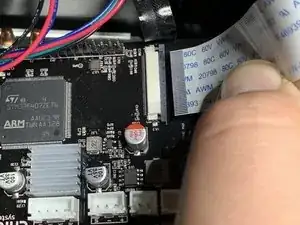

    • Use a spudger or similar to unlock the connector by pushing the dark gray part to the right, away from the connector, both on the top and bottom.

    • Note how far into the connector the cable is seated. When reinserting the cable in the new motherboard it can be hard to feel if the cable is fully inserted.

    • Remove the cable by pulling it out of the connector to the right.

  9. tMTmmQaL4PJj5tn5

    • Unplug the USB cable.

    • In my case the glue did not stick to the USB cable, just the USB socket on the motherboard, so I was able to just pull it out without doing anything with the glue. If necessary you should be able to pry off the glue blob with a spudger or similar.

    • During reassembly it is not necessary to glue these together.

Abschluss

To reassemble your device, follow these instructions in reverse order.
