Einleitung

This replacement guide will help you replace a broken or cracked screen on the Emetic eGlide 4 to ensure maximum viewing capabilities. The screen is attached to the front case as well as the motherboard. The other electrical components of the device must be removed prior to removing the screen. The screen is then removed from the front case, and then the screen's circuit board is disconnected from the mother board.

  1. IUDVrUxEpTJISvaQ
    • Remove the 4.6mm Phillips #00 screw at the base of the device.

  2. Poy1pQBXaoUylOvi
    • Slide the rear panel away from the base parallel to the screen.

  3. tndEUX1v2SPDPhHu
    tndEUX1v2SPDPhHu
    mmWD2upWaUrVGLZZ
    • Carefully remove the speakers from the rear panel.

    • Pull the speakers off of the rear panel.

  4. FVQf3FRSubmK4Whn

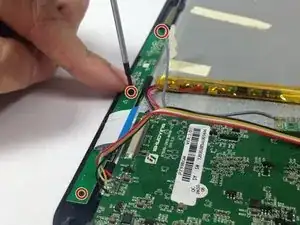

    • Remove the 3 Phillips #00 4.5 mm screws from the side button array.

  5. mftDrB4upHhPPqXk
    mftDrB4upHhPPqXk
    S322As1MWxRpRXau

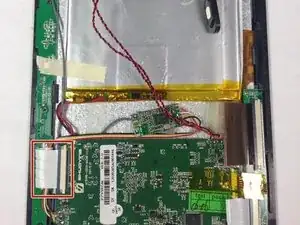

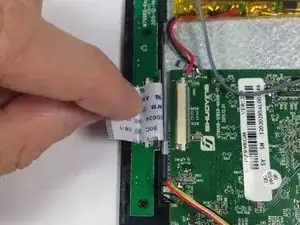

    • Slide the grey ribbon wire connector clip away from the ribbon wire port on the motherboard using the pointed tip of a spudger. This process will unclip the wire from the motherboard to release connection.

    • You do not need to fully disconnect the ribbon wire clip from the ribbon wire port: the clip will stay attached in a loose fit.

    • Remove the ribbon wire from the ribbon wire port on the motherboard.

  6. GMbZrCIX1IXuXZKG

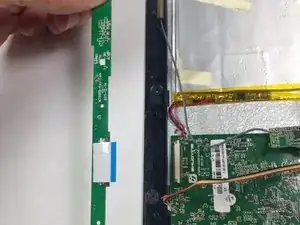

    • Remove the side button array from the device.

  7. ui4lW2BTKaCRAbYO
    • Slide the grey ribbon wire connector clip away from the ribbon wire port on the motherboard using the pointed tip of a spudger.

    • You do not need to fully disconnect the ribbon wire clip from the ribbon wire port: the clip will stay attached in a loose fit.

    • Remove the gold ribbon wire from the ribbon wire port on the motherboard.

  8. GBm1WJQVtNKQhutD
    • Slide the grey ribbon wire connector clip away from the white ribbon wire port on the screen board using the pointed tip of a spudger.

    • You do not need to fully disconnect the ribbon wire clip from the ribbon wire port: the clip will stay attached in a loose fit.

    • Remove the ribbon wire from the ribbon wire port on the screen board.

  9. cJHLQBlQ1LPpxWDk
    • Slide the grey ribbon wire connector clip away from the ribbon wire port using the pointed tip of a spudger.

    • You do not need to fully disconnect the ribbon wire clip from the ribbon wire port: the clip will stay attached in a loose fit.

    • Remove the ribbon wire from the ribbon wire port.

    • If you have already removed the side button array you do not need to do this step.

  10. gDknSDS5ZGJfdlkC
    • Remove the 2 Phillips #00 4.5 mm screws from the motherboard.

  11. EW4GrQu1eWnpsgN4
    • Desolder the Wi-Fi Adaptor

    • If not replacing the motherboard or Wi-Fi Adaptor, omit this step

    • See ifixit's guide to soldering and desoldering for help: How to Solder and Desolder Connections

  12. l2gWlJf4ocCv23ko
    • Desolder the battery connections

    • If not replacing the motherboard or battery, omit this step

    • See ifixit's guide to soldering and desoldering for help: How to Solder and Desolder Connections

  13. cbHBHKAVPFKTWCKo
    cbHBHKAVPFKTWCKo
    IHuuQOfKuqlcXAqt
    • Slide and pull the motherboard out of its current position, so that the ports disconnect from the device.

    • Lift the motherboard out of the device.

  14. MCWDYRQKjcNOW2Lu

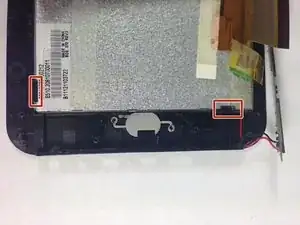

    • Gently pull the front case clips down and off of the back of the screen

  15. hWR6aVIb2QDTSfKI

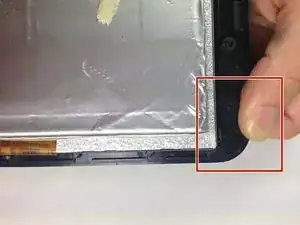

    • Gently pull the front case clips down and off of the back of the screen for all of the remaining clips

  16. UObU5qdLrOMuyZaU
    UObU5qdLrOMuyZaU
    UXjkhi23PKkLCSR5

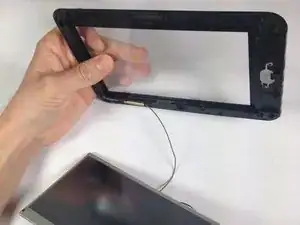

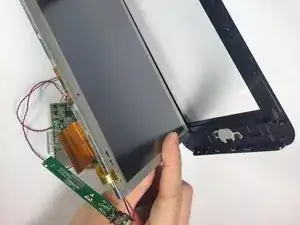

    • Gently pull the screen away from the front case

Abschluss

To reassemble your device, follow these instructions in reverse order.
