Emerson Ceiling Fan Flywheel Replacement

Geschrieben von: Tanner Brook
  • Kommentare: 0
Emerson Ceiling Fan Flywheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

If your Emerson ceiling fan is humming but the blades are not spinning, you most likely have a broken flywheel. It is a lot easier and cheaper to replace the flywheel yourself, rather than the whole fan.

Before using this guide, make sure you check to fan has power going to it. Check to make sure the circuit breaker is not flipped.

Replacing your flywheel is inexpensive and possible for most ceiling fan brands. If you do not know the brand of your fan, measure the flywheel once you remove it. Note the inside and outside diameter, and the locations and spaces between bracket and screw holes.

You will want to make sure power is turned off to the fan before you start to work on anything.

  1. 6oUQTxVuVSSpcs2N
    6oUQTxVuVSSpcs2N
    Zd4mQnYQOMpxI4XZ
    geRG5Z1KNOvgpAXO

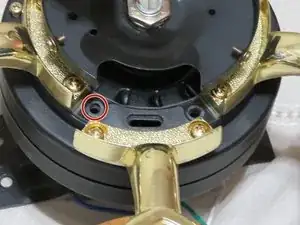

    • Make sure power to the ceiling fan is off!

    • Use a Phillips #0 screwdriver to remove the ten 12.7 mm screws from the ceiling fan blades.

    • It is easier to work on the ceiling fan if you remove the motor.

  2. uEK61heGpRZOgRbF
    uEK61heGpRZOgRbF
    xUJ61ba6G5JWbIfx

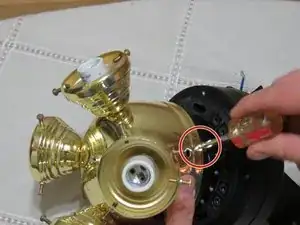

    • Remove light bulbs before working on switch housing.

    • Open the switch housing using a Phillips #0 screwdriver to remove the three 7.9 mm screws.

  3. 2vWVM1Loh5KrtPlF
    2vWVM1Loh5KrtPlF
    UpckXQUyAHcXNMNh

    • Disconnect wires that are attached to the switch housing and the motor.

    • Make sure you know where to reconnect them.

  4. MSM3hgrYncgKt433
    MSM3hgrYncgKt433
    6eWtX4Icp1TGtMdf
    NRFR3RcjYh4tSZKQ

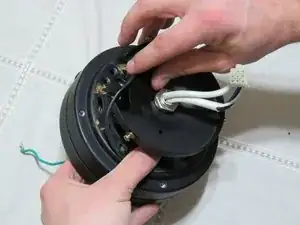

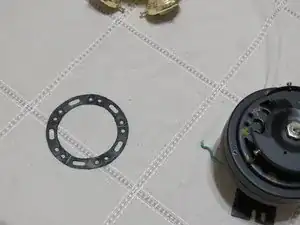

    • Remove the broken flywheel.

    • Make note of its exact placement on the shaft.

    • It may be a good idea to mark the location with a marker.

  5. JG2ma3NlDoMjLnDt
    JG2ma3NlDoMjLnDt
    2OVSbEKWYyIeBaH2
    O2afptjERRVtDkqa

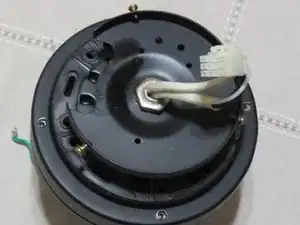

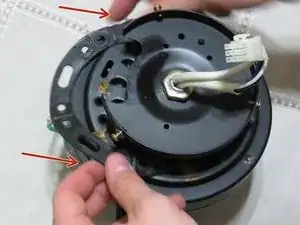

    • Slide the new flywheel into place making sure all the holes line up.

    • Place any wires through the same holes as they were before

    • Replace any other parts you removed during the process.

  6. EdNjQB21FIMEEyP5
    EdNjQB21FIMEEyP5
    VgpEGXK5hw2D1QAZ

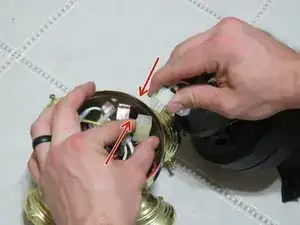

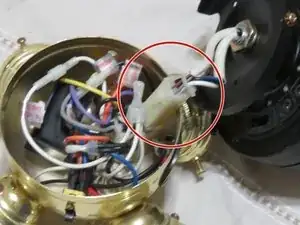

    • Reconnect the wires from the switch housing to the motor.

    • Make sure you connect the wires to the correct match.

  7. uE2aQOcHEHa1kdcx
    uE2aQOcHEHa1kdcx
    NFayDCh4HGKtaNaV
    RkuYJsNS2MbtkreB

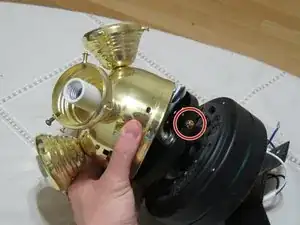

    • Screw back on the three 7.9 mm screws to the switch housing using a Phillips #0 screwdriver.

    • Screw the light bulbs back in.

  8. jVyBQdOrMK2wTrG6
    jVyBQdOrMK2wTrG6
    eOM2xMkmQvtaoLFr
    ddREYEsusQL4uOtb

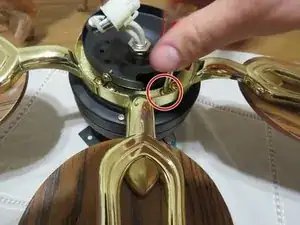

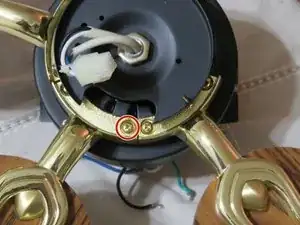

    • Using a Phillips #0 screwdriver, reconnect ceiling fan blades by re-screwing on ten 12.7 mm Phillip screws.

    • If you removed the motor, reconnect it after blades are on.

Abschluss

Test your fan. It should be running quietly with no problems. If something is wrong make sure to double check you hooked the wires up correctly.
