Equity Alarm Clock 13014 Alarm Switch Replacement

Geschrieben von: Alaa
  • Kommentare: 0
Equity Alarm Clock 13014 Alarm Switch Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide details the process of an Equity Alarm Clock 13014 Alarm Switch Replacement. The alarm switch activates the alarm when it's set to go off. This guide requires some basic soldering.

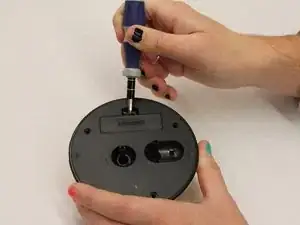

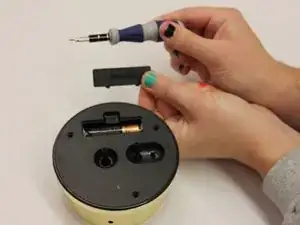

  1. lZKRieMJm3ZWMIZO
    lZKRieMJm3ZWMIZO
    axvZKZL3uh6fT3pE
    PIi6FqeQ4EwpKIdk

    • Remove the battery door using your finger nail or an opening tool.

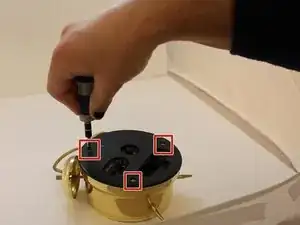

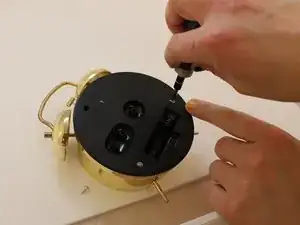

  2. qDXUAONinVctvLyB
    qDXUAONinVctvLyB
    KlkjCGFMCtyxeExk

    • Use a Phillips #1 screwdriver to remove the 3 screws on the back cover.

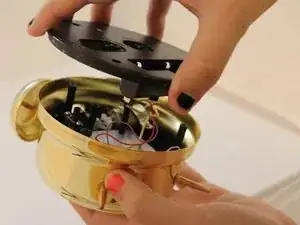

  3. PbKHr4ShdmtnvOtQ

    • Remove the back cover.

    • DO NOT cut the wires attached to the cover.

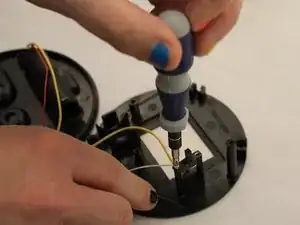

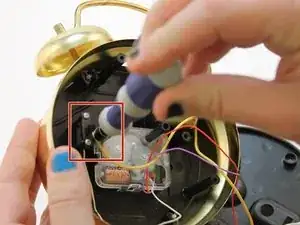

  4. RX4MACc32inEGoSG
    RX4MACc32inEGoSG
    uMlQLbxChpTNfGFx

    • Use Phillips #1 screwdriver to remove the small screw located above the alarm switch.

    • Remove the small screw located below the alarm switch.

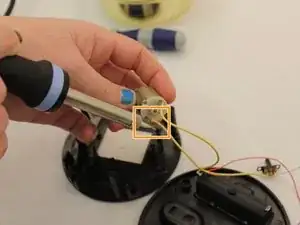

  5. AfQGVlroNmchU6Sa
    AfQGVlroNmchU6Sa
    CSMgcKPJyk4jGnoZ

    • Place the end of the soldering iron on the end of the wire connected to the copper cylinder to detach the wire.

    • If you are unfamiliar with soldering, take a look at this article: How to Solder and Desolder Connections.

    • To replace the alarm switch, attach one end of new alarm switch wire to the copper cylinder.

    • Use a Phillips #1 screwdriver to reinstall the switch screws.

    • Follow steps in reverse order to assemble the clock.

Abschluss

To reassemble your device, follow these instructions in reverse order.
