Fender Frontman 15r Reverb Tank Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 5
Fender Frontman 15r Reverb Tank Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Hammond invented the spring reverb for their first electric organ in 1935. Since then, the spring reverb has produced an iconic effect heavily used in guitar amplifiers. If yours has stopped working it can be easily replaced or upgraded for a more desired tone.

  1. m3pEHZ1rYpwQoMdo
    m3pEHZ1rYpwQoMdo
    EyWVIOtT1XKCBQPD

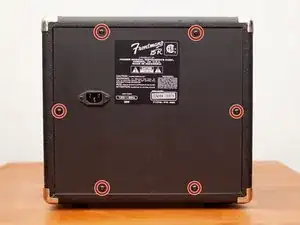

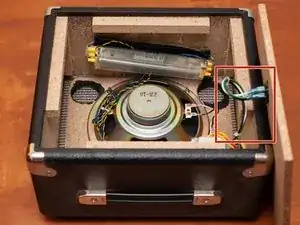

    • Remove 6 Phillips screws securing the back plate.

    • Lift the back panel out of the amp.

    • Gently pry with a flathead screwdriver or other tool to release the back panel if it's stuck.

    • Be careful not to pull out the wires connected to the power converter.

  2. 1mwq1WWysR4cnGaJ
    1mwq1WWysR4cnGaJ
    4rDMUFduSDDi1kTs

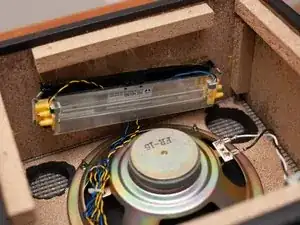

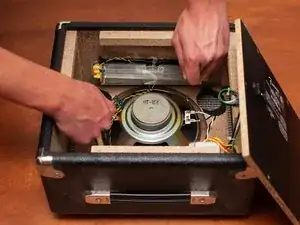

    • Saw the adhesive from in between the reverb tank and the cabinet until the reverb tank is released.

  3. RqJEhQR4nHY4TTFA

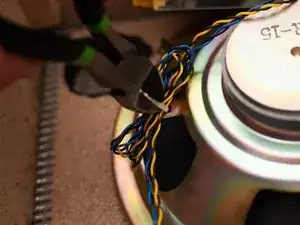

    • Use wire cutters to remove the zip tie fastening the wires to the speaker.

  4. DDSDWlsv12CKiBl6
    DDSDWlsv12CKiBl6
    FjuyIuVAwyyTgSxV

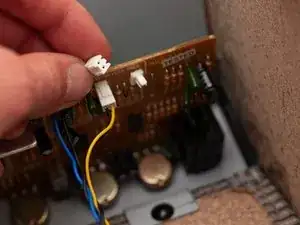

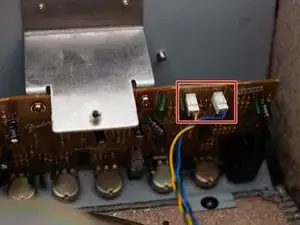

    • Unplug the wires leading from the reverb tank to the motherboard.

    • Notice they are plugged in where the motherboard is labeled "reverb only."

    What are these plug ends or leads called? Is there an RCA adapter/converter for them?

    John Ender -

  5. BBCsWy1nwKrc1RDQ

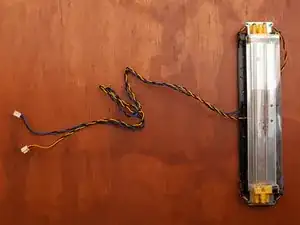

    • Remove the reverb tank.

    what if I wanted to upgrade to gen 1 replacement like this one

    https://www.amplifiedparts.com/products/...

    John Ender -

  6. LbChbX4Dn2viNEqI

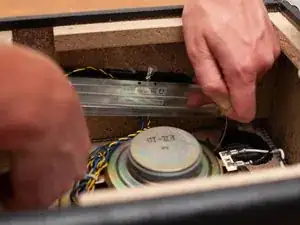

    • Glue the new reverb tank into place following the directions provided with the glue or epoxy of your choice.

  7. PtEO1I3tXWZASqxE

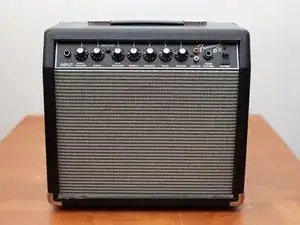

    • Reconnect the wires and test the new reverb tank ensuring the effect properly matches the knob setting.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sam Omiotek

Mitglied seit: 25/02/19

59342 Reputation

2 Kommentare

I guess there is 2 versions of this amp the one in this video this version of the tank has 3 springs; this looks like 2…

Wonder which one was the newer version?

https://www.youtube.com/watch?v=o856fDGI...

John Ender -

Interesting! I wouldn’t know which is the newer version, but the one in the YouTube video does look like it has higher quality parts…

Sam Omiotek -
