Einleitung
This guide will show you how to remove and replace a blown speaker. Doing this will require a phillips head screwdriver and wire cutters. A soldering tool will also be needed to reattach wires to the new speaker.
-
-

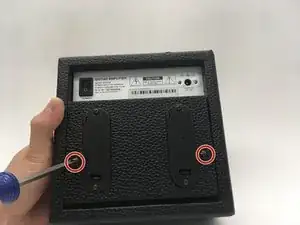

Use a Phillips #0 screwdriver to remove the two 25mm screws that secure back panel to amplifier.
-
-
-

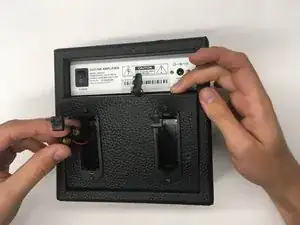

Once screws are removed, lift the panel from the amplifier and feed the battery terminals through holes in battery cartridges.
-

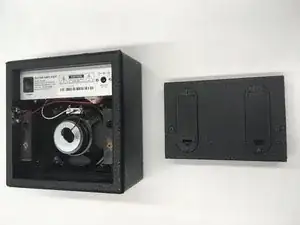

Take the panel off and set it to the side.
-
-
-

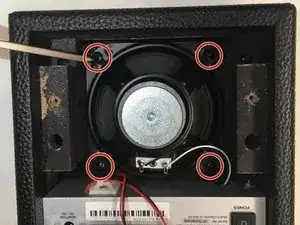

Use a Phillips #0 screwdriver to remove the four 25mm screws that fasten the speaker to the inside of the amplifier.
-
Abschluss
To reassemble your device, use soldering link provided to solder existing wires onto new speaker, then follow these instructions in reverse order.
