Einleitung

This guide gives you a look at the major components of the Fujifilm X-M1 and provides complete disassembly instructions.

We highly suggest you use a magnetic project mat or an organization tray. This camera has many different types of screws and keeping them organized is key to proper reassembly.

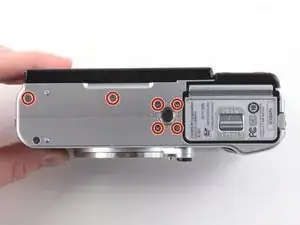

  1. xnXncLQQpwGqaOFA
    • If you haven't done so already, remove the lens from the camera.

    • Remove the six 2.5 mm Phillips screws from the bottom of the camera.

  2. tpgWG6XeoxFAksHg
    • Use tweezers or a finger nail to peel back the rubber cover on the left handgrip.

    • Remove the 3.4 mm Phillips screw.

    • Remove the 3.7 mm screw.

  3. cnfEZWvJjnVq3XQH

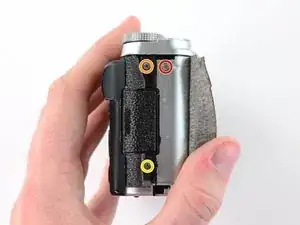

    • Use tweezers or a fingernail to peel back the rubber cover on the right handgrip.

    • Remove the 3.2 mm Phillips screw.

    • Remove the 3.8 mm Phillips screw.

    • Remove the 2.8 mm Phillips screw.

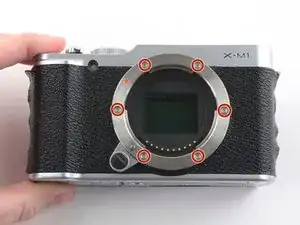

  4. 2HBCXlUEoUmJXlO5
    2HBCXlUEoUmJXlO5
    AhLJaNp4BQOIKwCZ
    CFtMbubvMykkp6di

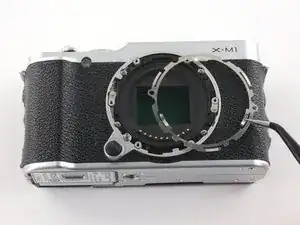

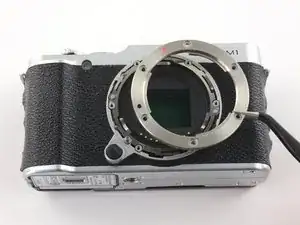

    • Remove the six 6.5 mm Phillips screws from the lens mount.

    • Use tweezers to remove the top metal ring and the thin metal ring below it .

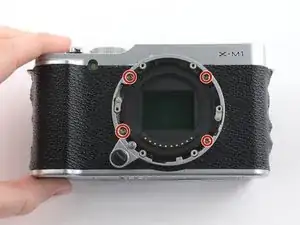

  5. LRZvWBfuLvHQVlEa
    • Remove the four 4.3 mm screws securing the sensor to the front case.

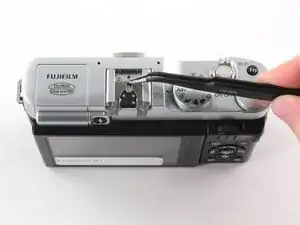

  6. OWRfGyBLaPZmb1Fs
    OWRfGyBLaPZmb1Fs
    EagF3uFWHZAIEbGo

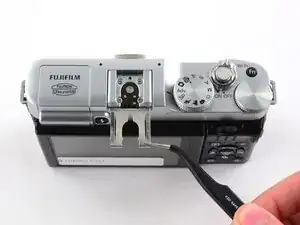

    • Use tweezers to slide the metal shield straight out of the external flash mount.

    This and the next step not required for dissassembly of the camera.

    Rimvydas -

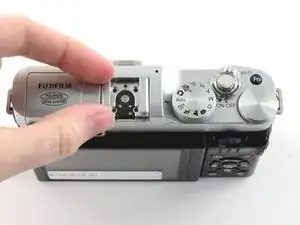

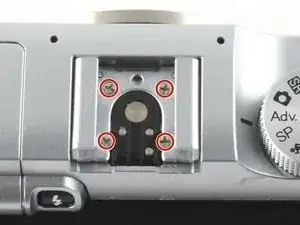

  7. mLVcRk3TiZHNYZaS
    mLVcRk3TiZHNYZaS
    2GPA5yURfsPYO5PU
    YBPHuVCcbD4UODhG
    • Remove the four 4.6 mm Phillips screws from the external flash mount.

    • Use tweezers or two fingers to remove the mount clip.

    This and the previous step are not required for dissassembly of the camera

    Rimvydas -

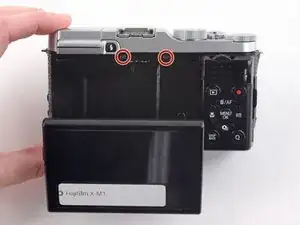

  8. F3wbTycNtrBwSFx5
    • Extend the LCD.

    • Remove the two black 4.3 mm Phillips screws from the back case.

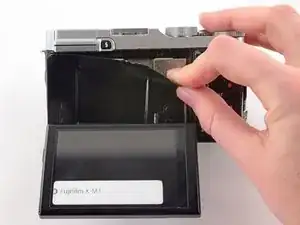

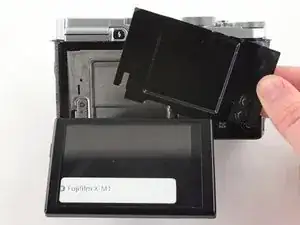

  9. FePmhW3lClDCVAuh
    FePmhW3lClDCVAuh
    PkbBcTyxh45ZoKJ5
    • Use two fingers to peel back and remove the black plastic cover from behind the LCD.

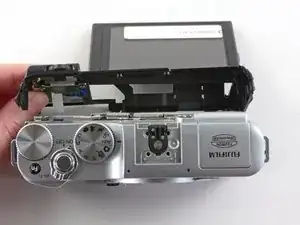

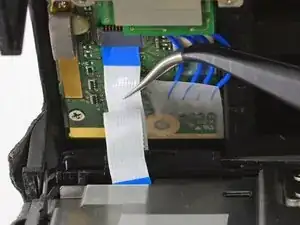

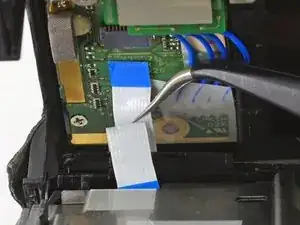

  10. OERmQSPs6jEfyF3L
    OERmQSPs6jEfyF3L
    iAAXIGds24IZCliO
    qZSiFRH2PbJssVGG
    • Slowly pull the back frame away from the camera.

    • Do not attempt to remove the frame, as it is attached to the camera by a ribbon cable.

    • Use tweezers to pull the white and blue ribbon cable out of the connector.

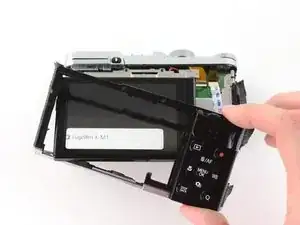

  11. 4sWn2Z6nH6LoPlgp
    • Slide the frame around the LCD to remove it from the camera.

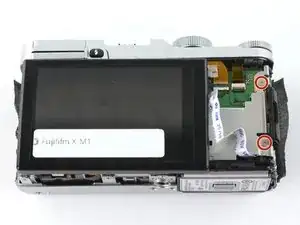

  12. AD3RHiU1p1uU2yHN
    • Remove the two 2.6 mm Phillips screws from the right side of the metal frame.

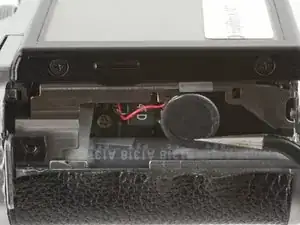

  13. vllfZVYqrafisWuD
    vllfZVYqrafisWuD
    DDo6B6G3TVpsp6TK

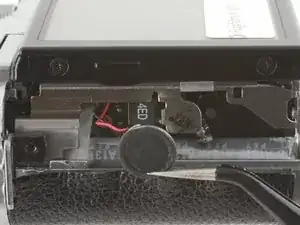

    • Use tweezers to unhook the speaker near the left handgrip.

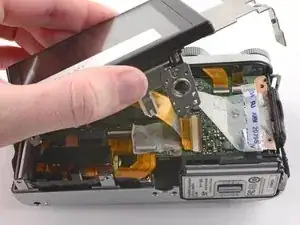

  14. 6dCVReuTWLDsSFEE
    6dCVReuTWLDsSFEE
    ecIW4IffBaLKLDBA

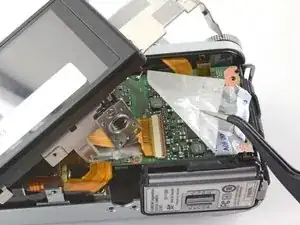

    • Slowly lift the metal frame away from the motherboard.

    • Do not attempt to remove the frame, as it is attached to the motherboard by a large ribbon cable.

    • Use tweezers to remove the plastic covering the motherboard.

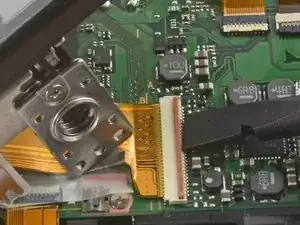

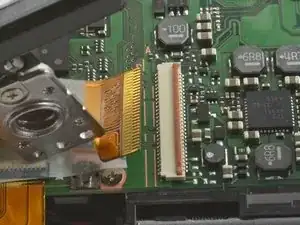

  15. LioSSUvxgLT2HsnD
    LioSSUvxgLT2HsnD
    bXaJkYZmL4p3GdrK
    DkYJJ5TBeyTysSRc

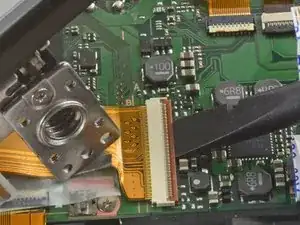

    • To remove the ribbon cable, flip back the orange lock on the large ZIF connector with the flat end of a spudger.

    • If the ribbon cable does not pop out on its own, use tweezers to pull it out of the connector.

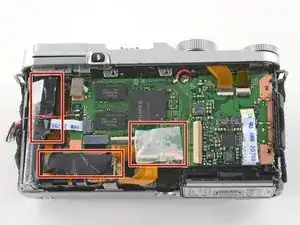

  16. OWnHIU6LZxS5io1V
    • Use tweezers to remove the three pieces of tape covering the components of the motherboard.

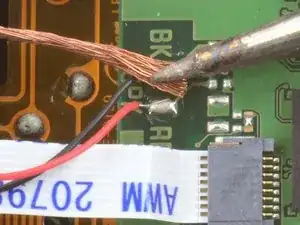

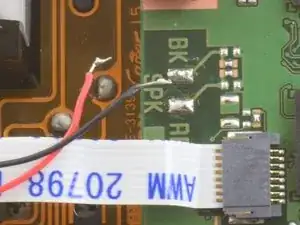

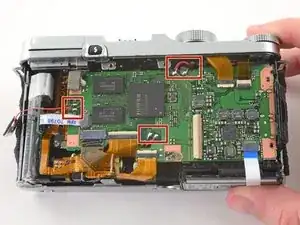

  17. FBBINtCogou1Kpvc
    FBBINtCogou1Kpvc
    Kp5PIDTZTUXRohbZ
    NisapOfQw2Bdo5eW
    • Desolder the three pairs of red and black wires attached to the mother board.

    • Learn more about desoldering wires here.

    It is unnecessary to remove the speaker wires.

    Also to have access to top panel, it is enough to remove only the top set of wires.

    Rimvydas -

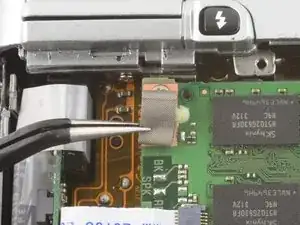

  18. OSMhpfdiqQ6YeQxX
    OSMhpfdiqQ6YeQxX
    I2xI5fbPpBDO3Z4x

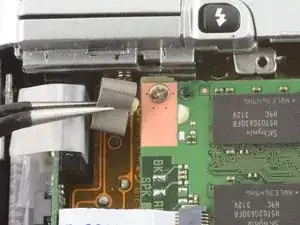

    • Use tweezers to remove the grey cushion located below the flash button.

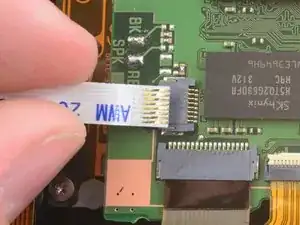

  19. hiaTFZcAAVtA1mXB
    hiaTFZcAAVtA1mXB
    KdgjewFclDFE3YBM
    MBRV16h5EECTv1wI

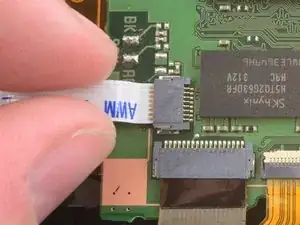

    • Use two fingers to remove the two ribbon cables in the bottom left corner of the motherboard.

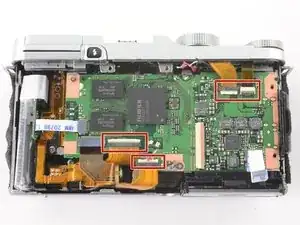

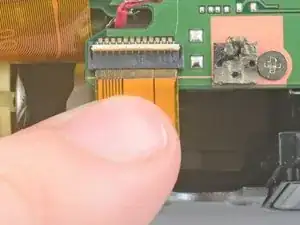

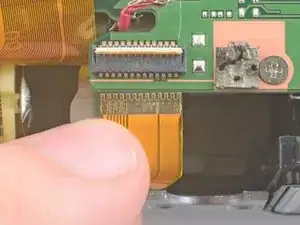

  20. TUwaeyMWIDtoxoCY
    TUwaeyMWIDtoxoCY
    pMqAM6Pe36eOPDq4
    CeAE6CXdFstqURrB
    • Use the flat end of a spudger to unlock the four indicated ZIF connectors.

    • Use two fingers to pull the ribbon cables out of the connectors.

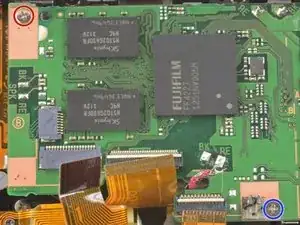

  21. uWoZPMGO1wXUVyeJ
    uWoZPMGO1wXUVyeJ
    KwNuTEVk52ciT1NS

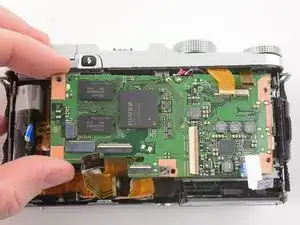

    • Remove the 3.3 mm Phillips screw from the upper left corner of the motherboard.

    • Remove the 2.4 mm Phillips screw in the bottom right corner of the motherboard.

    • Use two fingers to remove the motherboard from the front case.

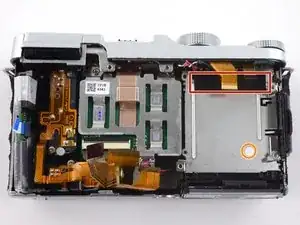

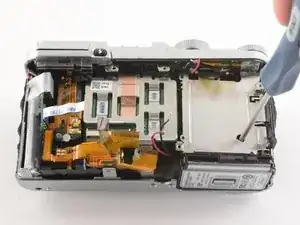

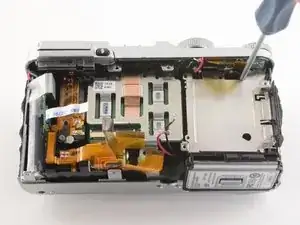

  22. 5PSoNGsBLguF5MyX
    5PSoNGsBLguF5MyX
    IXitXG2FfRL2Q1NB
    sGnPynvDq4HPHHjd
    • Use tweezers to remove the black plastic tape at the top of the battery compartment.

    • Insert a Phillips #00 screwdriver through the hole beneath the black tape to remove a 4.8 mm screw.

    • Insert a Phillips #00 screwdriver through the white tamper evident sticker to remove a second 4.8 mm screw.

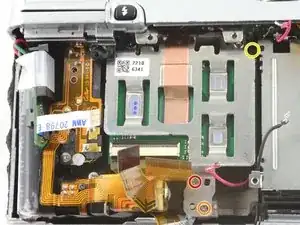

  23. cB6dGOw5rLfSEjOQ
    • Remove the 3.7 mm Phillips screw from the bottom of the sensor mount.

    • Remove the 4.2 mm Phillips screw from the bottom of the sensor mount.

    • Remove the 6.2 mm Phillips screw hiding between the sensor mount and the battery compartment.

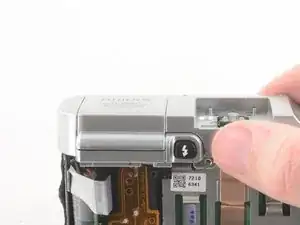

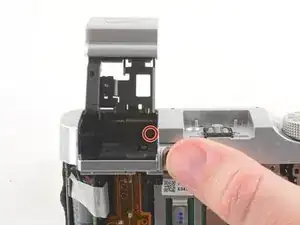

  24. kdP2MOxiCv221l1B
    kdP2MOxiCv221l1B
    FDFn55QUddfYwTOB
    • Press the flash button to release the flash assembly.

    • Remove the 3.4 mm Phillips screw in the back of the flash compartment.

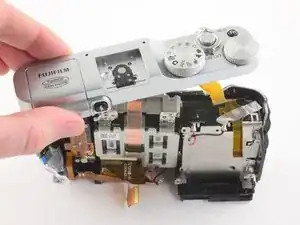

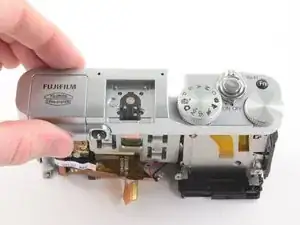

  25. xddYqO2CkseggPEY
    xddYqO2CkseggPEY
    CGdHFDTM5TTQJ4Cb
    • Remove the top plate.

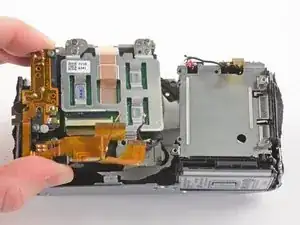

  26. U3ZENu6BAqCsPPQK
    • Remove the sensor assembly.

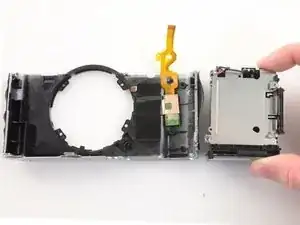

  27. hCanSUSKfKpNIZwI
    hCanSUSKfKpNIZwI
    aoAInYiWQZePLWGv

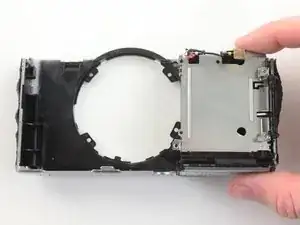

    • Remove the battery compartment.

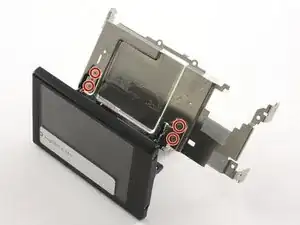

  28. EZUBnXGlnxOQTdwF
    EZUBnXGlnxOQTdwF
    KMugT4dqrKOaDRpl

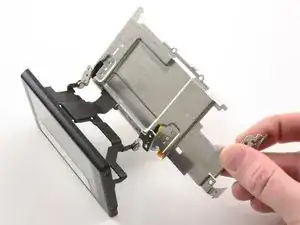

    • Remove the four 2.6 mm Phillips screws from the LCD hinges.

    • Tilt the LCD away from the metal frame.

    • Do not attempt to remove the LCD, as it is attached to the metal frame by a ribbon cable.

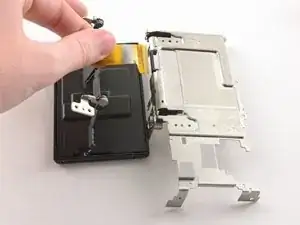

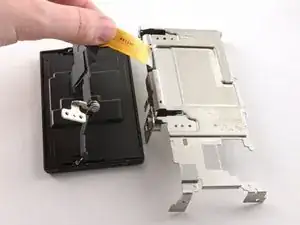

  29. BJnTr6xTehPMfD5R
    BJnTr6xTehPMfD5R
    kdVorkXUAhQpSrLS
    • Use two fingers to pull the ribbon through the hole in the metal frame.

    • Remove the LCD from the metal frame.

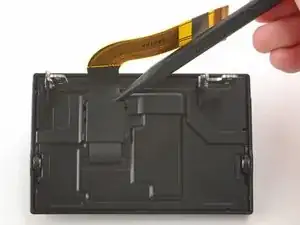

  30. RIFTgcEh6q2EVEJh
    RIFTgcEh6q2EVEJh
    Qh4VZe2PZlWMxbJY

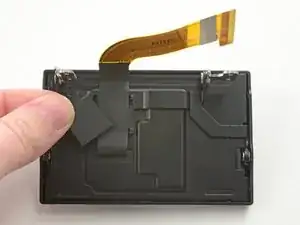

    • Use the pointed end of a spudger to remove the ribbon cover on the back of the LCD.

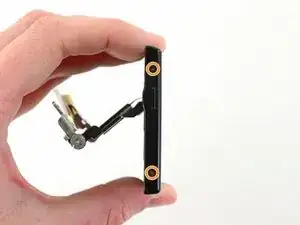

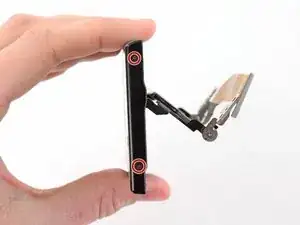

  31. rnPhNJsDBlkt1JJO
    rnPhNJsDBlkt1JJO
    EdtyVFraFfNpFZRX
    • Remove the two 2.6 mm Phillips screws from the right hand side of the LCD screen.

    • Remove the two 2.6 mm Phillips screws from the left hand side of the LCD screen.

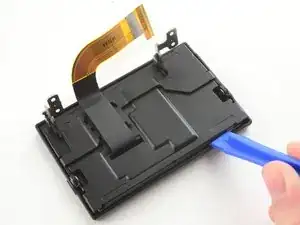

  32. hZGrQSh5DPrNHeLW
    hZGrQSh5DPrNHeLW
    GPvMR1TdXNvGufr1
    atpf1rJQ5FGomSoU

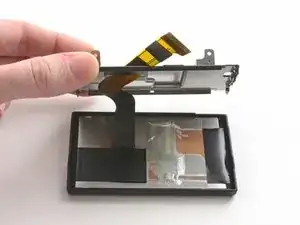

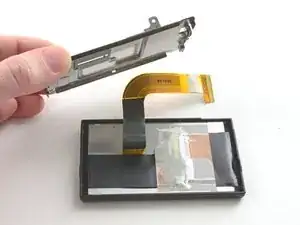

    • Use a plastic opening tool to pry the LCD case open.

    • Once the case is open, pull the ribbon through the hole on the back case.

  33. LoWnIoYLIaMrmMXN

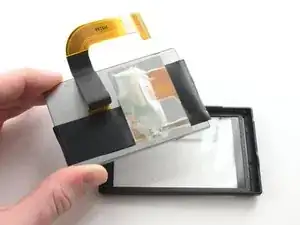

    • Remove the LCD from the screen cover.

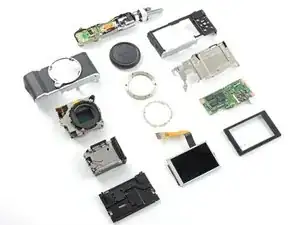

  34. Bshqvhfao2EULucE
    • You have successfully disassembled the Fujifilm X-M1!

    Thank you very much for the excellent guide. Thanks to him, I fixed my camera

    Lena Raigorodskiy -

Abschluss

To reassemble your device, follow these instructions in reverse order.
