Einleitung

This guide involves further disassembly of the clock radio and will require using several different tools and techniques, including using a soldering iron. If you need help on how to use a soldering iron, consult this iFixit guide: Wie man Lötverbindungen herstellt und entlötet

  1. cJBReooKvNfEXZdr
    cJBReooKvNfEXZdr
    vAyRorqwnVIKZZVw
    Hk6xJEjCDARrwYNe
    • Find the battery compartment on the bottom of the clock radio.

    • Using your thumb, push the compartment cover latch toward the battery.

    • With the latch pushed in, pull the compartment cover upward to remove it..

  2. mOPEAcTCcLfTJMfc
    mOPEAcTCcLfTJMfc
    JTHTpCQZTWcG3lWf
    • Lift the battery from the compartment.

    • Pull the battery up and gently disconnect it from the battery connector.

  3. mSDrBBgZt5dUaNJ1
    mSDrBBgZt5dUaNJ1
    WC3AXJVSwoFsETSW
    • Using a Phillips #00 Screwdriver, unscrew the six 12mm screws from around the bottom of the clock radio.

  4. YZK3cFWK4KGXAQFt
    • Gently pull the liquid crystal display (LCD) cover off.

  5. CYFixrNUKcoDJbRF
    CYFixrNUKcoDJbRF
    Qrv2jOSRPuerIGj3
    • Lift the top off. Two gray, plastic internal pieces will fall out when you do this; set them aside.

  6. DeqaHCGq1H4itrVA
    DeqaHCGq1H4itrVA
    cSZ3yURIHVMUET5a

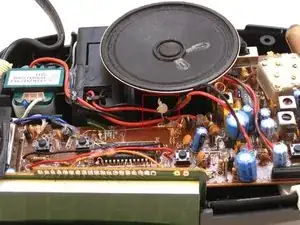

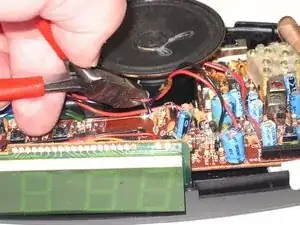

    • Using the wire cutters, carefully cut the plastic wire tie.

  7. qB1BUxMmCpvvjXsZ

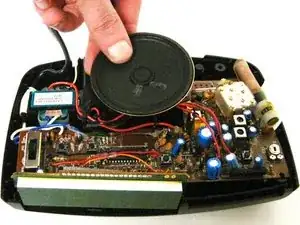

    • Grip the speaker.

    • Lift the speaker from the holder.

  8. aTTVFGy3HYofGuAB
    aTTVFGy3HYofGuAB
    VLoETePqNRYlmupw

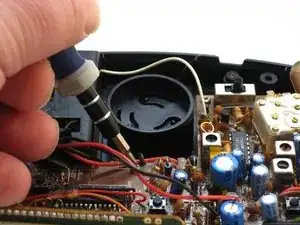

    • Locate the two 6mm screws on the PCB.

    • Using a Phillips #0 Screwdriver, unscrew the two 6 mm screws from the PCB.

  9. nLwIAfWVkbH1ZscQ
    nLwIAfWVkbH1ZscQ
    i35thAGkJUgrwfhS

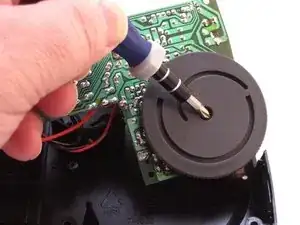

    • Raise the PCB to expose the AM-FM switch dial screw.

    • Using a Phillip's #01 Screwdriver, unscrew the one 3mm screw from the middle of the AM-FM switch dial.

  10. NrxNqUbGxepQlDWR
    NrxNqUbGxepQlDWR
    qsx4HBKFiJ4cZVZ5
    3URISHxh1pUMtHTN

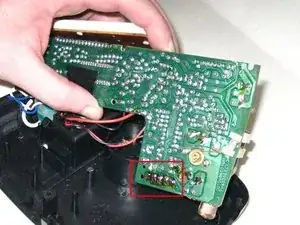

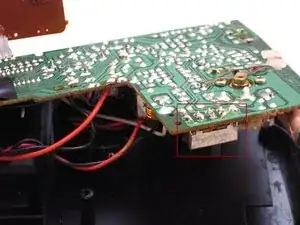

    • Locate the AM-FM pins on the PCB.

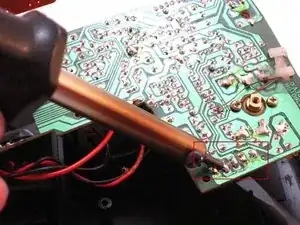

    • Carefully apply the hot soldering iron to the solder on top of the AM-FM pins.

    • Gently and firmly push on the pins with the Spudger to remove the switch from the underside of the PCB.

Abschluss

To reassemble your device, follow these instructions in reverse order.
