Galaxy S23 Ultra Chip ID

Geschrieben von: Shahram Mokhtari
Veröffentlicht: 28/02/23
  • Kommentare: 4

Galaxy S23 Ultra Chip ID

Veröffentlicht: 28/02/23

Teardown

Einleitung

Chip ID for the Samsung Galaxy S23 Ultra smartphone.

Many thanks to our community member CChin for his contributions!

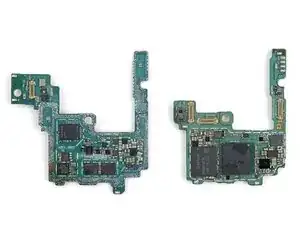

  1. HGUjjvjlOUsqvHhE
    HGUjjvjlOUsqvHhE
    SAHppYxDloS25EDh

    • Qualcomm SM8550 64-bit octa-core Snapdragon applications/baseband processor layered underneath Micron MT62F1536M64D8CL-026 WT:B 12 GB LPDDR5 SDRAM memory

    • Samsung KLUFG8RHHD-B0G1 512 GB NAND flash memory w/ controller

    • Wacom WEZ02 digitizer controller

    • Cirrus Logic CS35L42 audio amplifier

    • Cirrus Logic CS40L26 haptic driver

    • Analog Devices MAX77705C power management

    • NXP Semiconductor PCA9481UK battery charger

  2. u4aFRscAoiMUJk3r

    • Silicon Mitus SM3080I power management

    • Samsung S2MPBA3 power management

    • ConvenientPower CPS4038 40 W wireless power receiver w/ 10 W wireless power transmitter

    • Possibly Qualcomm envelope tracking power supply

    • Knowles MEMS microphone

    • Possibly Qualcomm power management

    • Possibly NXP Semiconductor load switch

  3. 61rIeBIGOnjoct1J

    • Qualcomm WCN7851-101 FastConnect 7800 WiFi 7, 6, & 6E & Bluetooth 5.3 transceiver

    • NXP Semiconductor SR200T ? ultra-wideband transceiver

    • Qualcomm SDR735-001 RF transceiver

    • Qualcomm SMR546-002 RF transceiver

    • NXP Semiconductor SN220U ? NFC controller w/ secure element

    is the Qualcomm WCN7851-101 FastConnect 7800 available worldwide or in US models only

    Hossam El-Din Yasser -

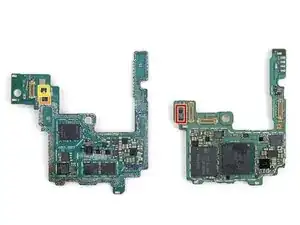

  4. nIC6r6efjyIJlmVC

    • AMS TMD4913 ? color & proximity sensor

    • STMicroelectronics LSM6DSO 6-axis accelerometer/gyroscope

    • STMicroelectronics LPS22HH pressure sensor

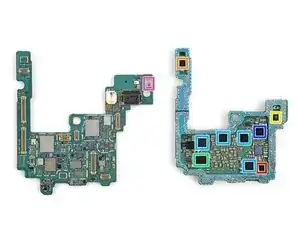

  5. XlIXnbJWsEfMxSQJ

    • STMicroelectronics STM32G051 ? 32-bit microcontroller

    • Cirrus Logic CS35L42 audio amplifier

    • Qualcomm PMK8550 ? clock generator

    • Qualcomm PM8550VE-001 power management

    • Qualcomm PM8550VS-001 power management

    • Samsung S2MPB02 power management

    • Goertek MEMS Microphone

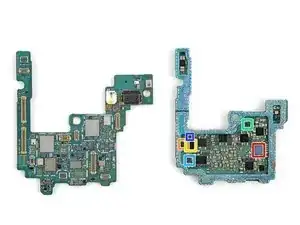

  6. LiMmBfmvYRjJI1eT

    • Qualcomm power management

    • ETEK Microelectronics ET9902 over-voltage & surge protection

    • Kinetic Technologies over-voltage protection ?

    • NXP Semiconductor NVT4557HK SIM card interface level translator

    • Vishay DG2730 2-port DPDT analog switch

    • Diodes Incorporated AP7340D-30FS4-7 150 mA / 3.0 V LDO regulator

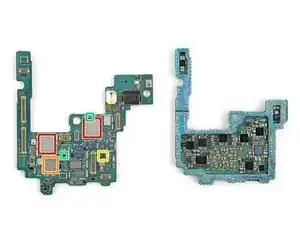

  7. BygSU6fNwM56CJPW

    • Qualcomm QPM7815-005 front end module

    • Qualcomm QPM6810-003 front end module

    • Maxscend MXDLN16GE GPS/GLONASS/Galileo/BeiDou low noise amplifier

    • Infineon BGSA20UGL8 dual SPST RF switch

  8. fsS4vUwJeKxJ3rCK

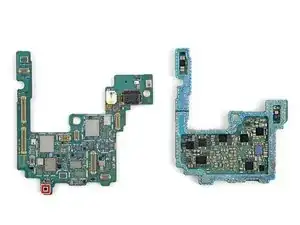

    • AKM Semiconductor AK09918C electronic compass

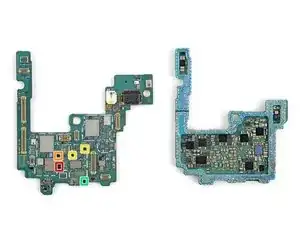

  9. RQGuCaRDKhDKHtNZ

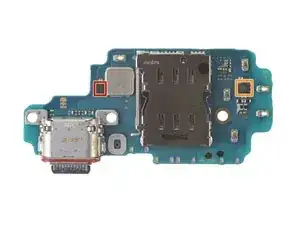

  10. PMy1rrTBljWNQfmX
    PMy1rrTBljWNQfmX
    jV6nuttFRN4Jvs2O

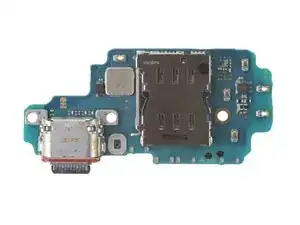

    • Diodes Incorporated AH1897T ? hall sensor

    • Probably antenna switch

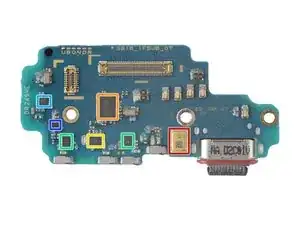

  11. t5ti4s2ysHhFnQ4C
    t5ti4s2ysHhFnQ4C
    QdfUFvhjQuN4CyTf

    • Knowles MEMS microphone

    • Wisol antenna switch module

    • Qualcomm antenna tuner

    • Qualcomm antenna tuner

    • Qualcomm antenna tuner

    • Maxscend MXDLN16GE GPS/GLONASS/Galileo/BeiDou low noise amplifier

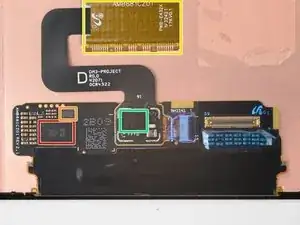

  12. Mf1QN6OawEbgwCf2
    Mf1QN6OawEbgwCf2
    i4ENqhMBGrteBn6i

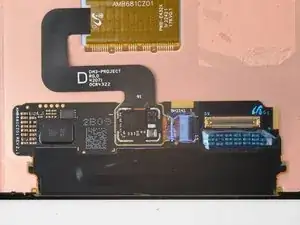

    • STMicroelectronics FJACJ ? touchscreen controller

    • Winbond W25Q80EWUXIE 1 MB serial NOR flash memory

    • Qualcomm QFS2630 ultrasonic fingerprint sensor

    • Qualcomm QBT2600-100 fingerprint sensor controller
