Garmin Nuvi 1490T USB Port Replacement

Geschrieben von: Ricardo Solis

Kommentare: 12

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

Problems with charging the battery? Is the USB port damaged where it is no longer able to plug into the charging cable? It might be time to replace your USB port. After removing the second frame panel be sure to read the Cautions and steps thoroughly before proceeding.

Werkzeuge

Schritt 1

Power off your GPS before moving on.
Locate the crevice that separates the frame from the body.

Front panel is very fragile. Exercise extreme care.

May be able to purchase part separately from Garmin should you have a mishap.

K Alphonso - 25/04/20

Schritt 2

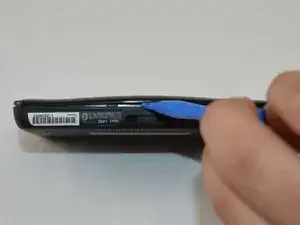

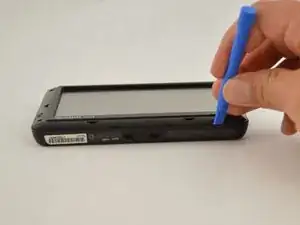

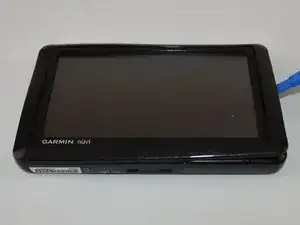

Carefully insert the plastic prying tool into the crevice to separate the frame from the body.
Applying excessive force can lead to a damaged or scratched display screen.

Schritt 3

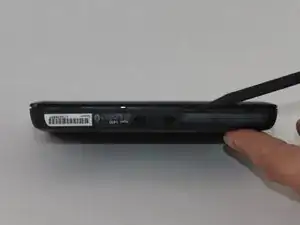

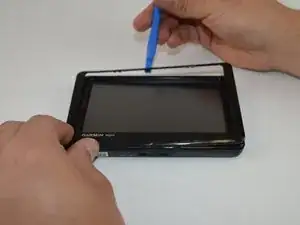

Slide the plastic prying tool around the perimeter to completely remove the frame.

Schritt 4

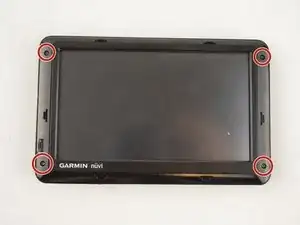

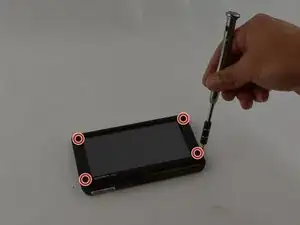

Remove the four 11.0 mm screws using the Torx T5 screwdriver.

Schritt 5

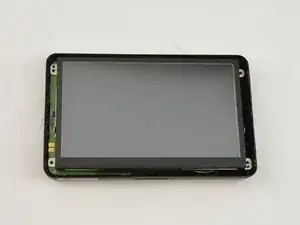

Using the plastic prying tool, dislodge the frame from the body of the device.
Using your hands, completely disconnect the frame from the body.
Set the pieces of the frame aside.

Schritt 6

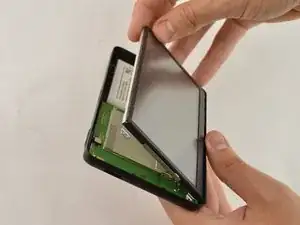

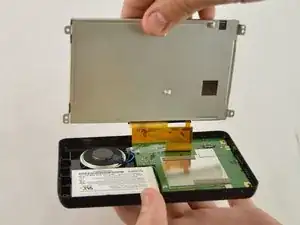

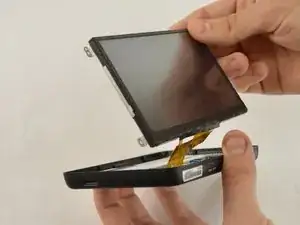

Gently lift up the display screen using your fingers to make sure the only thing connecting it to the body is the ribbon cable.

Schritt 7

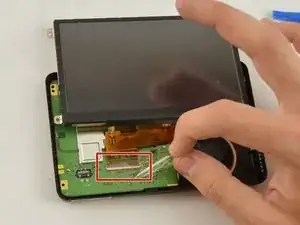

Remove the piece of tape that is covering the connecting point of the motherboard and display.

Schritt 8

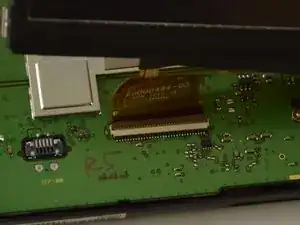

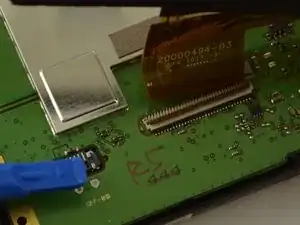

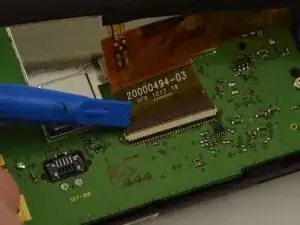

Using the plastic opening tool or your fingers, lift up the ZIF connector holding the ribbon cable in place.
Carefully pull the ribbon cable out of the connector with tweezers or two fingers.
Gently disconnect the display by pulling upward. Set display aside.
If the display screen does not disconnect easily, make sure the ZIF connector is no longer holding it in place.

wow no idea what you are trying to say here...

Karen Dennis - 19/02/17

You don't need to remove this. if you go to youtube there is a video of a little boy showing how to do this and it is much more helpful. This step is not clear and you can damage the device taking that ribbon off!

Karen Dennis - 19/02/17

can you be more specific about video? I have no idea how to replace the flat cable into the ZIF connector

Alex - 13/06/17

The ZIF (Zero Insertion Force) connector is a locking connector. You need to lift the dark plastic tab that runs across the connector so that it pivots up on the hinge located near the middle of the connector. This plastic tab is a lock that secures the ribbon cable in place for the screen to work. Once the hinge is lifted, the ribbon cable should be easy to slide out of the connector. To reassemble, you must slide the cable back into the connector as far as possible with the hinge open. Then gently close the hinge until it locks into place and reapply the tape.

Dave Marzetti - 23/10/17

In the first photo, the ZIF is shown in the locked position, and in the second photo, you can see the locking tab in the unlocked position. Be careful not to force the tab or you will break it and will have a much more serious problem.

Dave Marzetti - 23/10/17

Schritt 9

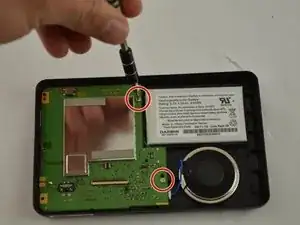

Use your T5 Torx screwdriver and unscrew the two 5.0 mm screws on the motherboard.

Schritt 10

Flip the motherboard over towards the battery.

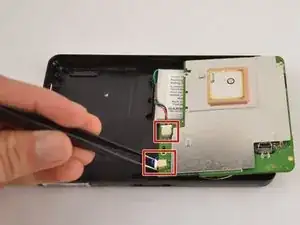

Use your tweezers and disconnect the two wire connectors from the motherboard.

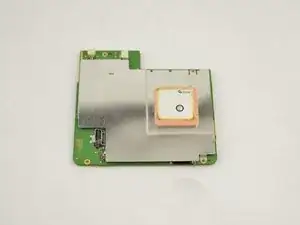

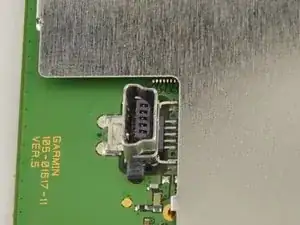

Pull the motherboard out and locate the USB port.

Schritt 11

If this is your first time solder here is a link on how to solder. Wie man Lötverbindungen herstellt und entlötet

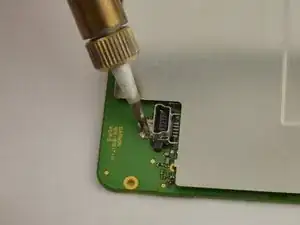

Gently and delicately heat up the solder holding the USB port to the circuit board.

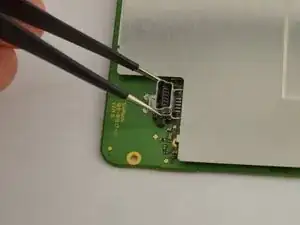

Carefully remove the USB port with your metal tweezers and set it aside

My problem was intermittent connection due to stress on this connector from outside. DO NOT pick up your Garmin by the cord!

Terrence Trussell - 22/03/17

In addition, the repair of the USB port is more difficult than mentioned in these instructions. Removal of the shield that covers the USB connections is not possible. I found it possible to unsolder the post near the connector, then peeling back the shield plate enough to access the covered USB connections. Then careful work with a pencil type soldering tip and solder wick to remove excess solder allowed me to reconnect the loosened pins on the USB port and restore normal operation. Bending the plate back and re-soldering got me back to usable operation. Tested and all good. (March 23, 2017)

tnstrussell - 23/03/17

Please send me manufacture part number of USB port and where I can buy that.

Email: Bradmichaelonline@gmail.com

brad -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ricardo Solis

Mitglied seit: 20/01/16

1019 Reputation

3 Kommentare

I found one on ebay, cost about 5 USD. Search for micro USB jack.

Heliophile - 08/02/18

those are not micro usb, there mini usb.

ricky bennett - 28/05/19

Did I miss something? The title implies showing how to REPLACE the port. It ends with remove port and set aside, then reverse. On the off-chance the authors are still reading the comments, sarcastic “good job”. I also marvel that it took three of you geniuses to come up with this. I’m gonna follow Heliophile’s advice and search ebay, his or her 2 line comment was way more useful then the entire piece. Thanks Heliophile.

Mark Burrows - 23/01/19
