Einleitung
The mother board assembly is simple to replace and only takes 10-15 minutes to open the device and access the logic board. This guide requires a prying tool, the Torx 4 screwdriver, and the soldering kit.
Werkzeuge
-
-
Remove the four 2.5mm screws from the back assembly with a Torx #04 Screwdriver.
-
Holding the GPS with a free hand while unscrewing the small screws will help stabilize the device.
-
-
-
Use the plastic opening tool on all four sides of the device to open the Garmin Nuvi LMT2455 Back Panel.
-
To properly remove the back cover assembly pry open both the back and sides of the assembly.
-
-
-
Open the device carefully being wary of the orange band that is going from the screen to the motherboard.
-
Remove the orange band by carefully lifting the lip that connects it to the motherboard.
-
-
-
Remove the two 1.0mm 04# Torx screws from the mother board assembly
-
One screw can be found directly to the right of the battery and one screw can be found behind the orange band.
-
Hold the GPS with a free hand to ensure stability.
-
-
-
Place the screen portion of the GPS face down.
-

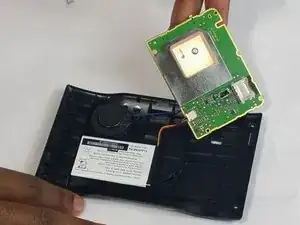

Remove the mother board from the plastic back panel.
-

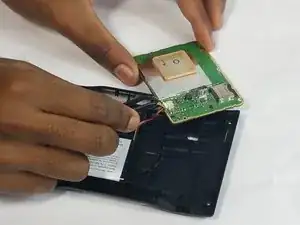

Disconnect the battery with tweezers by gripping the white socket displayed in the photo. Wiggle the white socket out of the mother board.
-
-
-

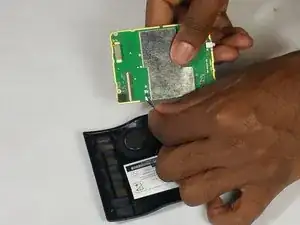

Use a soldering tool to de-solder the connection to the motherboard. Refer to the iFixit Soldering guide to see how
-
To reassemble your device, follow these instructions in reverse order.
