Garmin Nuvi 42LM Screen Replacement

Geschrieben von: Elina Zhukov
  • Kommentare: 1
Garmin Nuvi 42LM Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Sekunden

Einleitung

You will be removing several screws to get to the screen. Eventually, you will pop out the screen to replace it.

  1. CiXOkOcyyQGiWpgU
    CiXOkOcyyQGiWpgU
    FRijYC1NK6blMZau
    lW3RKgSWMJpp512n

    • Remove the four screws on the back of the GPS using the T5 Torx screwdriver.

  2. mfumQvDivGCOFFo4
    mfumQvDivGCOFFo4
    UXBDEjKWa3xA4WEL
    WTWGnNDZWpi4CJDp

    • Pry the GPS open using a plastic opening tool.

    • When prying open the device, use caution to avoid damaging the motherboard.

  3. uJ1PfDBXMjnaPSh6
    uJ1PfDBXMjnaPSh6
    mALtwnjJ3fLMeSxk
    6ersbd2BvWTCiCg3

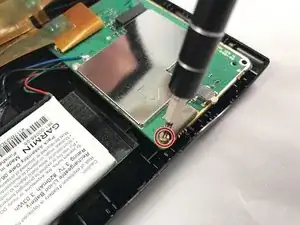

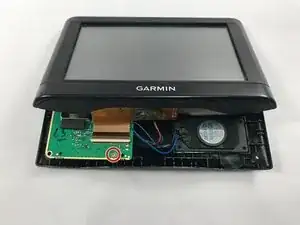

    • Using the T5 Torx screwdriver, remove the two screws located on the motherboard.

    • There are two screws - one in the back and one in the front.

  4. DTYKEQSh513hRF6R

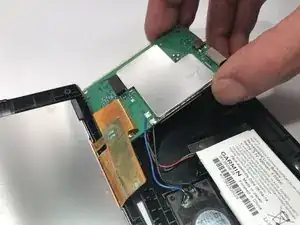

    • Move the motherboard from from its designated location on the GPS.

    • Do not pull on red, green, and black cables when repositioning the motherboard.

  5. 1dQuy1obrdAHVuEO
    1dQuy1obrdAHVuEO
    YWo1ft5McfdBsUm1

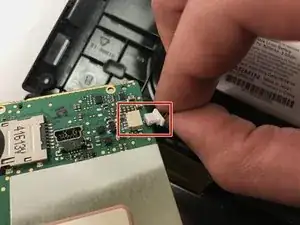

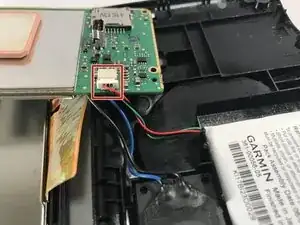

    • Gently unplug the red, green, and black bundled cable to remove the battery.

  6. 1kyHroluJpTFAt2g
    1kyHroluJpTFAt2g
    yFASDX2TNTUQDxrN

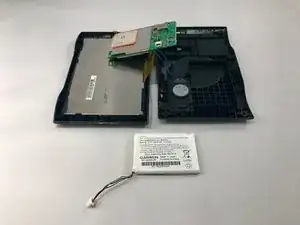

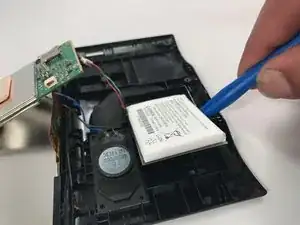

    • Use blue plastic opening tool to carefully pry the battery from the GPS.

    • You might need to use additional force when prying because there is adhesive glue on the back of the battery.

  7. RExpMKRXBBOkRF5F

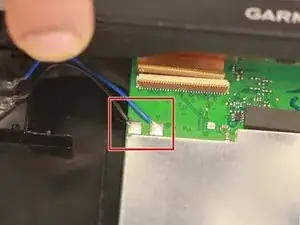

    • Using a soldering iron, desolder the black and blue wires connected to the motherboard.

    • Once the black and blue wires are desoldered, llift the motherboard out and away from the device.

    • Check out this awesome guide on how to solder and desolder connections.

  8. PSRYWulJlDZGK5nF
    PSRYWulJlDZGK5nF
    ImOrVSrTW4O1h62Q

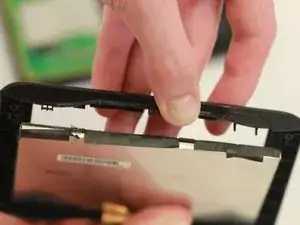

    • Push out the screen by pulling back the black clips.

    • The screen is attached to the motherboard and needs to be replaced with it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
