Garmin Nuvi 42LM Speaker Replacement

Geschrieben von: Elina Zhukov

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

Before replacing the speaker, visit this device's Troubleshooting Page to determine whether you need to replace the speaker. Follow the steps in this guide if you need to replace the speaker.

Werkzeuge

Schritt 1

Remove the four screws on the back of the GPS using the T5 Torx screwdriver.

Schritt 2

Pry the GPS open using a plastic opening tool.
When prying open the device, use caution to avoid damaging the motherboard.

Schritt 3

Use the plastic opening tool to pry the speaker away from the device.
Be gentle, the speakers are connected to the motherboard by blue and black wire.

Schritt 4

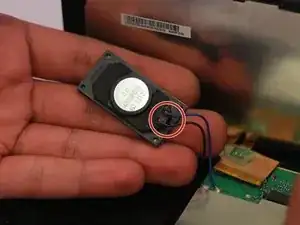

Using a soldering iron, desolder the black and blue wires connected to the speaker.
Check out this awesome guide on how to solder and desolder connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
