GravityLight LED Replacement

Geschrieben von: Brian Gouldsberry
  • Kommentare: 0
GravityLight LED Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

If the white LED light will not turn on, then you will have to open up the device and replace the LED.

  1. kbSEYgCjc6yTDfaw
    kbSEYgCjc6yTDfaw
    lnHEJoYi6CICoJXT

    • Flip the GravityLight on its back and place it on a sturdy surface.

    • Unscrew the three 2cm Phillips #00 screws on the back of the GravityLight’s body.

  2. cRbvBmMQ4fVLRaug

    • Some of the internal pieces may loosen or fall out during disassembly.

    • Firmly grasp both parts of the GravityLight body and pull them apart.

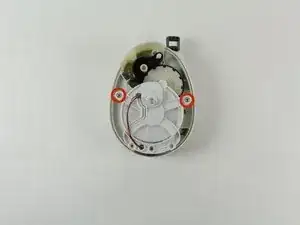

  3. Hx1XlixWhoMhciJX

    • Place the back panel, the larger of the two pieces, on a sturdy surface with its back down.

    • Unscrew the two 2cm Phillips 00 screws on the inside of the back panel.

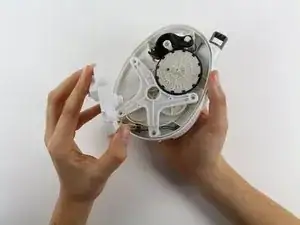

  4. VA2sKFOVO2s2ox22
    VA2sKFOVO2s2ox22
    4Ykf6EnoVAZhhsLZ

    • Hold the LED housing in your hand, but do not separate it too far otherwise you will tear the wires.

    • Lift the LED housing away from the back panel.

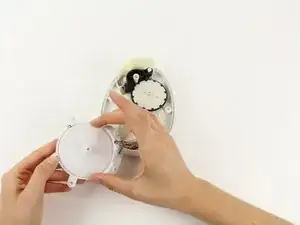

  5. PCNigxLRvTtwdkCW
    PCNigxLRvTtwdkCW
    yPFYHKFOcHkEQREM

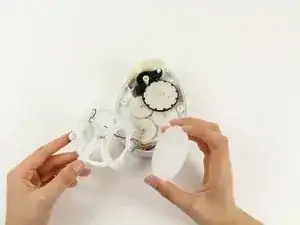

    • Grab the outside of the large, white gear in the LED housing and pull the gear out of the housing.

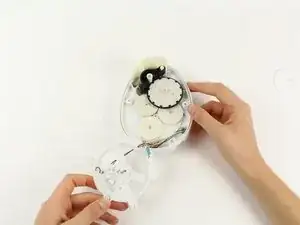

  6. iwy3FCVTexxIiFc3

    • Set the LED housing flat on a sturdy surface so that the back of the LED and the wires are exposed.

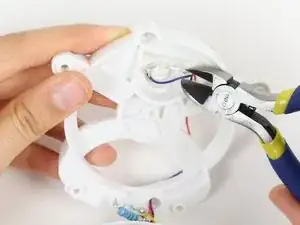

  7. FFJ6UqIyMFUILloO

    • Place the GravityLight's back panel aside.

    • Use the Flush Wire Cutter to cut both the purple wire and the red wire that connect to the LED.

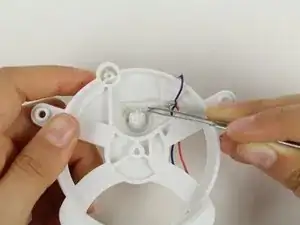

  8. gUNtBS2eHYTjFyAN

    • Take tweezers and bend the leads (the silver wires coming out of the bulb) so that the leads are straight.

    • The straight leads will make the LED easier to take out.

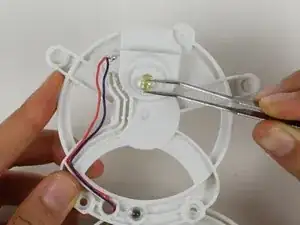

  9. cbZQBrJS5BBXkWXy

    • Flip the LED housing over.

    • Pull the LED out with tweezers.

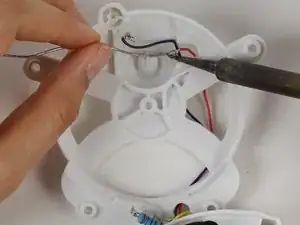

  10. 2BOOybNJy4d3Vs13

    • For reassembly: Flip the LED housing back over.

    • Put the new LED in its spot. Solder the red wire and the purple wire back onto the new leads.

    • Make sure that you pair each wire to the correct lead. If the LED still does not light, switch the wires on the leads.

    • For information on how to solder look here: Wie man Lötverbindungen herstellt und entlötet

Abschluss

To reassemble your device, follow these instructions in reverse order.
