Einleitung
If the white LED won't light up it may be an issue with the motor. You will need to take the Gravity Light apart and replace the motor.
-
-
Flip the GravityLight on its back and place it on a sturdy surface.
-
Unscrew the three 2cm Phillips #00 screws on the back of the GravityLight’s body.
-
-
-

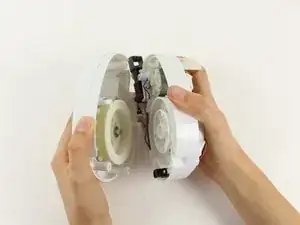

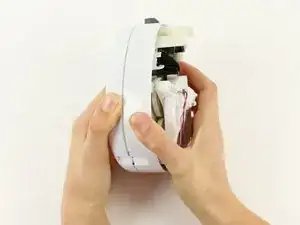

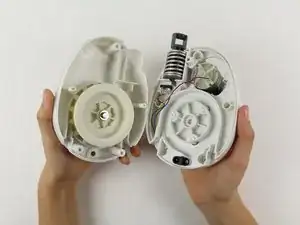

Take the thicker of the two parts, the back piece, and place it face down on a sturdy surface.
-
-
-

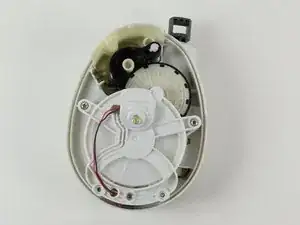

Place the back panel, the larger of the two pieces, on a sturdy surface with its back down.
-

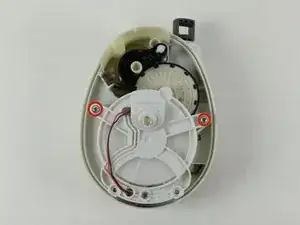

Unscrew the two 2cm Phillips 00 screws on the inside of the back panel.
-
-
-

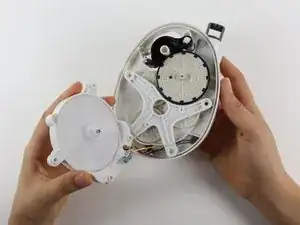

Gently lift off the LED housing (the white disk).
-
Set the LED housing on the table next to the body of the device.
-
-
-

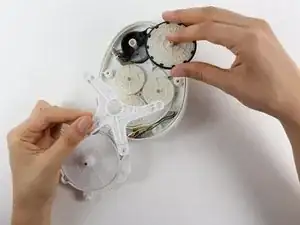

Lift off the white piece with four arms.
-
Lift off the black-rimmed gear.
-
Set both pieces aside in a safe place.
-
-
-

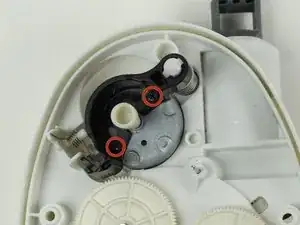

Place the middle section flat with the side that holds the gear system down and locate the back of the motor.
-

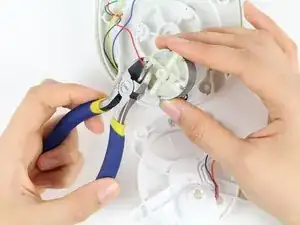

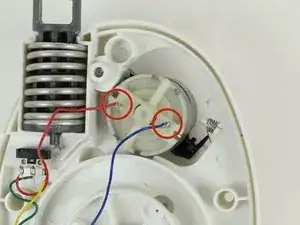

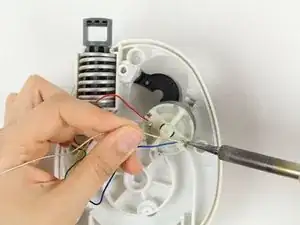

Lift the motor out of the middle section. Using the flush wire cutters, clip the red and the blue wires located on the motor's back.
-
To reassemble your device, follow these instructions in reverse order.
