HMDX Chill Motherboard Replacement

Geschrieben von: Jourdan Holubasch
  • Kommentare: 0
HMDX Chill Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

When the HMDX Chill is not functioning and all other attempts at fixing the issue have been made, the issue will most likely located in the motherboard. This guide will show how to locate and replace the motherboard of the HMDX Chill.

  1. TnKRyOvVfFRkVBUp
    TnKRyOvVfFRkVBUp
    qauVXHvCU5jBHe1h
    GcRLoLvFs2TUL4rM

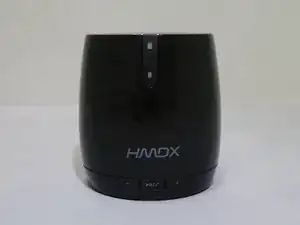

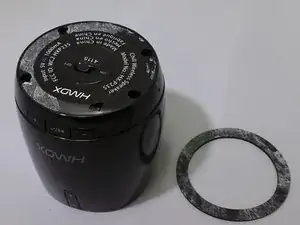

    • Insert a metal spudger under the rubber base.

    • Pry the rubber base off.

  2. 5yZObJVXxJHVaqyC

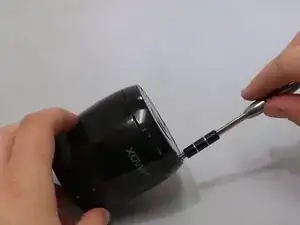

    • Use a Phillips #1 screwdriver to remove four 9 mm screws from the base of the device.

  3. DWbpTLqxR13KVSsE
    DWbpTLqxR13KVSsE
    iQlrydWxMRSvWZEy

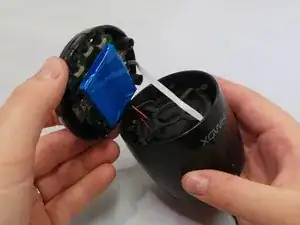

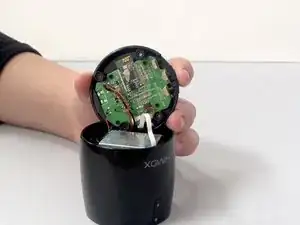

    • Grip the base of the HMDX Chill.

    • Pull the base upwards.

  4. PfAbIFBbWuoPgDdW
    PfAbIFBbWuoPgDdW
    xe5RQKBneTMuocb1
    PMj1THoSfDiiIsCt

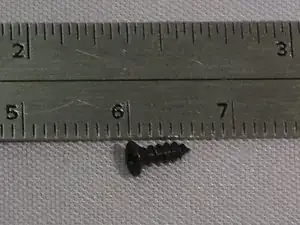

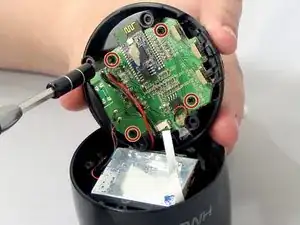

    • Use a Phillips #1 screwdriver to remove the four 6 mm screws that secure the motherboard to the base of the device.

  5. XWdHbQuSOZZmbdGm

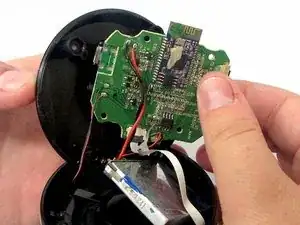

    • Pull the motherboard away from the base gently.

    • Do not pull too hard on the motherboard. It is still attached to the base by wires.

  6. EZHLlcIGGHGHJCJS
    EZHLlcIGGHGHJCJS
    2WPNZhCjUqWt4FEj
    J4djjBZt1AleEFFY

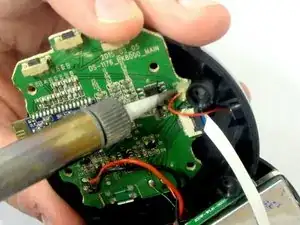

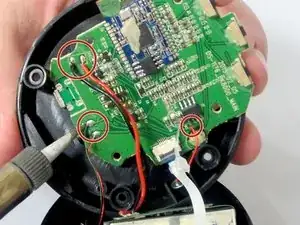

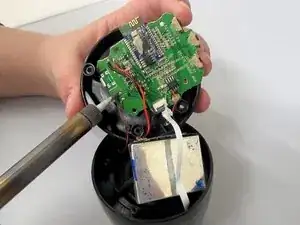

    • Use a soldering iron to desolder the wires connecting the motherboard to the case.

  7. rO5GPPHNWZlKPfxD
    rO5GPPHNWZlKPfxD
    OBWFDh5X3VgVtanW

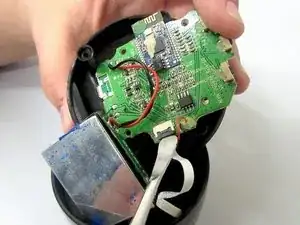

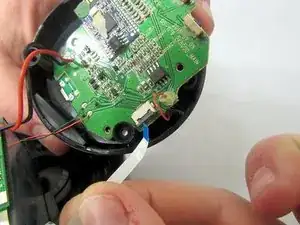

    • Insert the spudger between the case and the wire and move the spudger upwards.

    • This will cause the case to prop open.

    • The wire behind the motherboard will now be visible. Pull this out from behind.

  8. oSTVTOIOBW6N1m5J

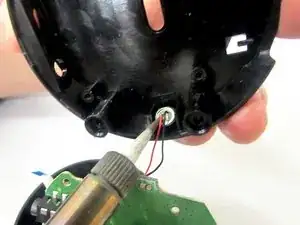

    • Use the soldering iron to desolder the wires connecting the motherboard to the base of the HMDX Chill.

Abschluss

To reassemble your device, follow these instructions in reverse order.
