HP 7 PLUS 1301 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

The battery might need to be changed if the device does not power up, or does not charge anymore. The most challenging step to changing the battery is removing the back cover. The tools listed (or similar) are necessary for the battery replacement.

  1. KCwSPSpkVbGSLhcc
    KCwSPSpkVbGSLhcc
    KgxdUNuJgRvgkdO1

    • Make sure the device is off and not plugged in before starting.

    • Using the Torx T5 screwdriver, remove the 3mm screws on all 4 corners of the device.

  2. uC5ScrCUiLYSQVVw
    uC5ScrCUiLYSQVVw
    QCJO5H6H1dpfCPSi

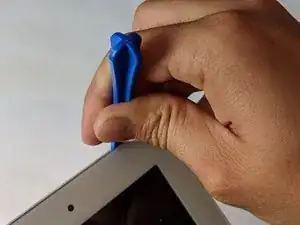

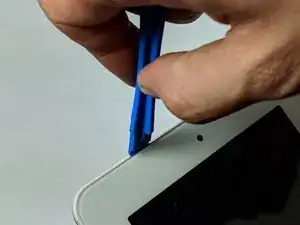

    • Using the plastic opening tool, push in between the front, then slide it around.

    • Slide the plastic opening tool all the way around the tablet to separate the back cover.

    • Be careful when trying to remove the back as the screen can be damaged with excessive force.

  3. cSIwtqXql6JGSTtF
    cSIwtqXql6JGSTtF
    XHXWDDV1SDogMhLH

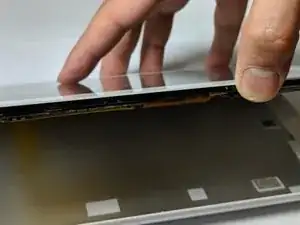

    • Continue sliding the plastic opening tool around the tablet until the cover fully separates from the device.

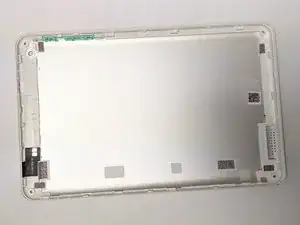

    • Remove the back cover.

  4. SVQorEHEEteG4HuL
    SVQorEHEEteG4HuL
    TwSJfqILb1fE1qSu

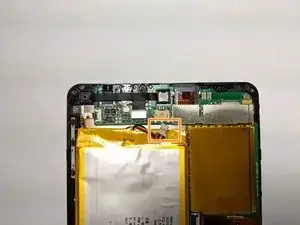

    • Push out the connector to disconnect the battery.

    • Move the battery connector clear of the connector socket.

  5. l2G6EcCnPySZRGHj

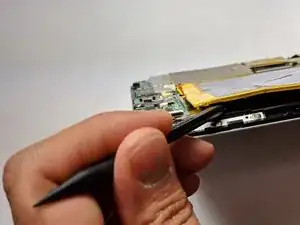

    • Carefully remove the battery by sliding a plastic spudger under the battery. Use an adhesive remover if available under the battery to make it easier for the battery to come off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
