HP 7 Plus 1302 Headphone Jack Replacement

Geschrieben von: Shannon Suttles
  • Kommentare: 0
HP 7 Plus 1302 Headphone Jack Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

25 Minuten

Einleitung

If the device is failing to transmit sound it may be necessary to replace the headphone jack. The most difficult step will be soldering the headphone jack, it is important to make sure you have all tools required and follow the instructions precisely.

  1. Q6CDDLZnSAxXt1cF

    • Using the T5 Torx Screwdriver, remove the T5x3mm screws located in all 4 corners.

    • Device should be turned off and unplugged before starting the replacements.

  2. cokiSUJED6ZbeTDC
    cokiSUJED6ZbeTDC
    nPXqXcfh2MooPJh3

    • Use the plastic opening tool to push in between the front and the back of the tablet.

    • Slide the plastic opening tool around all 4 sides of the tablet to separate the back cover.

    • Be careful when you are trying to remove the back as it can damage the screen if you force it too much.

  3. thSIKNdJcLoCGLfN
    thSIKNdJcLoCGLfN
    AUA2DKYwe1mxTJrU

    • Continue sliding the plastic opening tool around the tablet until all 4 sides are separated from each other.

    • Remove the back cover.

  4. LiWAlXqGSG3kZEmP
    LiWAlXqGSG3kZEmP
    4nDdY1OnKNH63Q4y

    • Push out the battery connector using the spudger.

    • Swing the battery connector clear of the connector socket.

  5. DWY611jEYSi6kNTU

    • Lift the battery from the device.

  6. NUvMZaeo1t11iZ1E
    NUvMZaeo1t11iZ1E
    gPvTd3fQdRy5bHQB

    • Pry the connector that attaches the front and back camera with a metal spudger.

  7. 5rocxrFsDokndrNE
    5rocxrFsDokndrNE
    REmfIwtTovVD4Glx

    • Pull the camera from the connectors.

  8. cRbckwbnZP5SFEfx
    cRbckwbnZP5SFEfx
    sLBdYAFqJ1o242TQ

    • Identify the three T5x1mm screws and remove them with a Phillips #000

  9. BbJMjyELkn2ZAnvV
    BbJMjyELkn2ZAnvV
    rVfIfGSfbI3dFDZl

    • Unplug the connector with the tweezers.

    • Remove the tape.

  10. EIMrV2JSJ31ZeCSg
    EIMrV2JSJ31ZeCSg
    mFGOOTDqVQMvHc1y

    • Flip the ZIF connector with the metal spudger.

    • Pull the ribbon connector out.

  11. hqVGLNeKWHU6l2qU
    hqVGLNeKWHU6l2qU
    6q5uCEDxI4Dxwemq
    xeMCHNkMFDFODSly

    • Pull the orange tape with the tweezers.

    • Flip the ZIF connector with the spudger.

    • Pull the ribbon connector with the tweezers.

  12. fJuVVXy4SFekYiwd

    • Remove the gray tape below the ribbon connector.

  13. TeT3Kw14rHfE3UiD
    TeT3Kw14rHfE3UiD
    Ic1fLVWuZEYSAF4s

    • Flip the ZIF connector.

    • Pull the ribbon connector out with the tweezers.

  14. wBmFBqMkBvyFXEDI
    wBmFBqMkBvyFXEDI
    cSXUPJlVpLZAEQLU

    • Pull the circuit board off.

  15. SNBMiIypJgTwcWOt

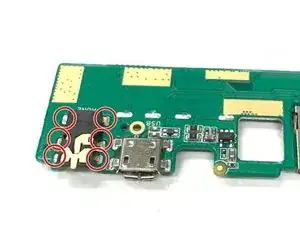

    • Desolder the six points on the headphone jack using the soldering iron.

    • Soldering iron will be hot be careful.

    • For more instructions about how to use the Soldering iron click here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
