HP Mini 1000 Front Display Bezel Replacement

With the case closed, place the Mini 1000 top-side down on a flat surface.

Push both of the battery release latches toward each other.

Lift the battery out of the Mini 1000 from the edge closest to the release latches.

Remove the following two screws:

One 6 mm Phillips screw

One 4 mm Phillips screw

While pushing through the opening with one hand, grasp the left upper edge with the other hand and slightly pull the keyboard towards you.

Once an opening has been established, grasp the keyboard and slowly lift it upwards along the upper perimeter of the top edge.

Lift the keyboard out of the upper case, minding the cable that is still connecting it to the motherboard.

Use your fingernail or the flat end of a spudger to flip up the retaining flap on the keyboard cable ZIF socket.

Pull the cable out of its socket and remove the keyboard.

Use your fingernail or the flat end of a spudger to flip up the retaining flap on the SIM card ribbon cable ZIF socket.

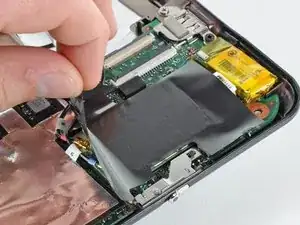

Pull the SIM card ribbon cable out of its socket and peel it off the top of the hard drive enclosure.

Use your fingernail or the flat end of a spudger to flip up the retaining flap on the hard drive cable ZIF socket.

Remove the two 4.5 mm Phillips screws securing the hard drive to the lower case.

Lift the hard drive up and out of the lower case, being careful not to damage its cable in the process.

Using the sharp tip of a spudger, pry and remove the four plastic screw covers from the underside of the HP Mini 1000.

The two bottom covers are short in height and are notched to prevent incorrect insertion

The upper right cover is taller in height and is notched.

The upper left cover is taller in height and is not notched.

Remove the four 7 mm Phillips screws that secure the upper case to the lower case.

Flip the computer over and open the display.

Remove the two 4.5 mm Phillips screws securing the upper case to the lower case.

Wedge the flat end of a spudger in between the upper case and lower case near the bottom right corner of the display.

Carefully pry and rock the spudger upwards to create a small gap between the upper case and lower case.

Continue the previously described motion along the right edge of the upper case to release the clips securing the upper case to the lower case.

Repeat the same procedure as mentioned in the previous step to release the clips along the left side of the upper case.

Grasp the upper case and carefully lift it slightly upwards, freeing it from any remaining clips.

Use your fingernail or the flat end of a spudger to flip up the retaining flap on the TouchPad cable ZIF socket.

Pull the TouchPad ribbon cable out of its socket.

Remove the upper case from the HP Mini 1000.

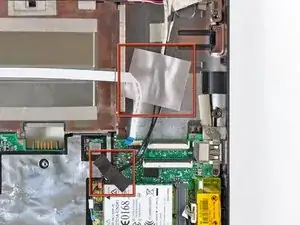

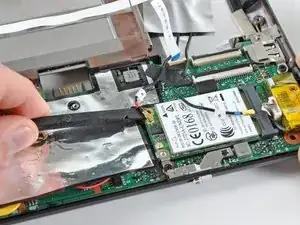

Pry the Wi-Fi antenna connectors (2 total) up off the Wi-Fi board.

Remove the single 3 mm Phillips screw securing Wi-Fi board to the motherboard.

Grasp the Wi-Fi board and lift it straight away from its socket on the motherboard.

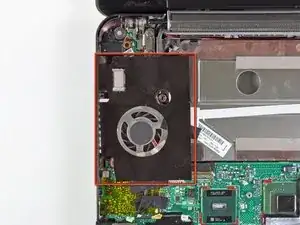

Remove the two 2.5 mm Phillips screws securing the heat sink to the motherboard.

Carefully lift the heat sink off the face of the motherboard and de-route the curved section from next to the fan.

Before reinstalling the heat sink, be sure to apply a new layer of thermal paste to the CPU. We have a thermal paste guide that makes it easy.

Use the flat end of a spudger to pry both antenna connectors up from their sockets on the Wi-Fi board.

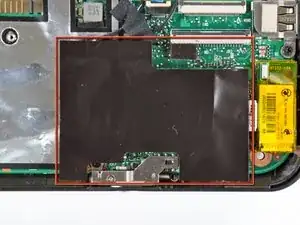

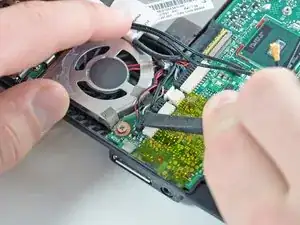

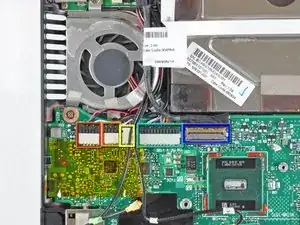

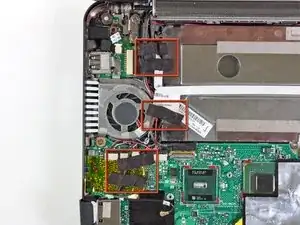

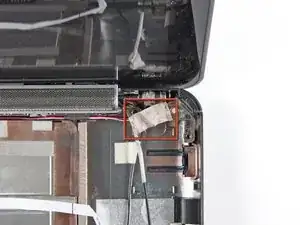

Use the flat end of a spudger to disconnect each of the following connectors from their respective sockets:

Speaker cable

Microphone cable

Fan cable

Power cable

Display data cable

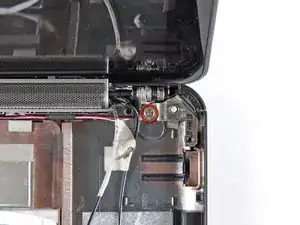

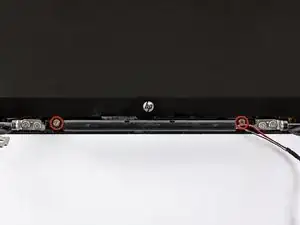

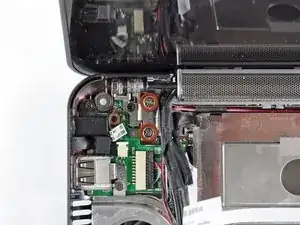

Remove the single 5 mm Phillips screw securing the right display hinge to the lower case.

Remove the two 5 mm Phillips screws securing the left display hinge to the lower case.

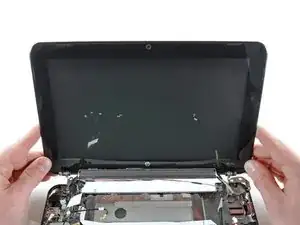

Lift the display out of the lower case, minding any cables that may get caught.

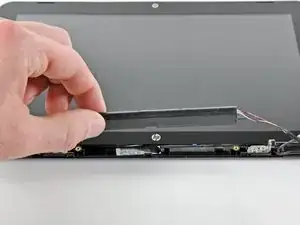

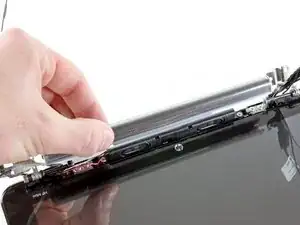

Use the edge of a plastic opening tool to pry the left side of the speaker grill away from the display assembly.

Continue prying along the center of the speaker grill.

Pry the right side of the speaker grill away from the display assembly.

Remove the speaker grill.

Remove the two 4.5 mm Phillips screws securing the speaker assembly to the display.

Remove the speaker assembly.

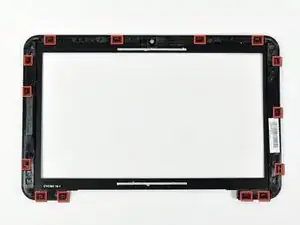

In the following steps you will pry the front display bezel off the rear section of the display. The locations of the retaining clips are highlighted in red.

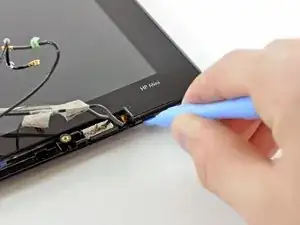

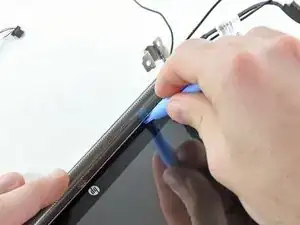

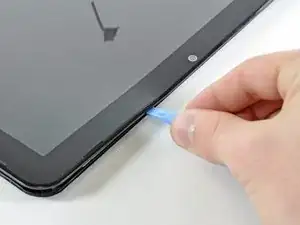

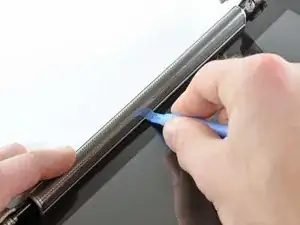

Use the edge of a plastic opening tool to pry up the front display bezel near the right display hinge.

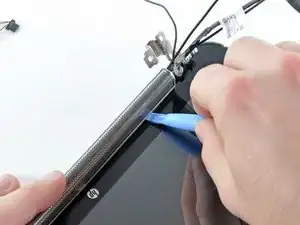

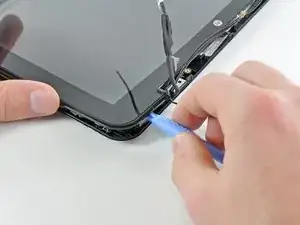

Continue prying to release the clips attaching the front display bezel to the right side of the display's rear section.

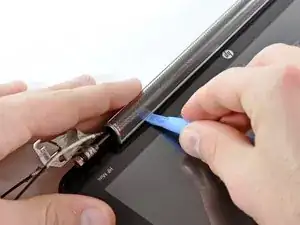

Continue prying up the front display bezel along the top edge of the display.

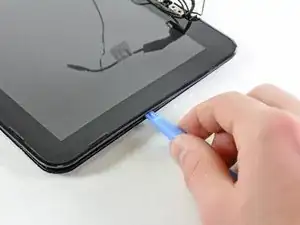

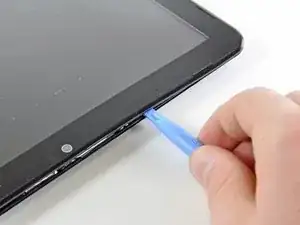

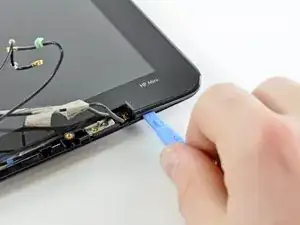

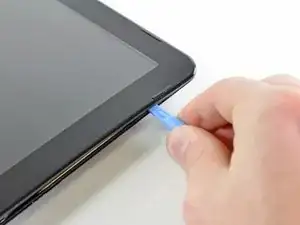

Finally, use a plastic opening tool to release the retaining clips along the left side and bottom left corner of the display.

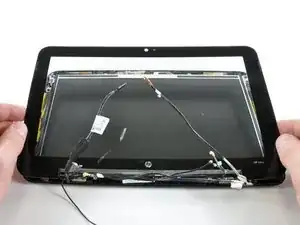

Remove the front display bezel from the rest of the display assembly.
