HP Mini 311 RAM Replacement

Geschrieben von: Christian Santoyo
  • Kommentare: 3
HP Mini 311 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

If you want to increase your computers memory or are having trouble with speed, the RAM is simple to replace in HP Mini 311.

  1. VJSryLLgvJ2J2FiF
    VJSryLLgvJ2J2FiF
    mfk65y1EPtCOYlNZ
    hT3YMWeRyOVFTIFe

    • Lay the laptop on a flat surface, bottom side up and slide the two battery release latches toward the outside of the case.

  2. vUMCijFoCENuCVdB
    vUMCijFoCENuCVdB
    BVeVIFZTjUVsVFuH

    • Slide the battery away from the device to remove.

  3. ZSBawQS6LNhQRNfb

    • With the device still in a bottom side up position, proceed to unscrew the two 4.8mm Phillips 00 screws from the memory shield.

    • The screws will remain in the shied.

  4. XaFJcfdAjSkpYfja
    XaFJcfdAjSkpYfja
    mFBOg3XWi5DNDQfL

    • Lift the memory shield up and remove from the laptop.

  5. rW2hgcWVNy16G2ph
    rW2hgcWVNy16G2ph
    Q5ReMAKOWcxHROme
    hNeoN3IaqVVieWAE

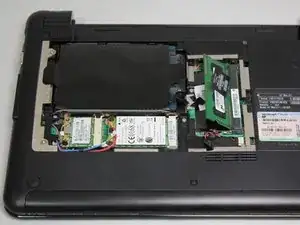

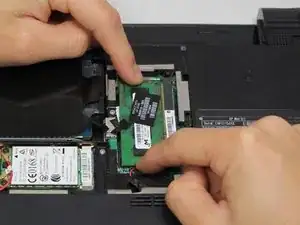

    • Firmly press on the metal pins located on both sides of the RAM.

    • One side of the RAM will pop up to form a 40 degree angle with the body of the laptop.

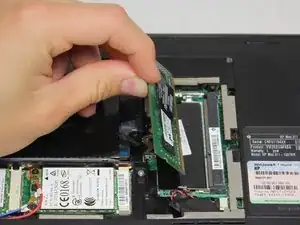

    • Simply grab and remove the RAM from the device.

    The recommended battery goes directly to an iMac battery which is not compatible for the HP 311 Mini HP Mini 311 RAM Replacement

    Christine Fowler -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Christian Santoyo

Mitglied seit: 31/01/13

495 Reputation

2 Kommentare

4 GB modules are not supported it seems.

You may see posts in the HP Support Forum saying that the Mini 311 will accept a 4 GB module. Possibly this is true for the Pavilion DM, but not the Mini 311.

The service manual says only 2GB or 1 GB are supported.

Other people posted that they tried a 4GB module and it did not work.

rafss -

FYI, The link to buy the suggested part is wrong and not compatible.

Christine Fowler -
