Einleitung

Use this guide to replace the heat sink in a HP Pavilion 15-cc561st (product number 1KU29UA).

The heat sink is an important component that keeps the processor cool. It transfers heat from the processor through heat pipes to a fin-stack which transfers heat to the ambient air. Thermal paste helps maximize heat transfer between the processor and heat sink, so it is important to reapply thermal paste before reinstalling the heat sink.

Shut down the laptop, disconnect all external devices, and unplug the AC adapter before beginning. Take the appropriate precautions if your battery is swollen.

You will need replacement thermal paste in order to complete this repair.

  1. 4yvaucKRSXInk3Sa
    4yvaucKRSXInk3Sa
    TLKh6tt6cMpvaiiM
    jDT1gqwY6XofatJe
    • Before you begin to remove the bottom cover, shut down the computer. Disconnect all external devices and unplug the AC adapter. Flip the laptop upside down.

    • Use a Phillips #0 screwdriver to remove five screws from the bottom cover:

    • Two 5.6 mm screws

    • Each of these screws are beneath the two rubber feet on the rear side of the laptop (near the display hinges). You do not have to completely remove the rubber feet to remove the screws; simply peel the top of the feet to reveal the screws.

    • Three 5.8 mm screws

    • Throughout this repair, keep track of each screw size and location to avoid damaging your device.

  2. XbeTtMHNvv3o3uCJ
    XbeTtMHNvv3o3uCJ
    AYYgvF3IQDg5SFNt
    • Insert an opening tool into the space between the display hinges and the bottom cover.

    • Firmly push the opening tool upwards to separate the bottom cover from these areas.

  3. xqFL4TCmPPnKUnx1
    xqFL4TCmPPnKUnx1
    XdQpyDdQVJ1gABt5
    5UbQlsGJuGRsVxVJ
    • Insert your opening tool and firmly push the tool upwards along the rear edge.

  4. U5dhsJTvBFxChIAE
    U5dhsJTvBFxChIAE
    YTBFoccrj4Z2q2Dv
    mqrlVeLFqK2Umy6m
    • Use the opening tool again on the left and right sides.

    • Start prying at the areas closer to the rear of the laptop (near the display hinges) before moving towards areas that are closer to the front of the laptop (away from the display hinges).

    • Pry a little bit on the left side, then pry a little bit on the right side before prying more on the left side again. Working on both sides in this incremental fashion is easier than completely prying one side before starting the other side.

  5. rkRZpjcpDxkx5q2i
    • Lift the bottom cover upwards to remove it.

  6. JwtxM4HTUrTTlNnI
    • Use a Phillips #0 screwdriver to remove the five 5.7 mm screws that secure the battery.

  7. 4LxJpQjRLMYHW1EN
    4LxJpQjRLMYHW1EN
    ODtEt4ruXlLnqRAO
    igQxTvUhLbofUrd3
    • Pull the battery towards the front edge of the laptop to disconnect it from the 8-pin battery connector.

    • Lift the disconnected battery upwards to remove it.

    • Calibrate a newly-installed battery to help your laptop get an accurate battery percentage reading.

  8. rPGUmNDGHSvQGJW4
    • Disconnect the fan cable from the motherboard.

    • Handle the cable by the connector. Avoid pulling on the cables themselves to avoid damaging the cables.

  9. Ww61HlcaJRQPWHR3
    • Use a Phillips #0 screwdriver to remove the three 5.8 mm screws that secure the fan.

  10. DtEvPasOJODhyL1s
    • Lift the fan upwards to remove it.

  11. BTxiCaBDjAoV6WeJ

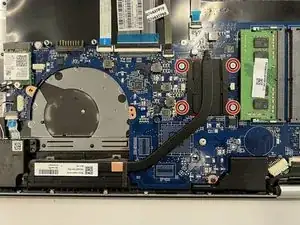

    • Use a Phillips #0 screwdriver to remove the four 3.0 mm screws that secure the heat sink.

  12. UUZly6VNdT5nPTRx
    UUZly6VNdT5nPTRx
    GoXBJd6WX6poPdvH
    Yy4IipcxhUKJmUVA

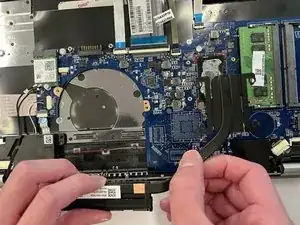

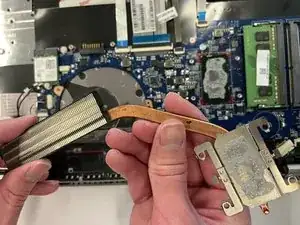

    • Lift the heat sink upwards to remove it.

    • Thermal paste must be thoroughly cleaned from the surfaces of both the heat sink and the processor each time the heat sink is removed. Apply new thermal paste before reinstalling the heat sink.

Abschluss

To reassemble your device, follow these instructions in reverse order.
