HP Pavilion 15-eg0025nr Back Panel Replacement

Geschrieben von: Khin Sandar Win
  • Kommentare: 0
HP Pavilion 15-eg0025nr Back Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to completely remove the HP Pavilion 15-eg0025nr back panel. The back panel is on the underside of the laptop and protects many of the laptop's internal components.

Removing the back panel allows you to access many internal parts of the HP Pavilion 15-eg0025nr that are necessary for most repairs or replacements, such as the battery or fan.

Before attempting to remove the back panel, unplug the laptop and turn it off.

  1. hqOhISeMdMA2yBWJ

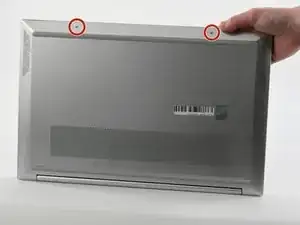

    • Unplug and turn off the laptop before removing the back panel

    • Flip over the computer so that the back panel is facing upwards.

    • Remove the two silver screws on the bottom of the laptop using a Phillips #00 screwdriver.

  2. 6GHjCiB5xsPKHHe4
    6GHjCiB5xsPKHHe4
    2TxDODtKoTSRIuRP

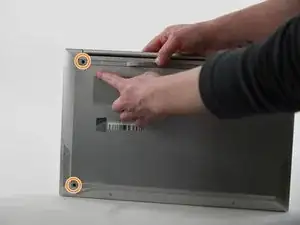

    • Peel up each end of the two gray rubber stoppers using your fingers or an opening pick.

    • This may be difficult if it is your first time removing them.

    • Remove the two black screws underneath the rubber stoppers with the Phillips #00 screwdriver

  3. efOCmtUWLUBhTJnl
    efOCmtUWLUBhTJnl
    RWtCriQ3PmhUgbrO
    qAPRjmVXJKLcopS6

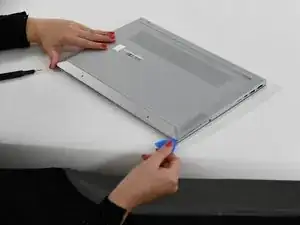

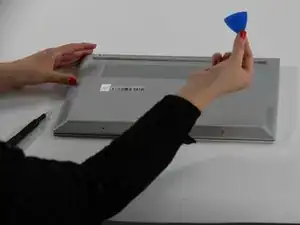

    • Slide the opening pick around the edges of the laptop where the chassis has a seam.

    • You will hear a clicking noise as you undo the clips of the chassis.

    • It may be easier to start with the four corners of the laptop, and then follow through with the sides.

  4. YwZGARldTvLGKmOv

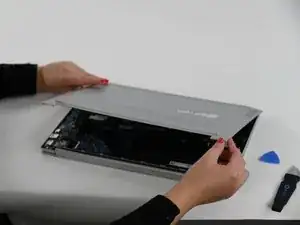

    • Remove the back panel completely.

    • With the back panel removed, you can now access parts of the laptop such as the fan or the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
