HP Pavilion dv4000 Heat Sink Replacement

Geschrieben von: Ashukang Kima Tabong
  • Kommentare: 0
HP Pavilion dv4000 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

The heat sink draws heat away from the computer to cool it. The heat sink can often become dirty or need a new application of thermal paste to function properly.

  1. aTXeJNlKuR4jFAlj

    • Turn the laptop upside down with the battery compartment facing you.

  2. tlWv1RkHSvND3qRB

    • Slide the battery release latch to the right and hold in place.

  3. LgOaNBemmKMtydZd

    • Lift the front edge of the battery up and remove it from the compartment.

  4. 3KWZy5cD1iYtpSWn

    • Position laptop with heat sink compartment facing you.

    • Locate the one 2x5 mm Torx screw.

  5. PDns3paaghBpTu6l

    • Remove the one 2x5 mm Torx screw securing the thermal cover with a #6 Torx screwdriver.

  6. 41tUlhcJvyD3nBxJ
    41tUlhcJvyD3nBxJ
    VegL13EsuARc2ksP

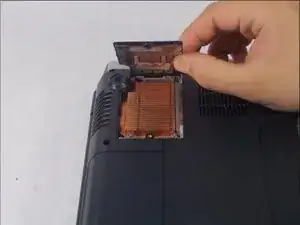

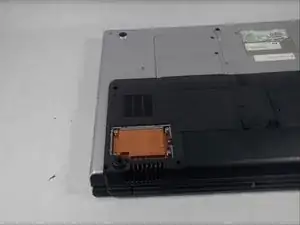

    • Lift thermal cover to reveal heat sink.

    • Remove and set aside thermal cover.

  7. MeRZViVCC3fAEKLa
    MeRZViVCC3fAEKLa
    UAZBvqXZMR2dyLON

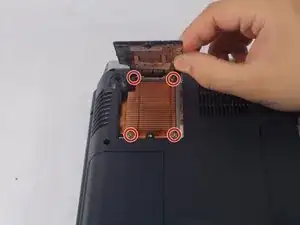

    • Locate the four screws on each corner of heat sink.

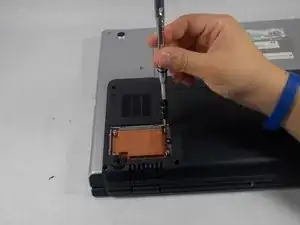

    • Unscrew the four 2x12 mm screws with a #00 Phillips screwdriver.

  8. nBZ2eYJJYEjNrAhX
    nBZ2eYJJYEjNrAhX
    RBKAc1vPQ4RGM5rJ

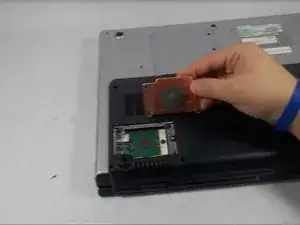

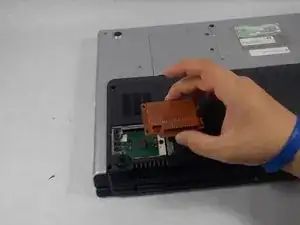

    • Grab sides of heat sink and carefully lift from compartment.

    • Due to adhesive bonding of heat sink to base, wiggling it side to side before lifting might help removal process.

  9. p3vRFtUw3bUCNETU

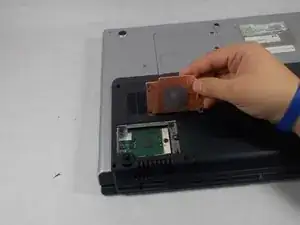

    • To reapply thermal paste, check out iFixit's guide here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
