Einleitung

Tried everything else to fix performance issues with your computer, but still having problems? You can try replacing your CPU.

We only recommend this for advanced users who are very comfortable with repairing their devices. For help applying thermal paste, you can reference the iFixit Thermal Paste Application guide.

  1. LpUmbaBmFsHvSeyZ
    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Flip your device over so the bottom panel is facing up.

    There is no realistic risk of electric shock on a laptop. However, is it still advisable to disconnect power plug and battery before opening as there is a real risk of accidental damage by short-circuit.

    antoniotavares -

  2. KMQLlhuhaNeJTtQV
    • The battery is held in by a latch in the front and tabs in the back.

    • Slide the lock switch left, towards the center of the computer.

    • Lift up the battery, rotating it up and away from you, then pull it out.

    • To put the battery back in, line it up with the battery bay and the holes for the tabs. Then let the battery rotate towards you and press down until the latch engages and you hear a click.

  3. hFfPDtwIAJlKO2X6
    • Unscrew one Phillips #1 screw from the back panel.

    • The screw is on a spring and attached to the panel. It will pop up, but will not separate from the back panel.

  4. d3nOOKoWVQsUh5G5
    d3nOOKoWVQsUh5G5
    YUZwsOaagB6XSbFU
    • Slide the back panel down and pull it up.

  5. AOUTtpeDZMcvIHVG
    AOUTtpeDZMcvIHVG
    SLVAwmg1WqleDJFS
    • Static electricity can damage the components of your laptop. Make sure you are wearing an anti-static bracelet before you touch the hard drive.

    • Using the black tab on the connect and/or a prying tool, lift up to disconnect the black hard drive cable from the green circuit board.

    • Pull the black cable up and out of the back panel. This will make taking the hard drive out much easier.

  6. loC2Riw1nWqdEWAe
    loC2Riw1nWqdEWAe
    MtqcgxLYedy3Eyll
    • Gently pull up on the plastic tab attached to the hard drive.

    • Pull the hard drive up and to the right to remove it completely from the laptop.

  7. 2KVhYWKwGG2ZsQfX
    2KVhYWKwGG2ZsQfX
    QnAkBtJPmIJ2Yqjr
    • Use your fingers, plastic opening tools, or pliers to pull the silver brackets away from the RAM.

    • The RAM should pop up to a 35 degree angle.

  8. LC2qoLRUUAEQupDp
    LC2qoLRUUAEQupDp
    YYUQZELTcoGvIPdI
    • Gently pull the RAM straight out in the direction it currently is orientated.

    • When inserting new RAM, place the RAM in the black housing at a 35 degree angle (it will fit loosely), then push down until it clicks into the silver brackets.

    • This computer supports two sticks of RAM. To add a second stick, repeat the above step with the upper black housing. (Ensure that you have the correct size and type of RAM before trying to add it).

    This laptop only supports up to 8 gig of ram (2x 4)

    Kip Bunn -

  9. bG3BwjpWtkBV3dJm
    • Use a Phillips #1 screw driver to unscrew the black 4 mm Phillips #1 screw on the wireless card.

  10. MBiaZbCneM2H1YZZ
    MBiaZbCneM2H1YZZ
    ZxMeFx3Zsx23kDtN
    • Use a plastic opening tool to lift the wireless card out of its slot.

    In replacing the wireless card, I found it easiest to insert the wireless card and screw down before reattaching the wires. A strong pair of forceps or tweezers helped align the male and female connectors, which are quite small.

    jawolf3 -

  11. x2vKrOMShkNrDGDs
    x2vKrOMShkNrDGDs
    RNysN2yx61qB4WK2
    • Pull the black and white wires up and off of the wireless card.

    • Remove the wireless card.

  12. scBS4fcEFgV1ZNoC
    • Remove sixteen 7 mm Phillips #1 screws.

  13. E3oWHOHb6EFRSaL4
    • Unscrew the 7 mm Phillips #1 screw next to the keyboard icon.

    The CD/DVD drive can also be removed at this point to prevent it from slipping out of the case during repair. Simply slide it out. (remember to re-install before replacing the back panel screws)

    Kip Bunn -

  14. vZv2BYXcEJr3UDZB
    • Flip the laptop over and open the screen.

  15. tXr2pScHY3HIZyPu
    tXr2pScHY3HIZyPu
    ZNo6WXhNPv4ouYWY
    • A ribbon cable is attached to the back of the keyboard. Avoid lifting or moving the keyboard more than a couple inches before you disconnect the ribbon cable or you may damage it.

    • Carefully pry up one of the top corners of the keyboard with a prying tool. Slide the tool along the top of the keyboard to release it from the housing. Pull the top of the keyboard towards you an inch or two.

    • The keyboard may make some cracking noises as you pry it from the casing. This is expected.

    • Pull the keyboard up and away from you, as it is held in by clips in the front. It is not yet disconnected.

  16. HHDjSlAAZWKYPaUS
    • Gently turn keyboard over, towards you, to reveal the silver cable ribbon.

  17. yeKIAHgaAC1RxPGU
    yeKIAHgaAC1RxPGU
    GnQPhyQV1QFJb2mZ
    HZy3L2hFYr32LMUB
    • Using a prying tool, flip the black clip up and to the right. Pull the silver cable out and to the left, the keyboard is now detached from the laptop.

  18. ZYi42GurB3vGlhUX
    • Unscrew the four 7 mm Phillips #1 screws on the board.

  19. onZeOyMy3L5TsZHv
    onZeOyMy3L5TsZHv
    McT1fjkY1LyGJQEA
    AfXELhFGrFOi4I3D
    • Use a plastic opening tool to lift the white clip up, towards the screen.

    • Pull the white cable with blue head, away from the clip.

    Petit oubli: Il faut aussi déconnecté la nappe qui se trouve en haut à gauche.

    Jay -

  20. TmlRePgJFb45mENu
    TmlRePgJFb45mENu
    1RudKp52jGwjrWQO
    • With a plastic opening tool, pry open a side or corner of the top panel. Slide the tool around the rest of the panel to release it from the clips.

    • If you have to use a large amount of force, you may not have removed all the necessary screws. Double check to ensure you have.

    • You should hear clips releasing from the board.

  21. HKalrhtgKXRTaHfB
    • Lifting the top panel too quickly or forcefully may damage the speaker cable, which is still attached underneath.

    • Rotate the top panel away from you, keeping the back near the hinge of the laptop to avoid damaging the speaker cable.

  22. CJqGPI5YIWywOURS
    CJqGPI5YIWywOURS
    YFJ2Kg4utbaqFvX3
    • Using a plastic opening tool, disconnect the black speaker connector from the top right of the motherboard.

    • Set aside the top panel until your are ready to reassemble your laptop.

  23. kRSGn2bYpLJ6jdud
    • Unscrew one 7 mm Phillips #1 screw from the bottom left corner of the motherboard.

  24. mZGOJgcjSEqwEvJm
    mZGOJgcjSEqwEvJm
    xKTh66g24LJjbNBd
    • Lift black tab for the CD drive cable in the bottom left of the motherboard.

    • Disconnect it from the motherboard with your fingers or a plastic opening tool.

  25. anBRKKGXlKVMZjvc
    anBRKKGXlKVMZjvc
    G4JNymsQ2eYcPQJt
    Dga5r1WxyXCmSbNg
    • Lift, with your fingers or a plastic opening tool, the large black monitor cable at the top of the left hand corner of the motherboard.

  26. 5tjPiWDEbrLsUKrg
    5tjPiWDEbrLsUKrg
    CxMDyQKtnRXWOhFC
    iKTyiCnck4XXDvdA
    • Use a plastic opening tool to lift the black clip up from the silver cable that's in the upper right hand corner of the computer.

    • Pull the silver cable away from the motherboard.

  27. m56DHAFZ1K21N5OZ
    m56DHAFZ1K21N5OZ
    KqASP3eT4yOuEMGP
    • Using a small amount of force pull the black cable, below the silver cable we just removed, to the right and out of the way.

  28. pJD3PlED3C4yUkb2
    • Lift the right side of the motherboard up at roughly a 45 degree angle and pull to the right to remove it.

  29. ttmeZviZRcseEGpq
    ttmeZviZRcseEGpq
    QLSBKmZC5LmR4iWF
    • Now that the motherboard is out, flip it over and begin working on the back side.

    • Remove the red, blue, and yellow set of wires from the motherboard.

  30. PKT3kh44fZuVllPr
    PKT3kh44fZuVllPr
    aYFBBGWeQlUJL3J1
    • The screws on the heat sink are held in place by screws and stoppers; they will unscrew, but will not come out of the heat sink. Be careful not to loosen them too much or you may damage the bracket on the back of the CPU.

    • Using a Phillips #1 screw driver unscrew the four screws on the heat sink.

    • When tightening the screws during reassembly, tighten them in a cross pattern (start by tightening the upper left screw, then the bottom right screw, then the top right screw, and finally the bottom left screw)

    • Lift the bracket up from the motherboard.

    What type of screw is into the CPU?

    EJude Garcia -

  31. 6JdDg4R5dguCw2tH
    • Since the fan is held on with adhesives, you will likely need a prying tool and a small amount of force to lift the fan up and off of the motherboard.

    • Be sure to apply a light coating of thermal paste to the CPU before you screw the heat sink back on. For help applying thermal paste, you can reference the iFixit Thermal Paste Application guide

    Where can l purchase a fan

    Sherry Ashton -

    This is ridiculous !! why is there not a separate opening/doorway/removable panel so that you can get straight to the Fan ? ? because with this design you literally have to take the whole dam laptop apart…31 steps just to clean or replace a fan ?? who was the moron that came up with this retarded design ??

    I use to think the people at HP were pretty smart…Not anymore…never buying anything from HP again

    bifbarnes -

    I’ve disassembled mine twice with no problems. Try yoga to relieve all that frustration.

    Kip Bunn -

    Excellent teardown. I don't need to replace the fan (yet!), but needed to get the laptop apart to find out why when I opened it yesterday, suddenly it's like the case was being pried open.

    Any idea on whether or not just the back piece of the case can be replaced?? Appears the plastic where the bracket screws into cracked apart, so there's nothing to hold the bracket in place while it pivots open & that was pushing the case apart. Going to Macgyver something for now… and heck, might as well clean it all while it's open, lol!

    Cici -

  32. Jg2C1MRsIHyenbSc
    • Using a flat head screwdriver or spudger, turn the black plastic tab screw away from the CPU.

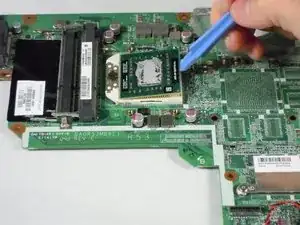

  33. i4seQAoOi2NlZb4Z
    • Make sure you have your antistatic wristband on and avoid touching the gold pins on the bottom of the CPU. CPUs are very fragile, and can be destroyed by small static shocks.

    • Carefully lift up the CPU to remove. Lifting the CPU should require almost no force.

    • When reinserting a CPU, orientate it so that the labels are in line with the label on the ram bay. The CPU should drop right in without using any force. DO NOT force the CPU into the socket. If it does not fit, simply try turning it ninety degrees until it drops into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
