HP Pavilion15z-eh000 SSD Replacement

Geschrieben von: Bryan Segovia
  • Kommentare: 0
HP Pavilion15z-eh000 SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

This is a guide on replacing the Solid State Drive (SSD) of an HP Pavillion 15z-eh000 laptop. Whether replacing a faulty drive or upgrading for more storage, this guide aims to simplify the process. Before starting, ensure the laptop is: entirely powered off, does not have the power cord connected, and has no external devices connected. Use a workstation that is clean and static-free. While working with electronics, It is recommended to wear an anti-static wrist strap to prevent electrostatic discharge. Make sure to avoid contact with pins, leads, or circuitry.

  1. uemf2ATKuLCkDiiP
    uemf2ATKuLCkDiiP
    F3gnEO1QCeoj12g6
    iosDqKJgqlqaLLLb

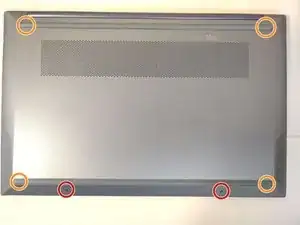

    • Remove the two M2.0 × 5.0 Phillips screws along the bottom of the cover.

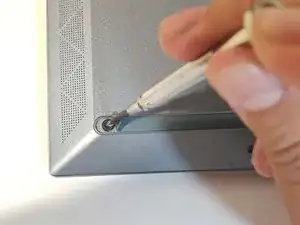

    • Remove the four Phillips M2.5 × 6.5 screws under the rubber foot pads.

    • The rubber pads have adhesive that allows them to be restuck after being lifted. You do not need to completely remove them, only partially.

  2. PdJv1mWZLjs2jdqG
    PdJv1mWZLjs2jdqG
    NPo2RTLHZSHb63Nu
    OfZTKxooaxWsAbAV

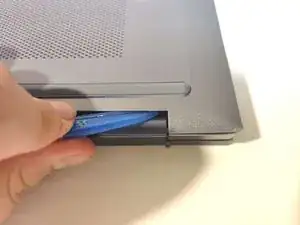

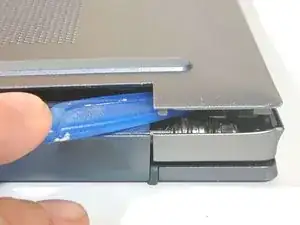

    • Use an opening tool to pry open the bottom case, starting from the hinge.

    • Follow along the edge and use the opening tool to lever it open.

    • Recommended to start from the hinge as it will be easier, but it is possible to start anywhere.

  3. BDgkZbY3AqcUs2iO
    BDgkZbY3AqcUs2iO
    yRECcEXY4LbNyZno
    dLGpf1ymhvjAiWoZ

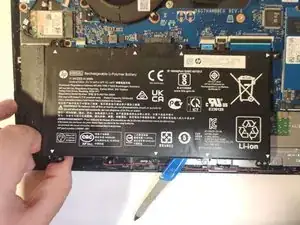

    • Remove the six Phillips M2.0 × 4.0 screws holding the battery in place.

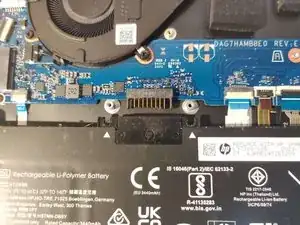

    • Lift the battery slightly and pull it to disconnect it from the connector on the motherboard.

  4. vW5NVTBPYBlNMYhV
    vW5NVTBPYBlNMYhV
    v5PIwOySmO2WlxNY
    sultTUrhVYKOeJeI

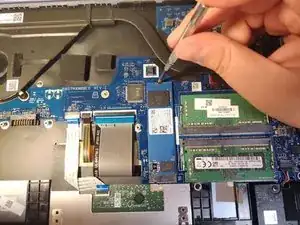

    • Finally, remove the Phillips M2.0 × 2.5 screw that secures the SSD to the motherboard.

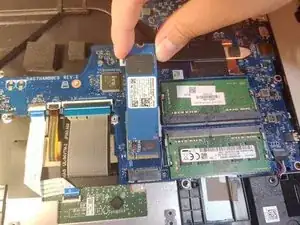

    • Grasp the SSD by the edges and gently pull it out from its slot.

    • After removing the screw, the SSD will partially lift itself. Make note of the angle. When installing your new SSD be sure to insert it at the same angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
