Einleitung
Screen Replacement
- If your device screen on the HP Star Wars Special Edition 15-an051dx is not displaying any output follow this guide to help facilitate the process of replacing your screen.
- After powering your device and there is no output on your screen make the necessary changes with the steps shown below.
- Ensure you have powered off your device completely and disconnected any external power source.
- Gather the necessary tools shown in the tools section and begin your disassembling process.
Werkzeuge
Ersatzteile
-
-

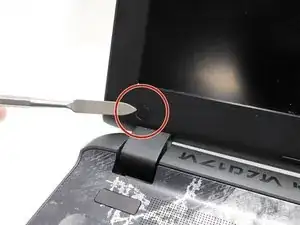

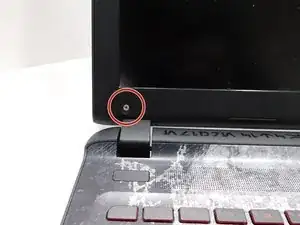

Remove the two circular plastic screw covers, then remove the two 4.5 mm screws in the using a Phillips #1 screwdriver.
-
-
-
Insert a spudger in between the bezel and display, at the top.
-
Move the tool around all sides of the bezel.
-

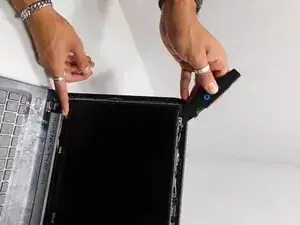

With your finger, lift the inside part of the bezel.
-
Pull the bezel back; it will pop-off.
-
-
-

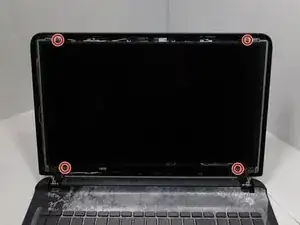

Remove the four 2.75 mm screws using a Phillips #1 screwdriver
-

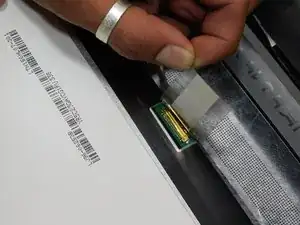

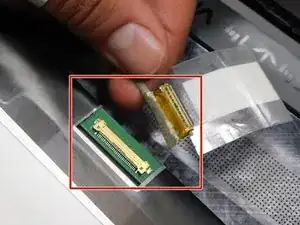

Lift the screen using a spudger.
-
Abschluss
Enjoy your new screen!
Take your e-waste to an R2 or e-Stewards certified recycler.
