HP Windows Mixed Reality Controllers TPC-Q044 Joystick Switch Replacement

Geschrieben von: Clement Cheung
  • Kommentare: 3
HP Windows Mixed Reality Controllers TPC-Q044 Joystick Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

1 Stunde

Einleitung

This guide goes over how to replace the controller's joystick on the circuit board.

If you are experiencing problems with the joystick, you will want to open up the device to fix the problem. A common solution associated with this problem is to take a small dry tissue or towel and clean the parts of the controller to ensure there is no debris limiting the joystick’s range of motion. If that doesn’t work, move the shaft underneath the joystick around to see how fluid it is. If the shaft is the problem, the joystick component will have to be replaced.

To complete this task you will need the indicated screwdriver and spudger. Note that you will need to solder to replace the joystick component which can be a potential danger.

  1. bHUloPpOkJYXnmNy
    bHUloPpOkJYXnmNy
    2P1PDIPYvWvgG4Ws
    tqQFFXEu3vbW3pFl

    • Slide the rear compartment cover in the direction of the arrow.

    • If replacing batteries, ensure the (+) and (-) on the battery match the (+) and (-) labeled in the battery compartment.

  2. MSaAV5nGRThWEQfS
    MSaAV5nGRThWEQfS
    BfiAJmFBkvAKLlMt

    • Remove the four 4mm screws using a Phillips #00 screwdriver.

  3. JdjEmhSkkpC5pZZY
    JdjEmhSkkpC5pZZY
    RwwX1rYXXCZFchAs
    TbjFefRMjlrB34I1

    • Grip the main body and pull the joystick outwards until the entire front panel pops off.

    • Remove the 6mm screw in the corner of the joystick well using a Phillips #00 screwdriver.

  4. UnZJe3XSEkqXWUwF
    UnZJe3XSEkqXWUwF
    eYEubqqQYQTvK35o

    • Use a spudger to pry apart the two halves of the assembly.

    • Work slowly, prying a small section at a time until the halves are completely separated.

  5. WwRBYFjI2rOUKBpB
    WwRBYFjI2rOUKBpB
    gWVdU3lyTRRZoA1R

    • Using a Phillips #00 screwdriver, remove the four 4mm screws located on the joystick circuit board underneath the top half of the controller.

  6. 5tDcghA4msVZAEeZ
    5tDcghA4msVZAEeZ
    Whx6JLnMDRmxHZor
    BJHsXYtcKrkyCOOn

    • Remove the orange flat cable by pulling the orange tab parallel to the circuit board.

    • Release the blue flat cable by lifting up the white latch with a spudger.

    Any idea if I can buy a replacement ribbion cable

    Randy Pellerin -

  7. UMAfCmhuZP4I1AbL
    UMAfCmhuZP4I1AbL
    osXyRBusMTY6xgJP

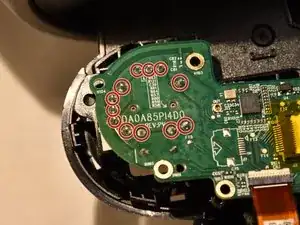

    • The joystick controller is soldered directly to the circuit board. You can find instructions for removing soldered components here.

    • The joystick controller is secured by 12 solder connections. Once these have been desoldered, the controller can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Clement Cheung

Mitglied seit: 24/01/19

625 Reputation

2 Kommentare

You can solder replacement Xbox One analog sticks right? I have some stick drift and can’t test this until my university reopens, but when it does I want to try fixing it.

Edit: I have the Dell controllers but they seem identical to the HP ones in this guide.

Vincent -

I think this might be the stick: https://www.mouser.com/ProductDetail/Alp...

Alps RKJXV 23 degree 10K ohm multi-directional switches

I haven’t soldered it yet so do not take my word as fact, it just looks right.

Vincent -
