Basic Information
Use this guide to replace the volume button(s) on your HTC Trophy Windows 7 device. The volume buttons allow you to adjust the devices volume for audio, ringtones, and change to silent mode.
Symptoms of a faulty volume button include:
- “mushy” button when pressed. (Not a solid press or click)
- Press or hold the volume button and nothing happens.
- Volume button is stuck
Before disassembling the device ensure there is no simple solution such as dirt or dust obstructing the button. If you notice an obstruction, try to Clear the Debris.
Special Skills
-
-
Power off the phone before starting.
-
Remove the back panel by inserting the IFixIt opening tool into gap at the top of the rear and prying upward.
-
-
-
Remove the battery by inserting the IFixIt opening tool into the small gap between the battery and the surrounding plastic.
-
Apply a small force towards the bottom of the phone and lift upwards.
-
-
-
Remove the 5 screws holding the two phone halves together.
-
Three 4mm long T5 Torx screws.
-
Press a T5 Torx screwdriver into the void sticker and remove the 4mm long T5 Torx screw.
-
One 4mm long Philips #000 screw.
-
-
-
Insert the IFixIt opening tool into the seem of the plastic around the edge of the phone and pry the two halves apart.
-
-
-
Remove the three screws holding the mother board to the display assembly.
-
One 2mm long Philips #000 screw.
-
Two 4mm long T5 Torx screws in the holes of the plastic.
-
-
-

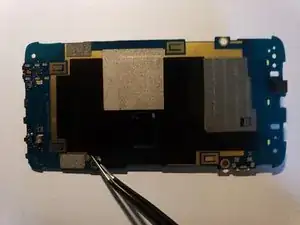

Remove the black tape cover the ribbon cable connectors with tweezers.
-
Disconnect the ribbon cables from the connectors.
-
-
-

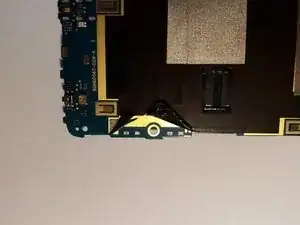

Remove the plastic piece off of the motherboard.
-

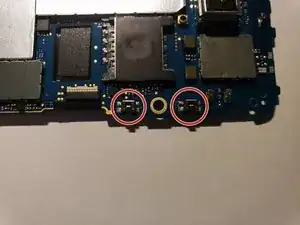

Put pressure outwards to release these clips with the iFixit opening tool and you fingers.
-
To reassemble your device, follow these instructions in reverse order.
