Hamilton Beach 64650 Quick Burst Button Replacement

Geschrieben von: Gwen Davis
  • Kommentare: 0
Hamilton Beach 64650 Quick Burst Button Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

30 - 50 Minuten

Einleitung

This page will guide you through the replacement of the quick burst button on your Hamilton Beach Classic Stand Mixer 64650. This guide is helpful if you are experiencing any problems with using the quick burst button on your device. It is possible that either the button assembly is broken or the spring keeping the button in place is broken, so you'll have to open it to check it out!

  1. oiK5WeKo5adJOSWP
    oiK5WeKo5adJOSWP
    FWOtGAZSrfHa56xg
    nEKLgaZZfGJarPOG

    • Flip the handle on its side. Remove five 3.8 mm Philips #2 screws shown and set aside them aside.

  2. BFuKKFxZ2yX6exSw
    BFuKKFxZ2yX6exSw
    llYW5TnurNOu61fW
    MLgAIOOanDDuaCEB

    • Remove the four 8.6 mm Philips #2 screws securing the motor mount and place them aside.

  3. EeIMKIZkPJJQCLap
    EeIMKIZkPJJQCLap
    osFsV22CqZoRMaBD
    mWq2pSFLFq6PbBuF

    • Carefully pull the motor block out of the case.

    • Collect the two spring located on top of the white beater gears. The springs are held in place with compression, and may fall into the case when the motor is moved.

    • Handle the wires with care to ensure you do not break any of them.

  4. x4I1TNJc6FLyMKrq
    x4I1TNJc6FLyMKrq
    Hd6yGEjaLWgWfHlb
    fOlSAEnerieFv5ug

    • Desolder the six wires connected to the motor using this guide.

    • Make sure to note colors when you disconnect them and remember where to reconnect them later.

  5. h5KfWgsDHDGPqWbs
    h5KfWgsDHDGPqWbs
    vXtPnYyfQXaZPdiU

    • Once disconnected, the motor will slide out easily.

  6. fyJaTwaEpUJZqQYB
    fyJaTwaEpUJZqQYB
    oAHATXZmROMxNY5B
    UHQvXLKW3gJalXEi

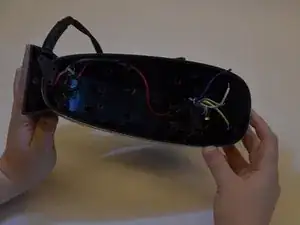

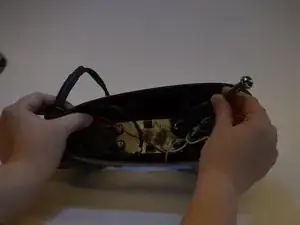

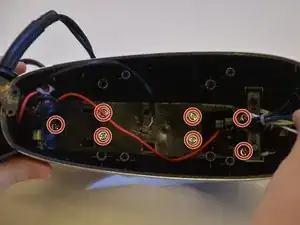

    • Remove the seven 1.3 mm Philips #2 screws that attach the motor casing to the mixer handle and set them aside.

  7. 42wHwgerppaSySAR
    42wHwgerppaSySAR
    1qRgWKTNfUKrZDmS
    wHFvgBSWmvDcERXO

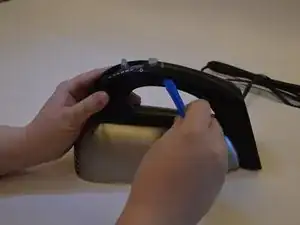

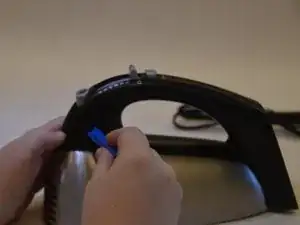

    • Use a plastic opening tool to take off the handle's cap by loosening both ends and then sliding the tool to the middle of the handle.

  8. HnLMB2NBdCVPuVU3
    HnLMB2NBdCVPuVU3
    eZR4PwIdFybIHScg

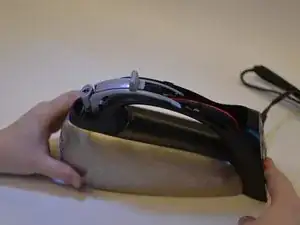

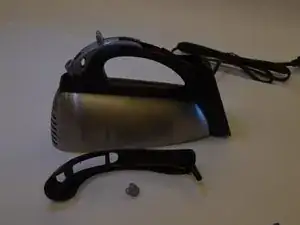

    • Lift the handle cap upward once it is loose.

    • Be careful when you remove the handle cap as the quick burst button likes to fly away.

    • Replace the button assembly as needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
