Hand-Held Blender Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

15 - 45 Minuten

Einleitung

The fix is needed when the motor is worn out and overheats when used. To replace the old motor for a new one a Philips screwdriver (2mm), Tri-head screwdriver (2mm) and a soldering iron are needed. Also, you will need a new motor.

  1. jkfkN4gcCKERbJlg

    • Place the product on a clean and empty surface.

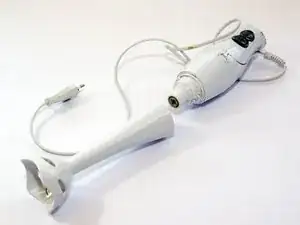

  2. aNFGER1S5FuMCdFY

    • Twist the attachment with the blades from the base of the blender.

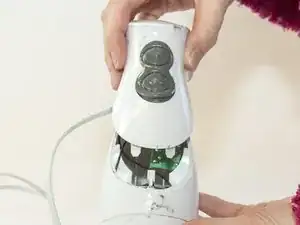

  3. 6AiWdSlR3sbBAFDR

    • Unscrew the Tri-point screw (2mm) on the top to disassemble the top part of the casing.

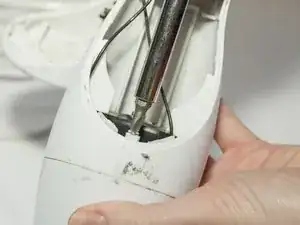

  4. 6vfmZiut6HiOEJIR

    • Unscrew the Phillips (2mm) connecting the middle part of the casing with the bottom part.

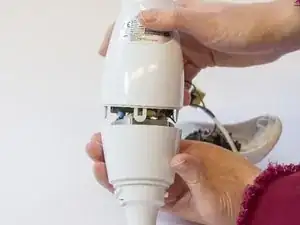

  5. 3oE5FUeqjeoCEkVV

    • Use force to twist the middle part from the bottom part of the casing OR use spudgers to wiggle open the product.

    • This reveals the motor.

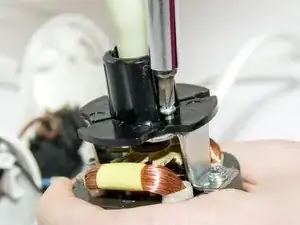

  6. ep1DBWqRYr1ipRGI

    • Lift the motor out of the casing.

    • Unscrew the Phillips (2mm) to disconnect the motor from the plastic part that transfers the motor rotations to the blade.

  7. nPbZYtaY4hu44pxA

    • With a soldering iron disconnect the wires coming from the motor from the PCB.

    • Refer to this How to Solder and Desolder Connections guide to find more information on proper soldering techniques.

Abschluss

To reassemble your device, follow these instructions in reverse order.
