Einleitung

The current printer being worked on is a Tevo Tarantula DIY 3D printer, here are some other printers that will work with this guide:

  • Creality Ender 3
  • Anet A8
  • Anycubic i3 Mega
  • Prusa i3

This guide will help to replace a burnt or faulty connection on the heated bed due to cable strain or when using too high of a temperature. We will be replacing the connection with a much heavier duty connector that will last longer.

Before you follow this guide, ensure that it is the heated bed connection and not the controller board connection. If it is the latter, you may wish to use the soldering technique guide in order to desolder and replace the terminals or solder joints as required.

Disconnect all power before performing any maintenance on the printer to avoid electrocution.

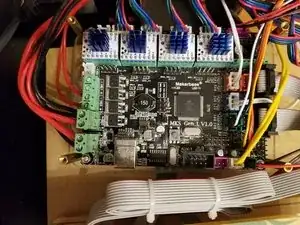

  1. deg5Yfrat1MPvOnT
    deg5Yfrat1MPvOnT
    CW6RlCAqWHWqGsVh
    TsBnIHS2ip2HJ2RG
    • Remove the four screws from the corners of the panel covering the controller board.

    • This may be found in various places of the printer depending on the model of the printer. Refer to the user manual or trace back wires from the heated bed.

    • The most common areas include: mounted on the side of the printer, underneath in the base of the printer, and inside an externally located control box.

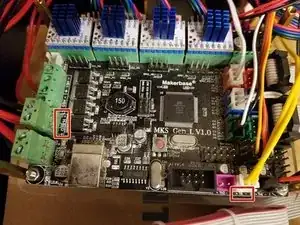

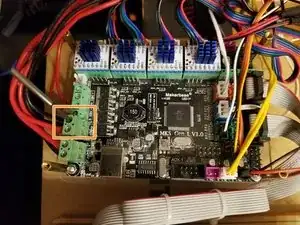

  2. kZFBKoMYNSYUBBMG
    kZFBKoMYNSYUBBMG
    1qiDfGYyPJounXEc
    dUO6cZi65dVTccgk

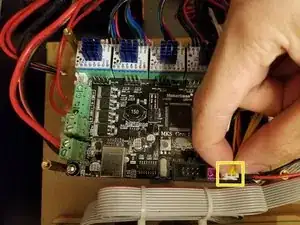

    • Locate the heated bed and temperature sensor connectors.

    • Here on the MKS Gen L V1.0 it is labeled H-BED and TB for Heated Bed and Thermistor Bed. Refer to a Pinout Diagram for your specific board.

    • Common boards include: Creality V1/V2, MKS Gen L V1.0/V1.4, MKS BASE V1.4, Einsy RAMBo, SKR v1.3/v1.4.

    • Remove the connection for the heated bed.

    • Remove the connector for the temperature sensor.

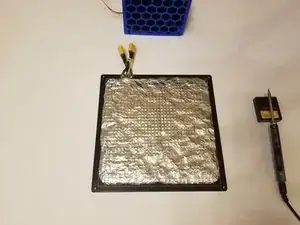

  3. dBASBErojruNTLxg
    dBASBErojruNTLxg
    VR3vABuYshA23Sdp
    myIBSQVLliBEglAC

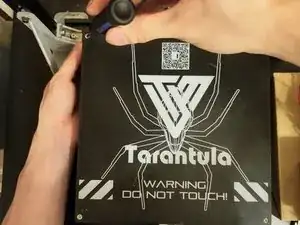

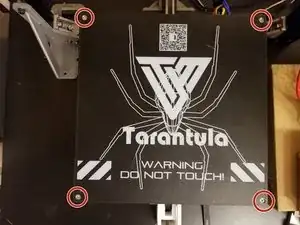

    • Remove four thumb nuts from the corners of the heated bed.

    • Use a screwdriver if needed to hold screws in place while removing the thumb nuts.

    • Remove the heated bed from the Y-carriage.

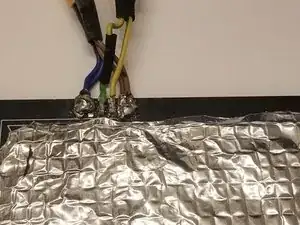

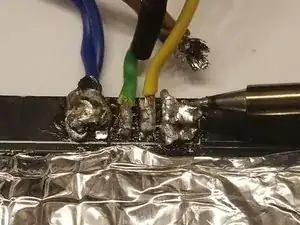

  4. yA5TqrFMqeyIpWaF
    yA5TqrFMqeyIpWaF
    GHJUSyqBRDGw4LRP
    4MpTnorLdhodpCNG

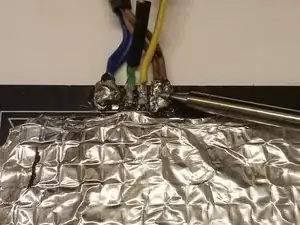

    • Desolder the damaged cable or connector.

    • For tips on soldering, check out the Wie man Lötverbindungen herstellt und entlötet guide.

    • Take note of the polarity and which is for power and the thermistor. You may wish to take a picture for future reference. Red is for '+', Black is for '-'.

    • Do not use force to remove the cable or connector; doing this may rip the pads out.

    • Work in a well ventilated area when soldering; a fume extractor is recommended.

  5. OPadR4HqkoxWkHui
    OPadR4HqkoxWkHui
    OsuEQeliAKUK2cos

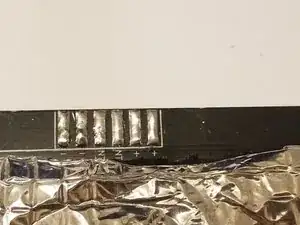

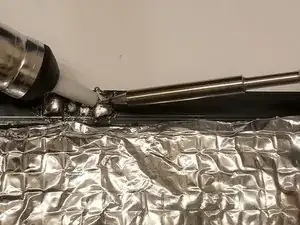

    • Remove the old solder by using a solder pump or solder wick.

    • Re-tin the pads with fresh solder.

    • Use isopropyl alcohol to clean up any residue around the connections.

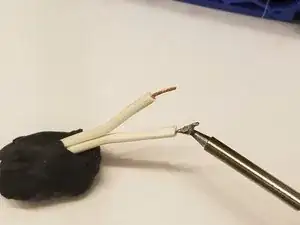

  6. VeoKSUeiGBl1q3ZZ
    VeoKSUeiGBl1q3ZZ
    OiLZGfOoOulhdfxT
    GGnBEHOuhJyPcvPC

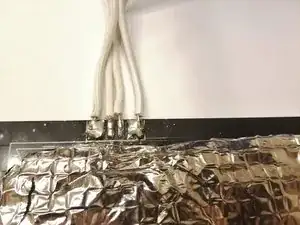

    • Strip 1/4" from both ends of the wire and tin.

    • Check out the following guide for help with stripping wires: Wire Stripping.

    • Solder the wire onto the heated bed.

    • It is safe to bridge the connection if both pads are of the same polarity.

    • If your bed has a built-in LED, polarity will matter, otherwise it does not matter. Polarity does not matter on thermistor.

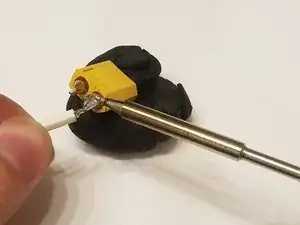

  7. dsIcMscuPYDGPwLU
    dsIcMscuPYDGPwLU
    KCcbuOO3sANOGurQ

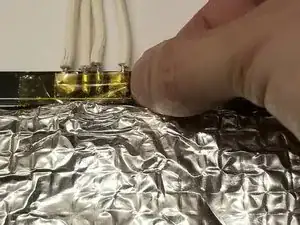

    • Apply Kapton Tape over the connection.

    • Solder an XT60 connector to the other end of the wire.

    • Wie man Heißschrumpfschlauch benutzt

    • Terminate cables coming from the controller board with an XT60 connector as well.

    • If polarity matters, take note when soldering the XT60 connector.

  8. GTwvDjhDYkikiueh

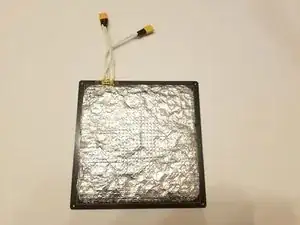

    • Reinstall and calibrate the heated bed.

Abschluss

To reassemble your device, follow these instructions in reverse order. You may want to calibrate the Z-axis end stops and re-level the bed before printing.
