Heyday Suitcase Turntable Volume Knob Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

35 - 55 Minuten

Einleitung

If you need to replace the volume knob of your Heyday Suitcase Turntable, follow this repair guide. If the volume knob has no affect on sound level, it likely needs to be replaced.

Before beginning your repair, be sure to turn off the record player and unplug the power cord.

This guide requires soldering so if you aren't familiar or need a refresher, take a look at the guide for How to Solder and Desolder Connections. Be careful when soldering as the iron is very hot and will burn skin and other items.

  1. cPwGMTSOTLomUFU5

    • Use a Phillips #2 screwdriver to remove the four screws on each corner of the baseboard.

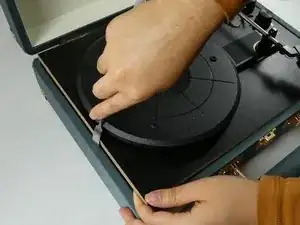

  2. AdfccthXhUIjROwT

    • Use a metal spudger to pry the baseboard off of the case.

    • Be cautious of the cords and circuit located underneath the knob and the lever. Don't pull or yank the baseboard off.

  3. twVvWJXXmWSWSive
    twVvWJXXmWSWSive
    uqbfJa3dmDZCdyEY

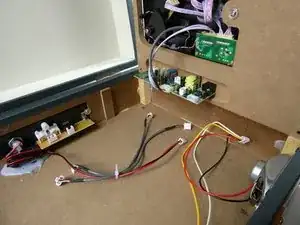

    • Disconnect the cords from the circuit board.

    • Take a picture beforehand so it's easier to put them back during reassembly.

    • Remove the baseboard.

  4. BLHdJDJ1qRtZVo5U

    • Use a metal spudger to pry the volume knob off of the baseboard.

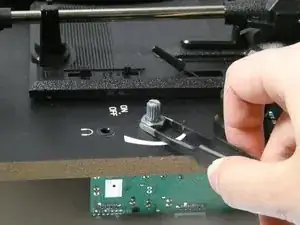

  5. COj5Q31uNqKpU1Ss
    COj5Q31uNqKpU1Ss
    j6GNIFrjstAQESVH

    • Use your fingers to unscrew the nut securing the volume knob.

  6. OuOoVCVUeLLXbhmM

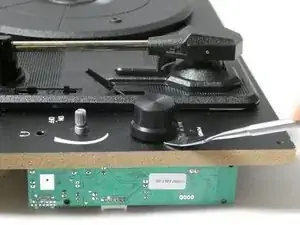

    • Use a metal spudger to pry the power knob off of the baseboard.

  7. uFPNHMr4tVqf5Aqw
    uFPNHMr4tVqf5Aqw
    ivfXGvInTacYbMqA

    • Use your fingers to unscrew the nut securing the power knob.

  8. Z35FN1K5ViuVLYFi

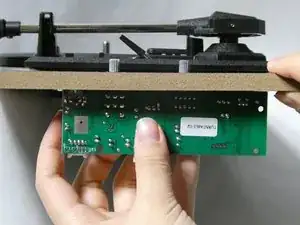

    • Pull the circuit board down from the baseboard to separate them.

  9. wfq3oJWalwsaKFpC

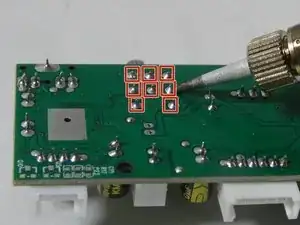

    • To release the volume knob, desolder each of the eight solder joints.

    • Make sure to take proper safety precautions while operating soldering iron. For a review, take a look at the guide on How to Solder and Desolder Connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
