Einleitung

After extended use, the speakers might lose sound quality and require replacement.

  1. ALZwrLhBZPlpOysb
    ALZwrLhBZPlpOysb
    gaS2qSpSXH423UsC
    IoeSGgnCAJPLaEMn

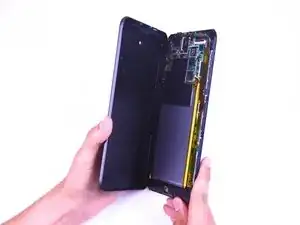

    • Remove the back cover of the device using a combination of both plastic opening tools.

    • Use your plastic opening tool to pry open a corner of the device. Continue using the tool down the side of the device to open it completely.

  2. XGF2BGeetPZpPVyF

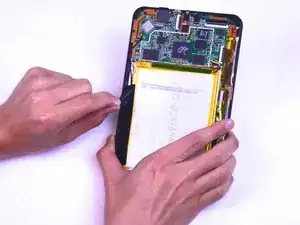

    • Remove the black tape located to the left of the device.

  3. xcAfLAYQPYLsshxO

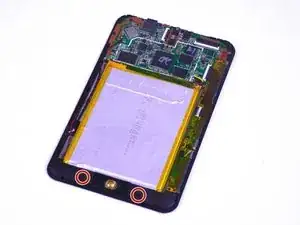

    • Use a Phillips head #00 screwdriver to remove the two 4.43mm screws on the bottom that keep the speakers in place.

  4. JN1G2jq1HRBm3onm
    JN1G2jq1HRBm3onm
    QZOsNAN4qKWvuif6

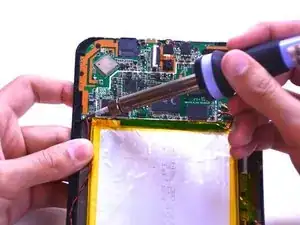

    • Unsolder the red and black wires connecting the speaker to the motherboard. Take a look at this guide to learn how to solder and unsolder connections.

  5. GbB3XZZAywuxZWgM
    GbB3XZZAywuxZWgM
    mWFEFD3L5IHpPgEL

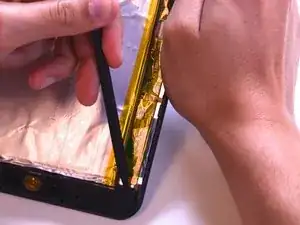

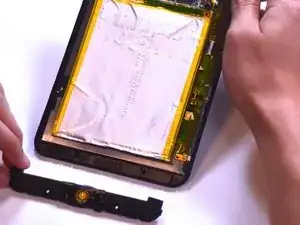

    • Use the spudger tool to remove the speaker panel carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
