Einleitung
This guide will teach you how to replace the battery on your Hover 1 Eclipse. The battery is the power source for your Hover 1 Eclipse. Your battery will need replacing if it is malfunctioning or if it has been damaged. To replace your battery you must have basic knowledge of how to use a screwdriver. You must also be very careful with the wires that surround the battery when following these steps.
-
-

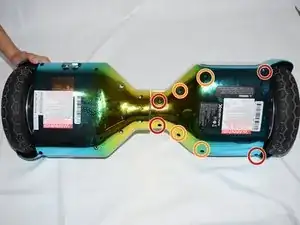

Using a Phillips #1 Screwdriver, remove the four 11mm screws that surround the edge of the plug side bottom shell piece.
-
Using a Phillips #1 Screwdriver, remove the four 13mm screws that surround the edge of the plug side bottom shell piece.
-

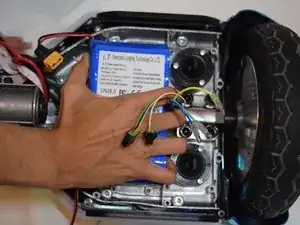

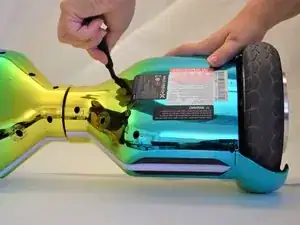

Remove the right side bottom shell piece.
-
-
-

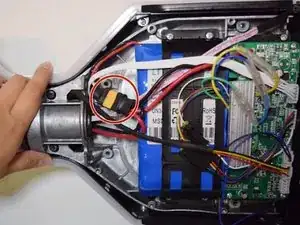

Locate the black and red wires connected by an yellow header, Xt60.
-
Carefully tug on the two sides of the yellow header to disconnect them.
-
-
-

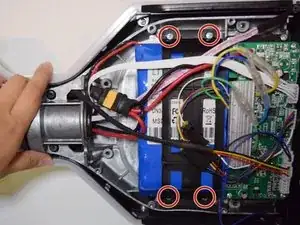

Using a Phillips #1 Screwdriver, remove the four 11mm screws that secure the black plastic keeping the battery in place.
-

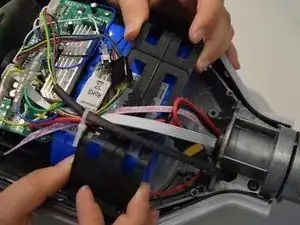

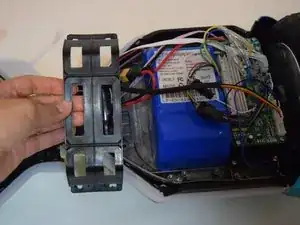

Carefully remove the black plastic from the hoverboard.
-
To reassemble your device, follow these instructions in reverse order.
