How To Replace the Battery on a Conair Trimmer (GMT15NCS)

Geschrieben von: Nicholas Ellis
  • Kommentare: 1
How To Replace the Battery on a Conair Trimmer (GMT15NCS)

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

The battery in the Conair Trimmer (GMT15NCS) can stop working or not hold a charge as well. This guide will show how to replace this battery to give the trimmer longer life.

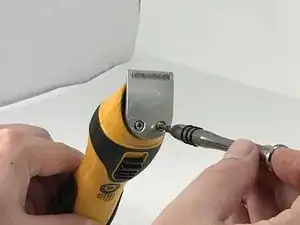

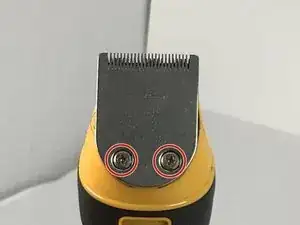

  1. m5oUBZj1w6kANbh1
    m5oUBZj1w6kANbh1
    anKYdmZ5ylBVCeFP
    G2TSGiSTqQ2AqVOB

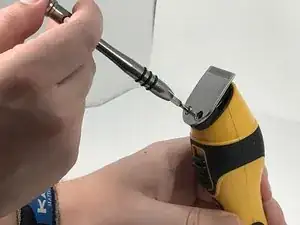

    • Using a Phillips #0 screwdriver, remove the two screws holding the trimmer blade in place.

    • Hold down the trimmer blades to make it easier to remove the screws.

  2. MODFStLY3ROGFTVt
    MODFStLY3ROGFTVt
    q1d5YHxCJKRSTwvW

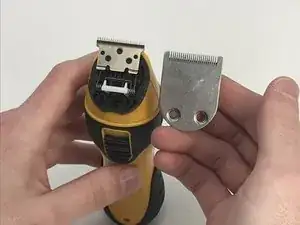

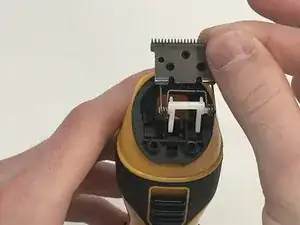

    • Lift both of the trimmer blades off of the plastic guard.

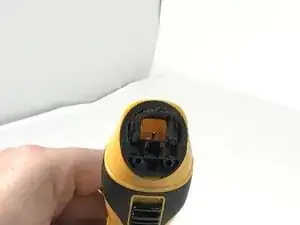

  3. b1wxIlhoUkt4gL2p
    b1wxIlhoUkt4gL2p
    4CswH6hKsyfOCI1a
    IZrKlGxx2ZNPSDrH

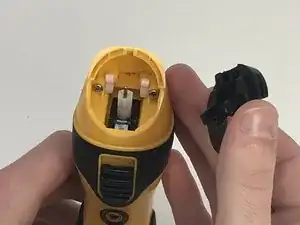

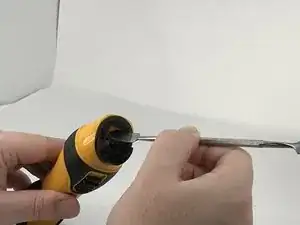

    • Separate the plastic guard from the casing by using the metal spudger tool.

    • Pry up at the top of the plastic guard, NOT the bottom.

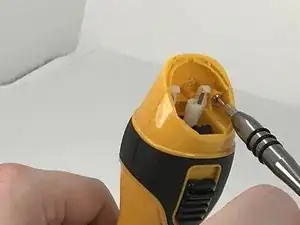

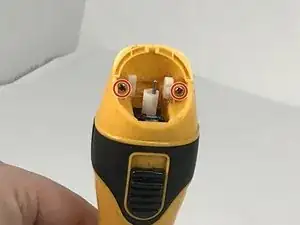

  4. KLQY6TZCc1ULDyoc
    KLQY6TZCc1ULDyoc
    W3vcGQYxcjin4Noa

    • Using a Phillips #000 screwdriver, remove the two screws inside the casing.

    • Tilt the trimmer to prevent the screws from falling into the casing.

  5. psHH4CIRgPYntg5V

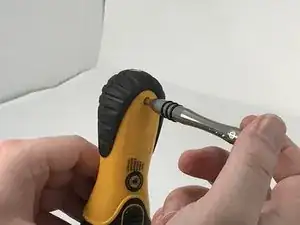

    • Using a Phillips #000 screwdriver, remove the casing screw at the bottom of the trimmer.

    • Tilt the trimmer so gravity helps the screw fall out.

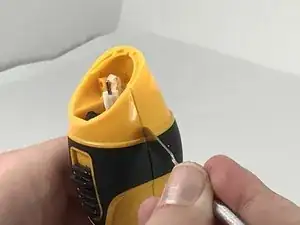

  6. XCc1Bw3G5M1vAQYQ
    XCc1Bw3G5M1vAQYQ
    lT5gDD1VqMkEUaLG
    a2b4NLCTWQpoLUQH

    • Fire Hazard: Be careful not to stick the metal spudger too deep when prying to avoid puncturing the battery.

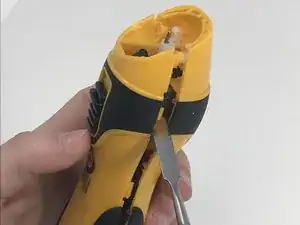

    • Separate the casing at the seam using the metal spudger to release the clips.

    • Use a twisting or prying motion, in any direction, to separate the casing.

    • The same process may be needed on the other side's seam to release clips.

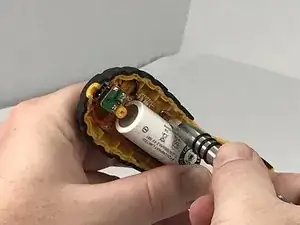

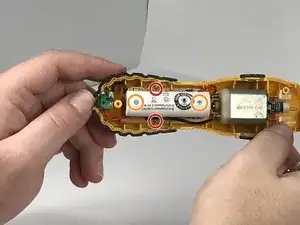

  7. b1EBFXj21KNYZM5L
    b1EBFXj21KNYZM5L
    yCVMOopcWhfhcbjB
    t1qCOUiSdNi5vQlv

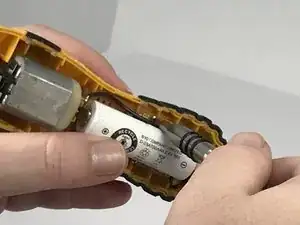

    • Remove the two screws holding the battery setup in place.

    • Take note of the position of the positive and negative terminals of the battery on the setup.

  8. KZmwFBYq6WHMevv1

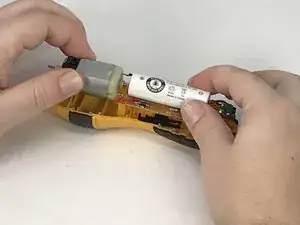

    • Lift the battery setup out of the casing.

    • Take note of how the battery setup lays in the casing.

  9. JGXo2aNTSFCMSQT3
    JGXo2aNTSFCMSQT3
    oO6qXUlCnyo3TOGG
    6GFCjVXovMbOqs3N

    • The soldering iron with be hot.

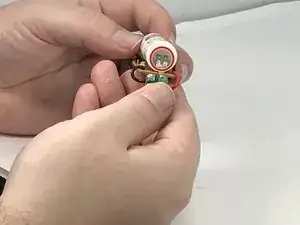

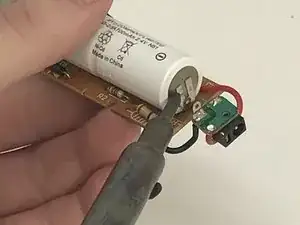

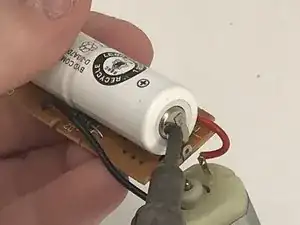

    • Using the soldering iron, desolder the battery at the connection to remove the battery from the setup.

    • Use iFixit's guide on Wie man Lötverbindungen herstellt und entlötet if you are not familiar using a soldering tool.

Abschluss

To reassemble your device, solder the new 2.4 V battery into the setup, and follow the instructions in reverse.
