This guide shows an easy step-by-step repair process that fixes stuck buttons on the Sharp scientific calculator quickly.
It covers the models EL-W531X, EL-W531XG, EL-W531XH, and EL-W535X for Sharp Scientific Write View Calculator. If your device does not display the inputted numbers correctly, it is likely due to sticky keys. This common issue occurs when the buttons become exposed to excessive force, such as being dropped or roughly used. As a result, some keys become sticky, knocked out from their position and unusable.
-
-
Turn the power off by pressing a button named 2NDF located in the top-left corner.
-
Press the button named ON/C in the top-right corner.
-
-
-
Flip the calculator over so that the back panel is facing upwards.
-

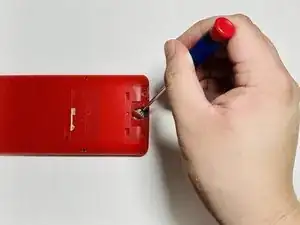

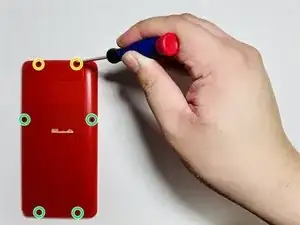

Remove two 5mm Phillips #0 screws from the battery cover by turning the screwdriver in a counter-clockwise direction.
-

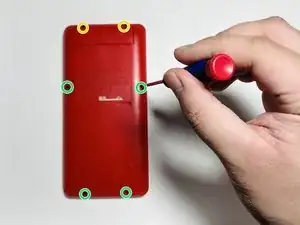

Remove the remaining four 5mm Phillips #0 screws from the back panel cover.
-
-
-
Remove the battery cover.
-
Insert a spudger into the slot located in the top-right corner and pry the battery out.
-
-
-
Remove the front panel by sticking an opening tool into a small gap between front and back panel.
-
Push the tool down with force and pry open the right side carefully.
-

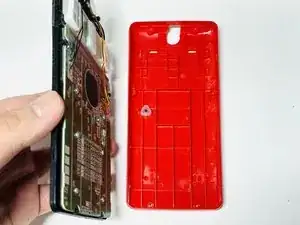

Detach the front panel from the back panel by lifting the front board.
-
-
-

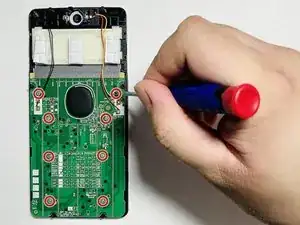

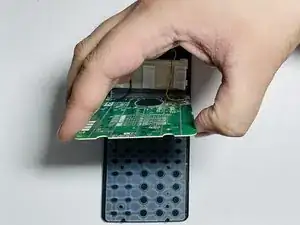

Lift the motherboard by holding both sides and placing it on the top panel.
-

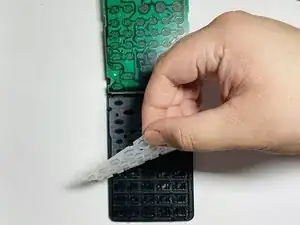

Lift the grey padding upwards by holding any corner and place it on top of the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
