Einleitung

Follow this guide to remove the motherboard in your DualShock 4 model CUH-ZCT1U.

  1. X5wSfxicAxSko1Zg

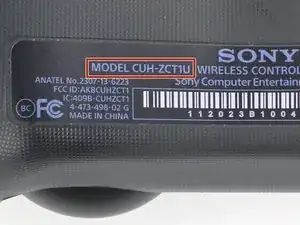

    • Check the model number on the back of your controller. This guide was written using model CUH-ZCT1U. If you have another model, the guide procedure and replacement parts may differ slightly.

    • If you have the second generation DualShock 4, model CUH-ZCT2U, use these guides.

  2. w1u5HLFRbQIP2d2F
    w1u5HLFRbQIP2d2F
    pJuWDOWVmAmLyI6V

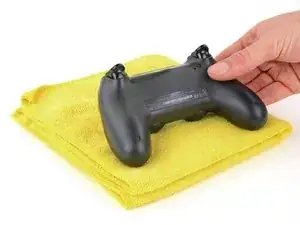

    • If you need to stabilize your controller during this repair, lay it on a soft surface such as a microfiber cloth.

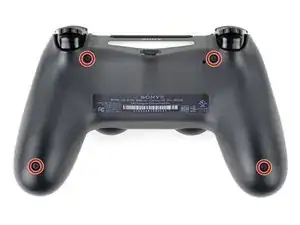

    • Use a Phillips screwdriver to remove the four 6.4 mm-long screws securing the rear case.

  3. NgnhjUOrfuwMJyov
    NgnhjUOrfuwMJyov
    cwbJVa63FyosD31P
    HvrmieUp6UwVcySs

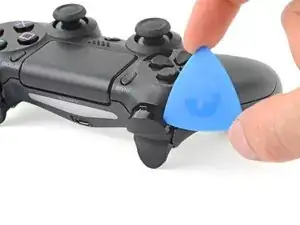

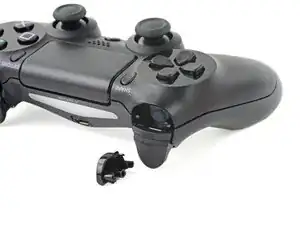

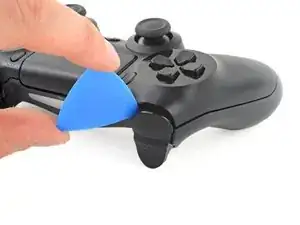

    • Use an opening pick to pry each corner of the L1 button from the front case.

    • Cover the button to prevent it from ejecting out of your workspace.

    • Remove the button.

  4. AJugiOXGbAhQ1BMq

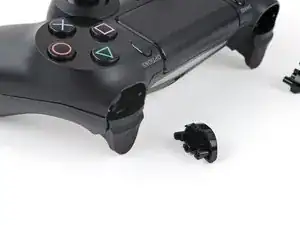

    • Use your opening pick to pry and remove the R1 button, just as you did for the L1 button.

  5. B1xF1WqHbfBoBJtF
    B1xF1WqHbfBoBJtF
    EHOhhIPKfA2DZQfI
    McHyyAQtKhIUOHJO
    • Six plastic clips secure the rear case to the front case. The next four steps demonstrate how to release these clips before you can open the controller.

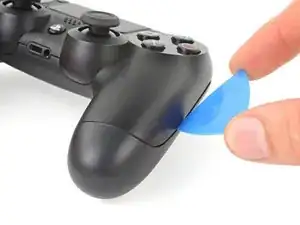

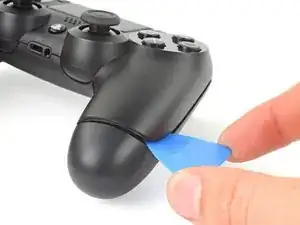

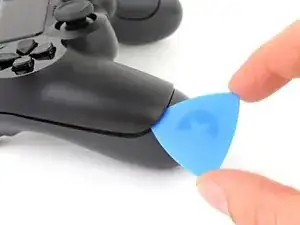

    • Insert your opening pick at a downward angle between the front case and rear case, halfway between the handle and the action buttons.

    • Slide your pick toward the handle and pry up to release the first clip.

    • Repeat this procedure on the other side of the controller to release the second clip.

  6. j1WZgSo6o3TaODlg
    j1WZgSo6o3TaODlg
    eRF1MNwAMFijHfw4
    ocNfVkqvnbtCNBcd

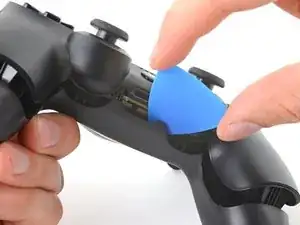

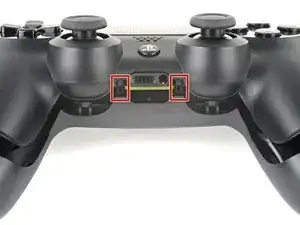

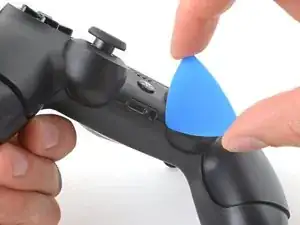

    • Two more clips secure the rear case near the extension port and the headphone jack.

    • Insert your opening pick between the front case and rear case at either side of the ports.

    • Twist your pick to unclip this section of the rear case from the front case.

    • If the rear case feels stuck, insert and twist your pick from different angles.

    • Don't open the controller yet, as it's still held together by two very delicate clips near the triggers.

  7. jf5SveEdOwRIGhJq

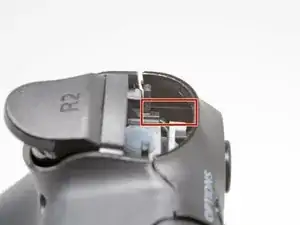

    • The final two clips are very delicate, and must be disengaged from inside the controller. If you break them, don't worry—it won't affect this repair or your controllers functionality.

    • Locate the clips by looking through the gap above the R2 or L2 buttons.

  8. qQcyUfycauX1EUE6
    qQcyUfycauX1EUE6
    YFUPEeSZZqPY4U1E
    OHcMVCNj4VJZWyNC

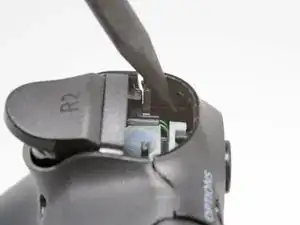

    • Insert the point of a spudger through the gap above the R2 button and push the retaining clip outward.

    • While pushing the clip outward, slowly pull the rear case away from the front case until you feel them separate.

    • Don't fully open the controller until each of the R2 and L2 clips have been disengaged.

    • Repeat this procedure for the clip near the L2 button.

  9. PKcRjl2CIQogpTKp
    PKcRjl2CIQogpTKp
    fip3U51QOcVGEXVJ
    u6ZnJrwXE1clORUW

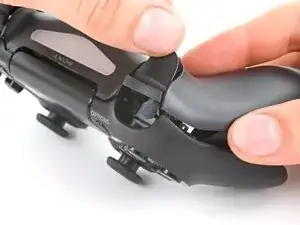

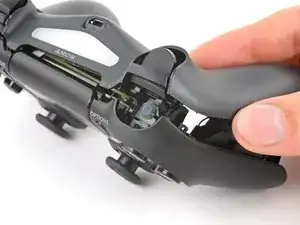

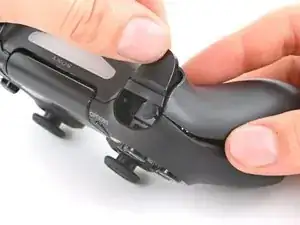

    • Press the R2 button and slide the rear case over it.

  10. KP2vxXGWlaTfsUDK
    • Press the L2 button and slide the rear case over it.

  11. 3hhTNdLYVWIBGeVA
    3hhTNdLYVWIBGeVA
    hfTvkNdF3uokn4Pa
    GXsRCZqUChYpLy1d

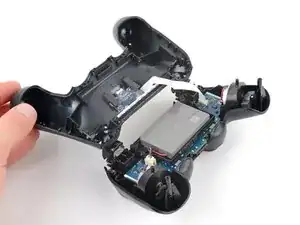

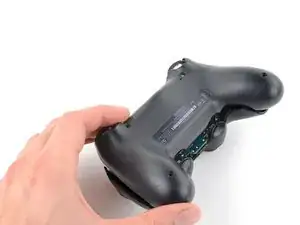

    • Flip the rear case over the top of the controller and lay it down, being careful not to strain the interconnect cable.

  12. nCng6Fw1GK6utOG1
    nCng6Fw1GK6utOG1
    SZUVqTnFbaQPaXbq
    5sWqh1SoSQhBsOFd

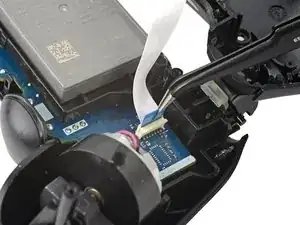

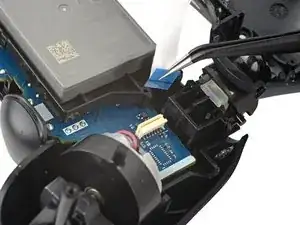

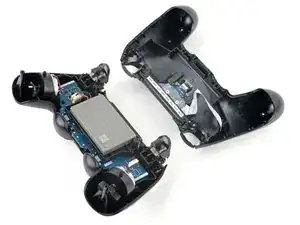

    • Use tweezers or your fingers to remove the interconnect cable by pulling its blue pull tab straight out of the socket.

    • During reassembly, reconnect the cable with its blue pull tab facing the outside of the controller.

  13. bTlYAQTvGVBKbfRV
    bTlYAQTvGVBKbfRV
    4QAyFxp5cWR2HTHW

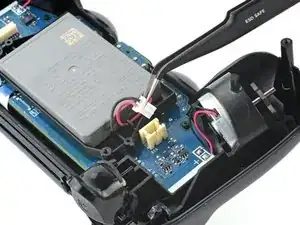

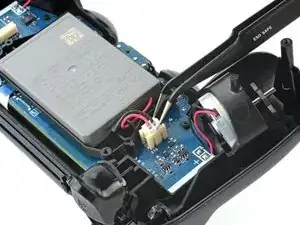

    • Use tweezers or your fingers to grab and disconnect the head of the battery cable from the motherboard.

    • Only pull on the head of the connector—don't pull on the cable itself.

  14. gp4YHL5LMwLLvcoE
    • Remove the battery.

  15. 6M2oWXxExT4ElTXk
    6M2oWXxExT4ElTXk
    FwVprSgDuD6bHjCd

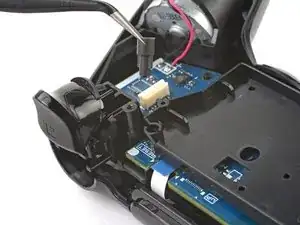

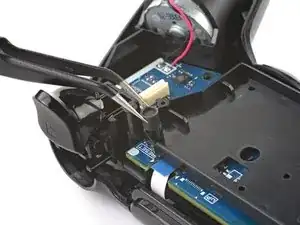

    • Grab and remove the reset button extension from its recess in the battery bracket.

  16. OdOvSwnMxMWM4r1W
    OdOvSwnMxMWM4r1W
    mGrvIhfZTUenHG4w
    R1xtscUk6ivQwlFS

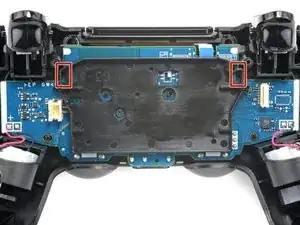

    • Locate the two clips securing the battery bracket to the motherboard.

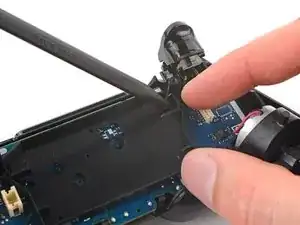

    • Insert the point of your spudger into the opening behind the right bracket clip.

    • Depress the clip to disengage it from the motherboard.

    • Lift up the right edge of the battery bracket.

  17. MpRnnXNR6AkVJPdE
    MpRnnXNR6AkVJPdE
    JknRtEahfZLV1Rus

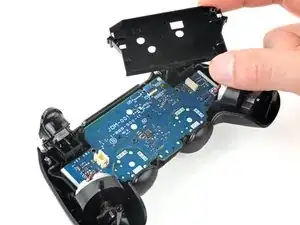

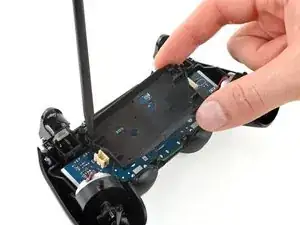

    • Insert the point of your spudger in the opening behind the left bracket clip.

    • Depress the clip to disengage it from the motherboard.

    • Remove the battery bracket.

  18. NtpB2BKLXfOs3ibt
    NtpB2BKLXfOs3ibt
    ocmExNqCRtHeRbfY
    L2nX3BGEGvqBGKhL

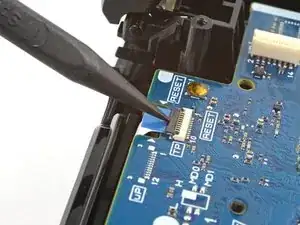

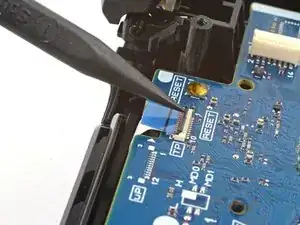

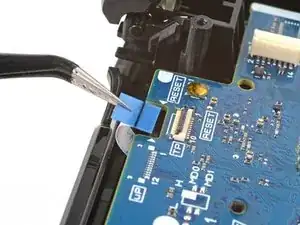

    • Use the point of your spudger to flip up the locking flap securing the touch pad cable ZIF connector.

    • Use tweezers or your fingers to disconnect the cable using its blue pull tab.

  19. 1aIuIlkWcAAVXAKD
    • Use your Phillips screwdriver to remove the 6.4 mm screw securing the motherboard.

  20. ouIZjDmNVCOuSSKT
    ouIZjDmNVCOuSSKT
    bx3YdyxTxUCJetoE
    VohkAs4xxPTNHEhL

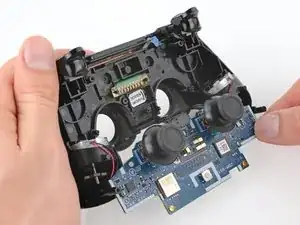

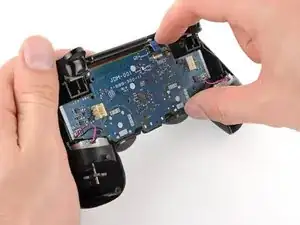

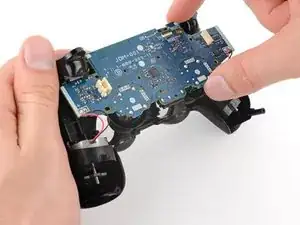

    • Be careful not to strain the vibration motor cables. Follow this guide to re-solder the vibration motors if they break off the motherboard.

    • Lift the motherboard from the midframe.

    • Guide the analog stick covers through their cutouts in the front case.

    • Flip the motherboard over the bottom of the controller, leaving the vibration motor cables attached.

Abschluss

To reassemble your device, follow these instructions in reverse order.
