  1. ImQ6xLsPOyhyLZtY
    ImQ6xLsPOyhyLZtY
    1VTlcYbRF2G2sEus
    • Locate the tie strap holding the wires and cut with a pair of scissors.

    • Use care not to snip the wires.

  2. L4McKDHk3WVFSRSi
    L4McKDHk3WVFSRSi
    jByfMorNCDmOrDrD
    D5rtlOQBNLZRwuVS
    • Make note of the wiring arrangement of each bundle before this step.

    • Using wire cutters, cut each wire as close to the wire connector as possible.

    • Cut the wires in both bundles.

    • To reassemble the cotton candy maker after cutting the wires, follow our rewiring guide.

  3. 1BAVdlbRWLn6RFBZ
    1BAVdlbRWLn6RFBZ
    12AsqBppLkigZDhr

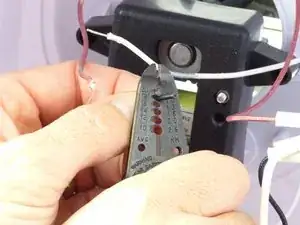

    • Using the wire stripper, remove 1/2 inch of the wire insulation at the end of each wire to expose the bare wire for re-connection.

  4. ExrxGcLaPepMIFG1
    ExrxGcLaPepMIFG1
    CqSoL3rBGHKZdYCy
    BnhpbyYdqq2PUhsB

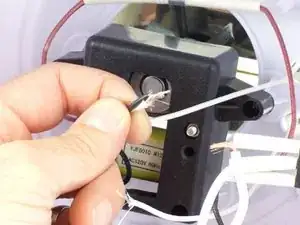

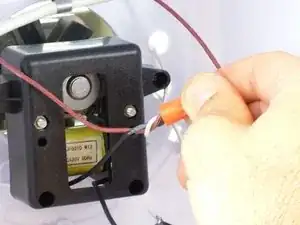

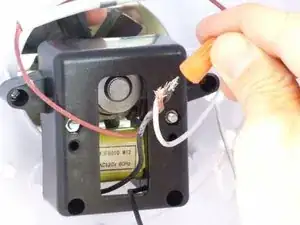

    • Twist the exposed ends of the wires so that they stay together.

    • Push the wire cap onto the exposed ends while holding the wires and twist in a clock-wise direction until it is tight.

    • Repeat this process for both bundles of wires.

    • Do not attempt to power on the device without the wire caps on or mix wires between the bundles.
