Einleitung

In this guide we are going to replace the charging report on the Huawei ascend Y300 android smartphone. Before starting, it is a good idea to prepare an organized area to carry out the repair. It is also helpful to have a way of containing loose screws so they do not become lost. In addition, his guide requires soldering, a “How To” guide is included.

  1. EfbsEYHFLjOgRTXS
    EfbsEYHFLjOgRTXS
    elVnZvp1wdkjxEP6
    • Remove the back plate by hand. There is a small indent on the bottom of the phone to pry open.

  2. hjXMPtux2UjXBfYi

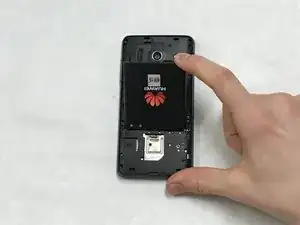

    • Lift up and remove the battery.

  3. OKcANL1DO4lII2pY
    OKcANL1DO4lII2pY
    urADnVV3H6DsisRL

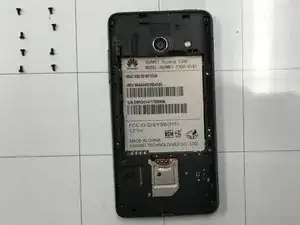

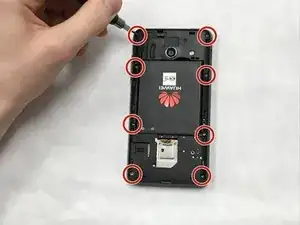

    • Use a T4 Torx screwdriver to remove the 8 screws along the outer edge of the case.

  4. H2vTHZRsubEMbSmG
    H2vTHZRsubEMbSmG
    o5VTCm2KTEY4Bt3C

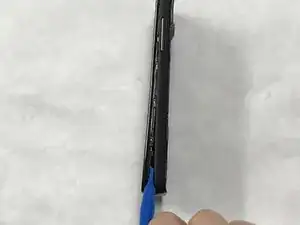

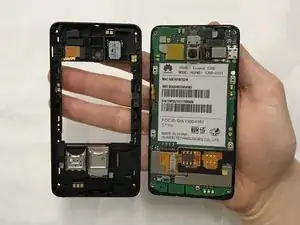

    • Using the plastic opening tool, pry the screen from the casing. Insert the tool between the case and screen to pry the pieces apart.

    • Take care to not damage the screen or case.

  5. ddANNIDmIAtWncRZ
    ddANNIDmIAtWncRZ
    ofkKysZORntnG1HF
Abschluss

To reassemble your device, follow these instructions in reverse order.
