Hubsan X4 107L Flight Controller Replacement

Geschrieben von: Evan Noronha
  • Kommentare: 9
Hubsan X4 107L Flight Controller Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

10 - 30 Minuten

Einleitung

The Hubsan X4 107L is a rugged, entry level quadcopter ideal for RC amateurs learning to fly. This is a complete teardown guide for the X4.

  1. LKTsDM5v2y3BMSiS
    LKTsDM5v2y3BMSiS
    Vb3VyV5ILKlmcReS
    JrXZJBOXfrBXcGNN

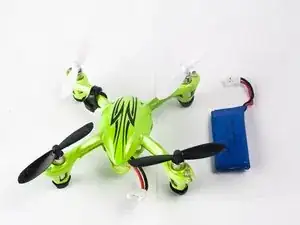

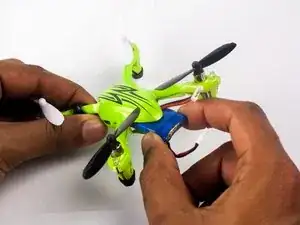

    • Firmly grasp both sides of the battery connector and pull them apart.

    • Grip the battery and slide it out of the quadcopter body.

    • Do not pull on the wires. This could damage the battery or flight controller.

  2. EJFC43KOlm3QSFNH
    EJFC43KOlm3QSFNH
    S4eMwtVfrRKZyYPn
    YwJZGCpyMcx3jAaF

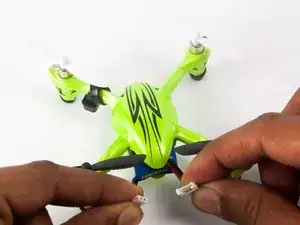

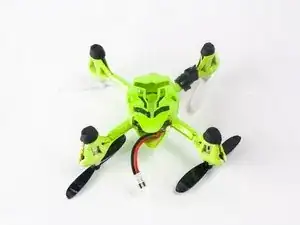

    • Orient the quadcopter so the propellers are on the bottom.

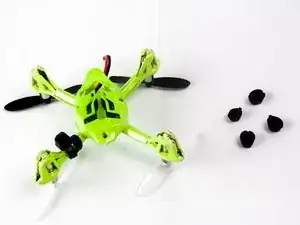

    • Remove the rubber shock absorbers from the motor mounts by hand.

  3. PFZ3xWcoXKqMlUS6
    PFZ3xWcoXKqMlUS6
    hSCNhQtxT2lOMft5
    hEvtWA1IeIN4RRFH

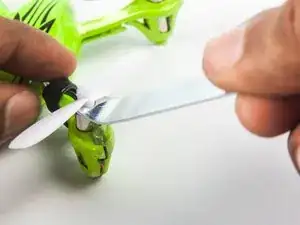

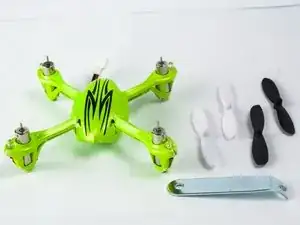

    • Use the prop removal tool to pry the propellers off the motors.

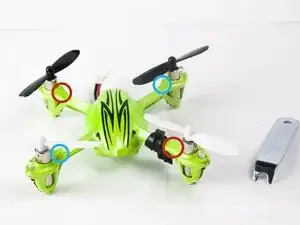

    • Each propeller and motor arm is labeled either "A" or "B" corresponding to whether the motor spins clockwise or counterclockwise. With the quad oriented with the front facing towards you:

    • "A" propellers are on the front left and back right motors.

    • "B" propellers are on the front right and back left motors.

  4. 5F6KBvCRJHV2WBJP

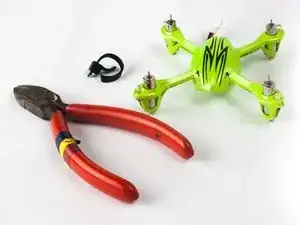

    • Use the wire cutter to remove any customized or aftermarket modifications holding the body together.

  5. LRSdgvk6q3mRj6gg
    LRSdgvk6q3mRj6gg
    T2VMZlhDcqAMSDYK
    5D3aMxSlRqx5SsYx

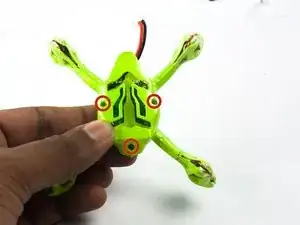

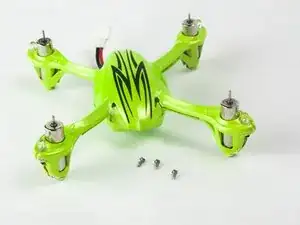

    • Use a Phillips #000 screwdriver to remove the three screws securing the lower body to the frame.

  6. uYkH4X5kFiNxNChY
    uYkH4X5kFiNxNChY
    5piOwpOotAWfjxwN
    NctvGVu6QbrPK3JM

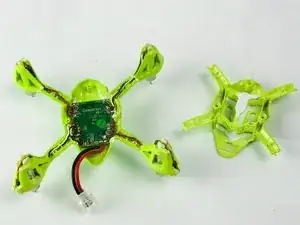

    • Carefully apply upward pressure on one of the motor arms while bending the body downwards to snap the lower body armpice out of place.

    • Repeat this step for all four arms. The lower body will separate from the main frame after snapping the fourth arm out of place.

    • You may need to bend the arm quite a bit to snap it out. This is a durability feature that allows the X4 to "crumple" in a crash without breaking.

  7. Use a soldering iron and solder wick to desolder the four motors from the control board.

    • Use a soldering iron and solder wick to desolder the four motors from the control board.

    • If the connection holds even after removing the solder from the joint, gently pull up on the wire while applying heat to the joint until the wire separates from the PCB.

    • The motor wires are in either black-white or red-blue pairs.

    • CAUTION: Overheating the PCB can damage the traces, making it difficult or impossible to reconnect the components later on. Do not apply too much heat to the board; these traces are especially delicate due to their small size.

  8. Using a technique similar to desoldering the motor wires, disconnect the LEDs from the control board.

    • Using a technique similar to desoldering the motor wires, disconnect the LEDs from the control board.

    • The LED connections use less solder than the motor joints, so solder wick is optional but not required for this step.

    • When reassembling the quadcopter, remember the LED's have red positive leads and bronze negative leads.

    You don't need to desolder the LED if you're moving the flight controller board to a different body.

    cross731 -

    You may not have to, but I highly recommend it! The LEDs come out of the top of the top of the motor arms, while the flight controller drops out of the bottom of the quad. Unless you can push the LEDs down and out of their brackets you'll still need to desolder and deroute them to avoid putting strain on the leads or the flight controller when removing those components.

    Evan Noronha -

  9. MjCvsGnUIwCRf5wu
    MjCvsGnUIwCRf5wu
    1lgWCk2McDVbmoGS
    YbcqqCpLxFGvI5SK

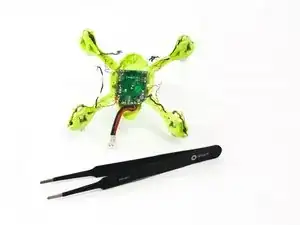

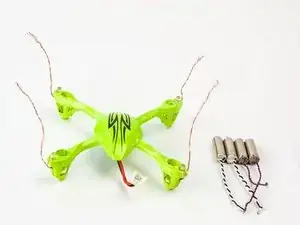

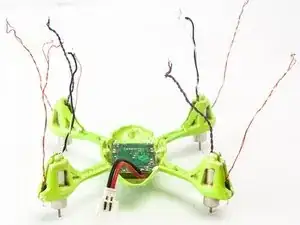

    • Use the tweezers to unthread the motor and LED wires from the quadcopter arms.

    • After unthreading all eight bundles of wires, the LEDs and motors are ready to remove.

  10. MmtU1OF5rxGbGLLn
    MmtU1OF5rxGbGLLn
    sdpEUeeRIweOwVIS
    HWVEhHREBYoPCIhl

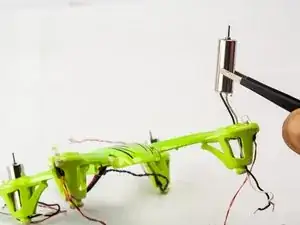

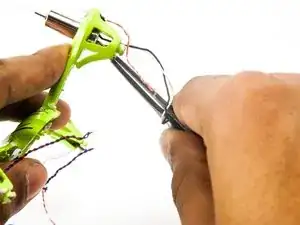

    • Use the tweezers to push the motors out of their housings.

    • Both the motor mounts and motors themselves have a small size variance. If it's difficult to push a motor out, ensure the wires are not caught on the frame and gently apply more force from the bottom until the motor begins to slide.

    • Once the motor is mostly out of the motor mount, grip it from the top and pull it straight out.

  11. jYQHKZLy1EGUhiQX
    jYQHKZLy1EGUhiQX
    51WeaNZBZgpi1o4J
    xojOwjfdwj1GNUEf

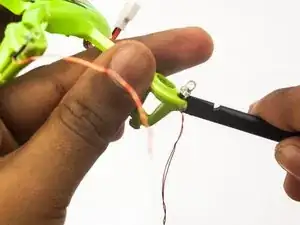

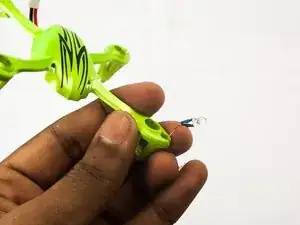

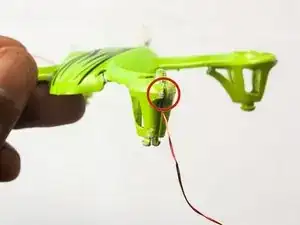

    • Remove the LEDs using the spudger to widen their housing and nudge them up.

    • To free an LED from its housing, insert the spudger into the top section of the gap in the plastic revealing the side of the LED.

    • Simultaneously twist the spudger to widen the housing while pushing the LED up and out of the frame.

  12. iRVyUsJTYM2eEERv
    iRVyUsJTYM2eEERv
    cMvpwb6Ux3MldtxG

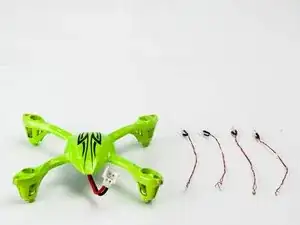

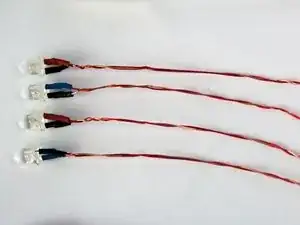

    • Unlike the motors which had colored wiring to differentiate between CW and CCW spin, both the blue and red LEDs have a red positive leads and a bronze negative lead. Upon closer inspection, it looks like the heat shrink on the postive lead matches the LED color.

  13. MEOcQHECJ5B63JeN
    MEOcQHECJ5B63JeN
    lUDFfOAuLZT2JLlH
    HScsMtCBLxoItLDC

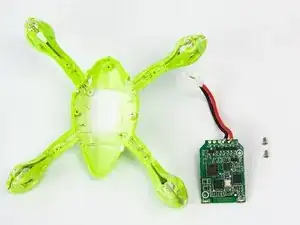

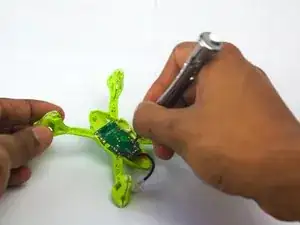

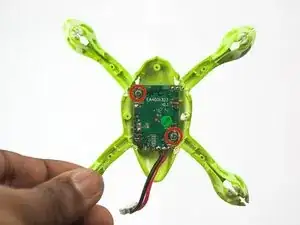

    • Use the PH000 driver to remove the two screws securing the flight controller to the frame.

    • After removing both screws, the flight controller drops freely out of the frame .

  14. hPhp6oMUEA4Rp1At
    hPhp6oMUEA4Rp1At
    i3waG2qN1fYf2Q4B

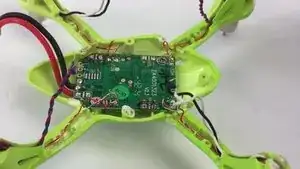

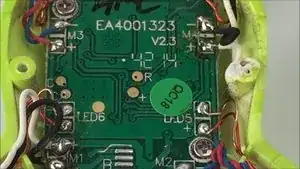

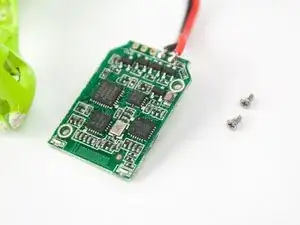

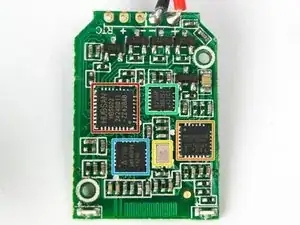

    • The Hubsan X4's Flight Controller (aka Control Board) has a handful of neat components that keep the quadcopter in the air:

    • Hubsan HBS002 Processor

    • Invensense ITG-3050 Integrated Triple-Axis Gyroscope

    • 16.000 MHz Quartz Crystal Oscillator

    • 3210AP 3-Axis Accelerometer

    • A7105 2.4GHz Wireless Module

  15. 21vQ53DxlIkgxMaF

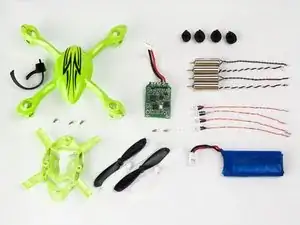

    • All done! To reassemble your X4, follow these steps in the reverse order.

    • This is a good opportunity to test all your LEDs and motors and switch out any faulty components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
