Insignia Flex 8 Antenna Replacement

Geschrieben von: Grace Gerke
  • Kommentare: 2
Insignia Flex 8 Antenna Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace the antenna in your Insignia Flex 8 tablet, enhancing your WIFI connections.

  1. TocOTWUcCbYEqpaK

    • Turn off the power to your tablet to avoid injury.

    • Position the tablet so that the screen is face down and the power button is located in the upper left hand corner.

    • Hold down the power button for five seconds until the tablet powers down.

  2. PnunExArdnU5oKZZ
    PnunExArdnU5oKZZ
    Jbnk6OcybTohmTbd

    • Remove the back casing from the screen by sliding a credit card or a similarly thin but firm object in between the casing and the screen.

    • You may need to use a spudger to initially create separation between the screen and the casing.

    • Run this object around the perimeter of the tablet until there is separation between the casing and the screen.

    • Remove the back casing and set aside.

  3. CNdwaOvlY3vsw5WV
    CNdwaOvlY3vsw5WV
    dvIfFl3JRM6RYLNx

    • Peel tape off of ribbon connectors. Starting at the power button, work clockwise around the tablet.

    hard 2 find.

    Angel Nicholas -

  4. U5AGR2vGrBWnBooy
    U5AGR2vGrBWnBooy
    JOpRkXaYusCPGBEw
    vml6WMMvVxLPWLVI

    • To remove the camera ribbon cable, lift the flap using a spudger.

    • Pull the ribbon directly back to release it.

  5. 3PGrCxPYtq2HOdIw
    3PGrCxPYtq2HOdIw
    AXrKh5RE4qj6Q4vB
    tLSjYuSU6mqEtF15

    • Remove the second ribbon cable by prying up the black flap using a spudger.

    • Pull the ribbon cable horizontally directly away from the battery.

  6. 6QNvcDGdRIIW5LEs
    6QNvcDGdRIIW5LEs
    hktZeoVNO1Y3JXNT
    qvyqxYUKLEhB5JG2

    • Remove the final ribbon cable by pulling back the two black tabs on either side of the ribbon cable.

    • Pull the ribbon horizontally directly away from the battery.

  7. EcOSYaURTmGMsbvY
    EcOSYaURTmGMsbvY
    QXU16cUaZhETO6sw

    • Unscrew the thirteen 4.75mm screws around the perimeter of the tablet using a PH 00 screwdriver.

  8. JpArqutXikqMQZc1
    JpArqutXikqMQZc1
    LyRPWO1D4MvZiVGg

    • Unscrew the four 3.75mm screws and plastic washers using a PH 00 screwdriver.

    • Lift up the circuit board.

  9. FSfprwBhkQdL5Uid

    • Unscrew the final two screws that were underneath the circuit board.

    • These screws are near the charging port and USB adapter.

    • These screws are also 3.75mm and can be interchanged with the second set of screws only.

  10. 2eoGvxJFGYkSyoTJ

    • Lift the circuit board and black internal mounting piece away from the screen.

    • Set the circuit board aside.

    • Be careful of the soldered antenna as you separate the pieces.

    • Be careful of the soldered ribbon that is connected to the power source. This ribbon is fragile.

    PHOTOS and DETAIL of the ANTENNA would help. Are the ANTENNA connections UNSOLDERED? The photo shows a DARKER ribbon cable ~ was that disconnected in a earlier step? Thank you... your post is giving me courage!

    wa6igj -

  11. qWqxjH5hAVyF2hSB

    • Pry black antenna unit away from the back of the screen.

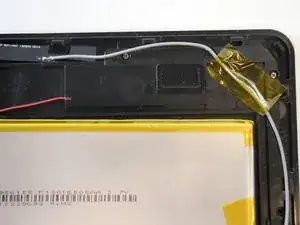

  12. RO2OTbk3VWCN65q3

    • Remove tape from attached wire.

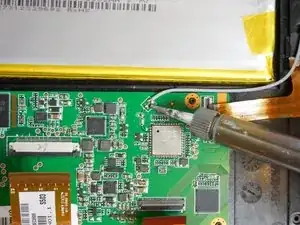

  13. fSRrmW1D6IUlxsZd

    • Desolder antenna wire from circuit board.

    • Desoldering Guide

    • Use caution when using the soldering gun. DO NOT touch any of the other components on the circuit board or the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
